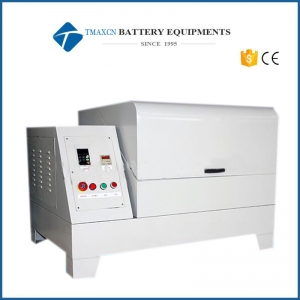

0-10 ℃ Air-Cooling Control Cryogenic Planetary Ball Mill Grinding Machine Grinder
Model Number:
TMAX-Mill-1Type:
Planetary Ball MillDimension(L*W*H):
800*1200*1000 mmNet Weight:
100KGCompliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
0-10 ℃ Air-Cooling Control Cryogenic Planetary Ball Mill Grinding Machine Grinder
Cryogenic planetary laboratory ball milling is composed of planetary ball mill and refrigeration device. Most of materials are heating-up because of friction and exothermal reaction in process of grinding at high speed, which may cause changing of chemical and physical properties of materials and lead to negative effect of grinding. Cryogenic planetary lab ball milling is mainly used for grinding materials which need to control their temperature.
Application Field
The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.
Grinding Materials
Electronic ceramics, structural ceramics, magnetic materials, LCO, LMO, catalyst, fluorescent powder, E-glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramics, nano materials, MLCC, PTC, NTC, media ceramics, fluorescent powder etc.
Performance of cryogenic mill grinder
Transmission Mode |
Gear Drive |
Working Mode |
2 or 4 pots can be used each time |
Max Volume of Load |
Two-thirds of pot's volume |
Volume of Grinding Pot |
0.05L/pot-50L/pot Total Volume: 0.2L-200L |
Feed Size |
Soft and crispy material ≤10mm, Other materials ≤3mm |
Out-put Granularity |
Minimum granularity can be reached to 0.1μm |
Adjusting Mode of Rotate Speed |
Frequency converter with stepless speed reglulation |
Specification
Type |
Total Volume of 4 Pots(L) |
Max Rotate Speed(rpm) |
Power (KW) |
Dimension (mm) |
Mill-1 |
1 |
670 |
0.75 |
770*470*570 |
Mill-2 |
2 |
670 |
0.75 |
770*470*570 |
Mill-4 |
4 |
670 |
0.75 |
770*470*570 |
Mill-6 |
6 |
670 |
0.75 |
770*470*570 |
Mill-8 |
8 |
670 |
1.5 |
900*600*640 |
Mill-10 |
10 |
580 |
1.5 |
900*600*640 |
Mill-12 |
12 |
580 |
1.5 |
900*600*640 |
Mill-20 |
20 |
430 |
4 |
1200*760*920 |
Mill-40 |
40 |
390 |
5.5 |
1400*850*1030 |
Mill-60 |
60 |
260 |
7.5 |
1600*950*1120 |
Mill-100 |
100 |
240 |
11 |
1750*1100*1180 |
Mill-200 |
200 |
190 |
18.5 |
1920*1400*1350 |
Material Data for Grinding Jars/Balls
