1100mL Vacuum Planetary Centrifugal Mill & Mixer with Two cups & Independent Speed Controlled
Model Number:
TMAX-TP1100SDimension(L*W*H):
580L*700W*800HNet Weight:
160KGCompliance:
CE certificateWarranty:
2 years warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

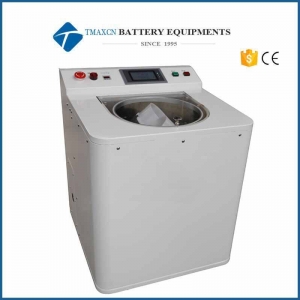

1100mL Vacuum Planetary Centrifugal Mill & Mixer with Two jars & Independent Speed Controlled
The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.
Specification
|
Name |
1100mL Vacuum Planetary Centrifugal Mill & Mixer
|
|
Equipment model |
TMAX-TP1100S
|
|
Container Capacity |
1100ml*2（Cup) |
|
The optimal capacity of mixing material |
100-700ml*2（Cup) |
|
Operation Type |
Human-machine Interaction Mode |
|
Revolution Speed |
100-2000RPM |
|
Rotation Speed |
Invariablenes |
|
Vacuum |
60/Minute, APROX.-98KPa |
|
Multi Parameter Group |
Multi Parameter Group |
|
Protection |
Door Cover, Breakdown, Overload |
|
Dimension(mm) |
580L*700W*800H |
|
Voltage |
0.5-1.0KW,220V |
|
Weight |
160KG |
|
Power Supply |
（Uniphase),AC220V.50-60Hz |
|
Clamp |
Option |
|
Syringe |
Max300CC |
