18650 Quartz Split Type Test Cell For Research
Model Number:
TMAX-SC-18650Compliance:
CE certificateWarranty:
2 Years Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

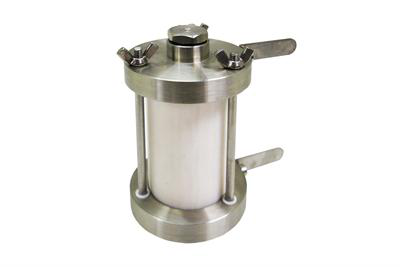

18650 Split Type Test Cell For Research
TMAX-SC-18650 Split Type Test Cell is designed for testing 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrodes easily and quickly.
SPECIFICATIONS:
|
Model |
TMAX-SC-18650-TF |
TMAX-SC-18650-Qz |
|
Dimensions (Dia. x Height) |
1. ID of PTFE Body (liner): 18mm 2. Height of PTFE Body: 65mm |
1. ID of Quartz Body (liner): 19mm 2. Height of PTFE Body: 65mm |
|

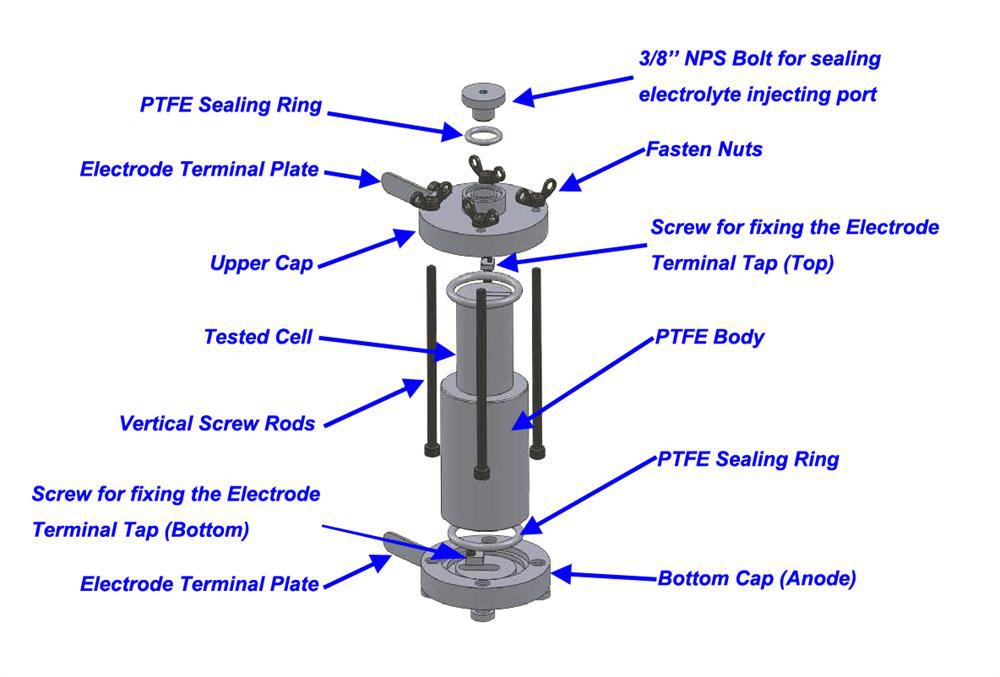

Material |
1. Caps: Full 304 Stainless steel end caps 2. Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 270ยบC 3. O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings |

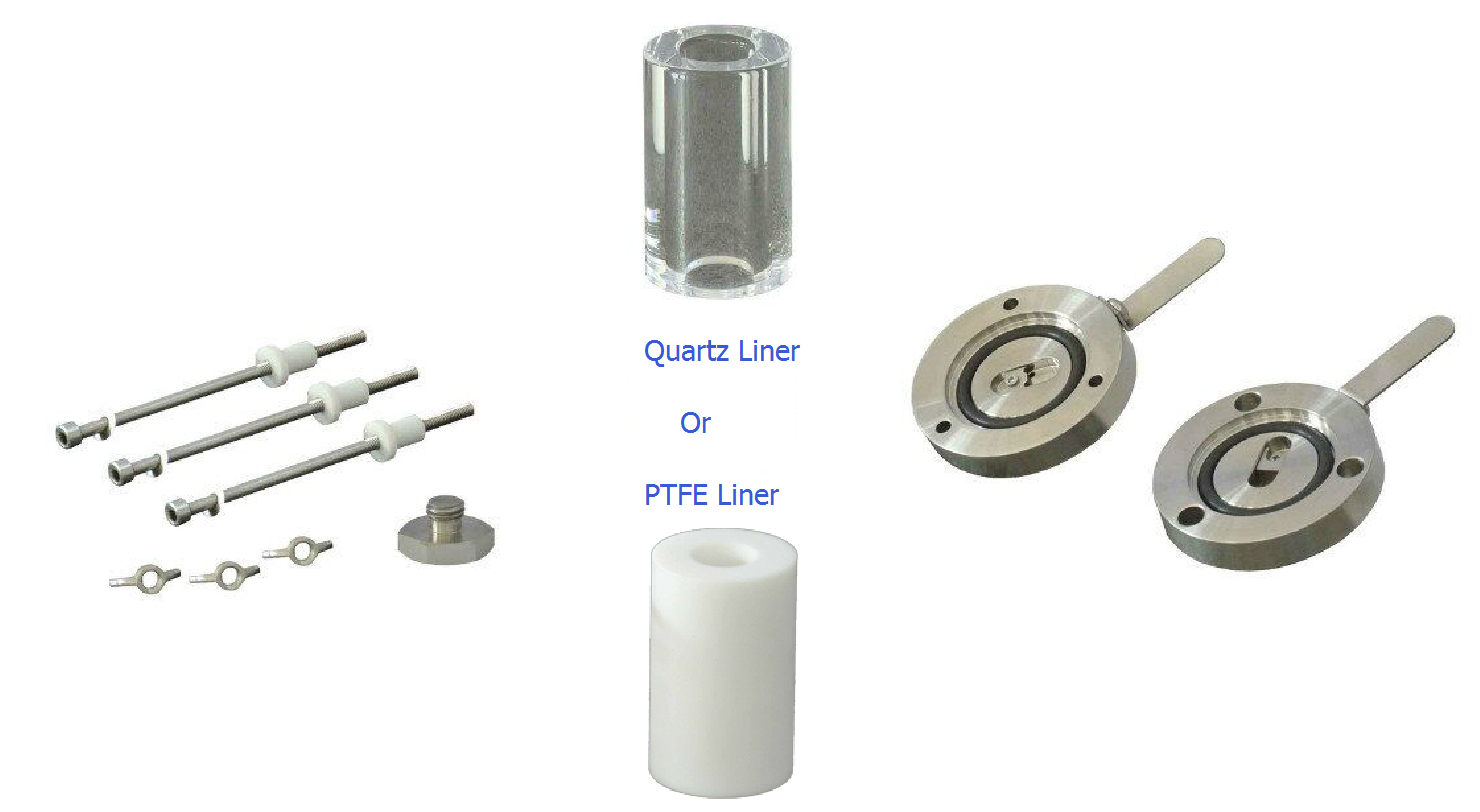

1. Caps: Full 304 Stainless steel end caps 2. Body liner: Transparent quartz body allows you perform In-situ Laser Raman Spectroscopy. 3. O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings |
|
Design |
1. Easy assembling with only four cap mounting screws 2. Easy to separate for cleaning after the test 3. Space saving, compact design allows you put it into the glove box |
|
