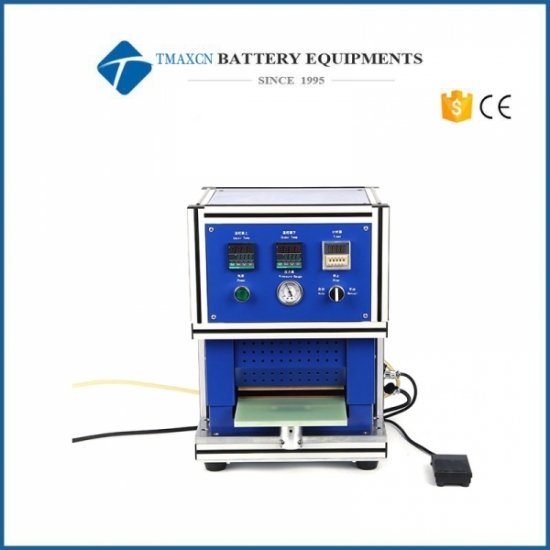

200-400mm Width Battery Heat Sealer Machine for Pouch Cell Top and Side Sealing

  • Model Number:

    TMAX-SFZ200
  • Dimension(L*W*H):

    200-400mm Width
  • Net Weight:

    120 lbs
  • Compliance:

    CE certificate
  • Warranty:

    1 Year with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

200-400mm Width Pouch Cell Heat Sealer Machine for Pouch Cell Top and Side Sealing


Features

TMAX-SFZ200 is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

It can prepare the pouch cell for the injection of an electrolyte by sealing the side and top of the pouch
cell with the tab.


Working principle

It is transmitted to the head (copper) through the resistance heating tube, and acts on the packaging
material (aluminum plastic film) of lithium battery by using the heat conduction effect. Under a certain
pressure, it is heated to become soft and close to the melting state to complete the compression fusion joint. The top seal and side seal can be realized without changing the mold.


Main features

1. Unique safety protection and anti scalding design, the temperature of upper and lower ironing head can be adjusted by the button on the temperature controller panel;
2. The head is made of copper material, which has good heat transfer effect, saves power consumption, improves working efficiency and saves energy compared with similar products;
3. The pressure of upper and lower heads can be adjusted by pressure regulating valve to meet the
requirements of different process parameters;
4. The upper and lower heads are driven by air cylinder and guided by two linear guide sleeves, which can move up and down flexibly and guide accurately, so as to ensure the parallelism requirements of products after edge sealing;
5. It can be used for batteries of different specifications, and the adjustment is simple and convenient, and there is no need to adjust and replace the head;
6. The frame made of aluminum profile has beautiful appearance; the sheet metal adopts solid geometry design, which is simple and beautiful;

7. Small size, smooth and even sealing mark and beautiful edge sealing appearance;


Specification

Maximum seal length

200mm~400mm(can be customized)

Seal width

5mm±0.4(3~10mm can be customized)

Side sealing thickness

60~300um

Thickness of top tab edge sealing

200~700um

Heat sealing temperature

RT~250℃ adjustable

Temperature accuracy

±2℃。

Sealing  time

0-99s adjustable

Seal thickness accuracy (mm)

The thickness difference between any two points is less than 15um

Safety device

Equipped with protective device to prevent high temperature scald.

Operation mode

The equipment has the function of automatic and manual operation.

Flexibility

The equipment is easy to clean and replace the copper mold.

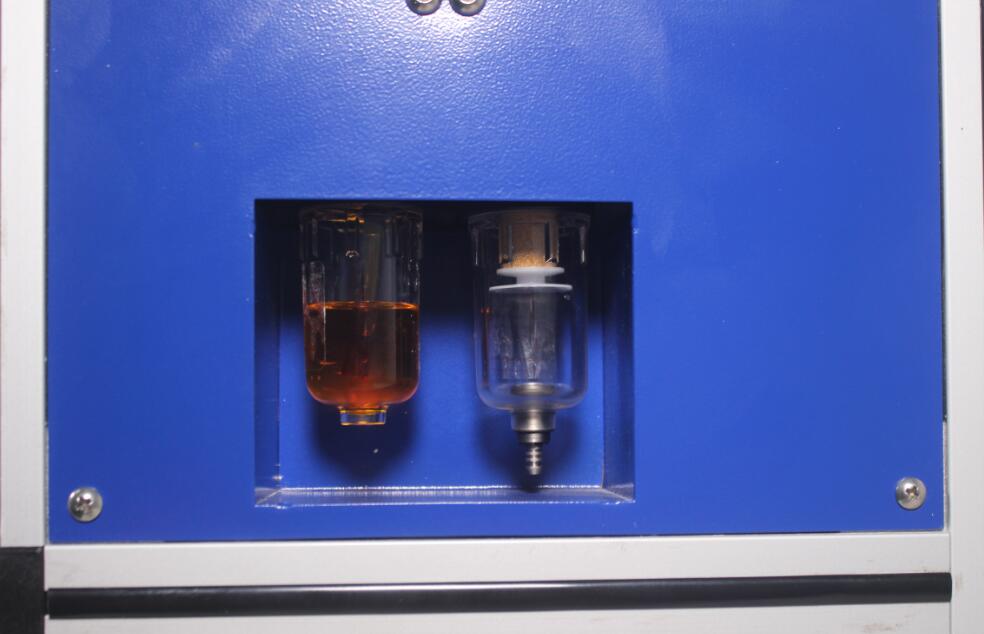

compressed air

5~8kg/cm2

Working speed of air compressor

≥400 times/hour

Power Supply

AC220V/110V, 50/60Hz

Power

0.5KW

Dimensions

L430x W330x H480mm

Equipment weight

35Kg

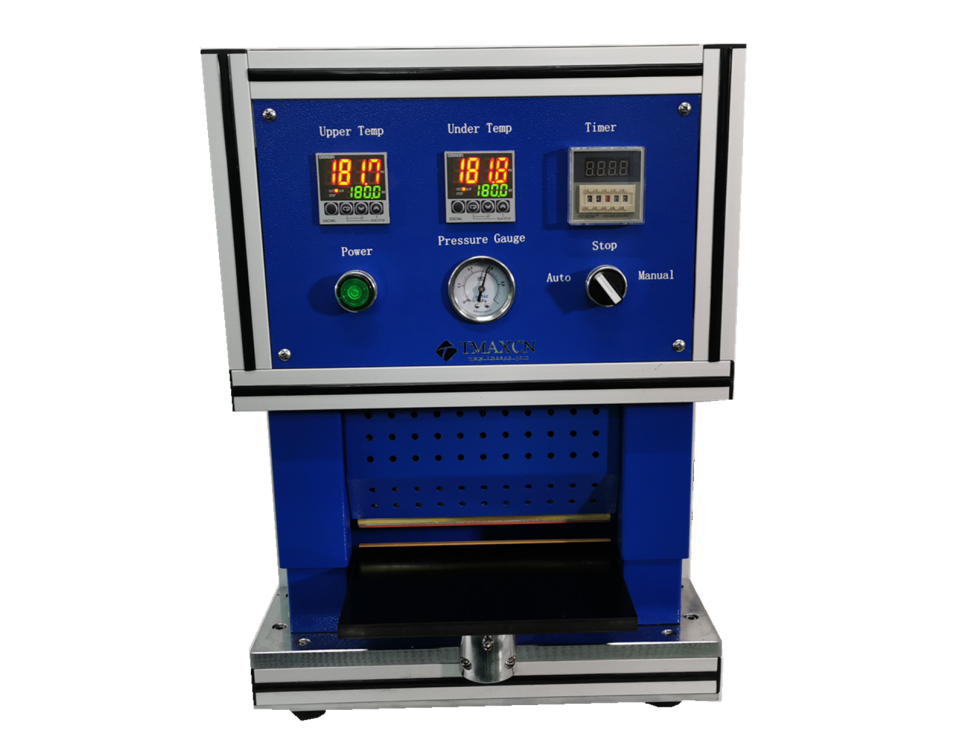

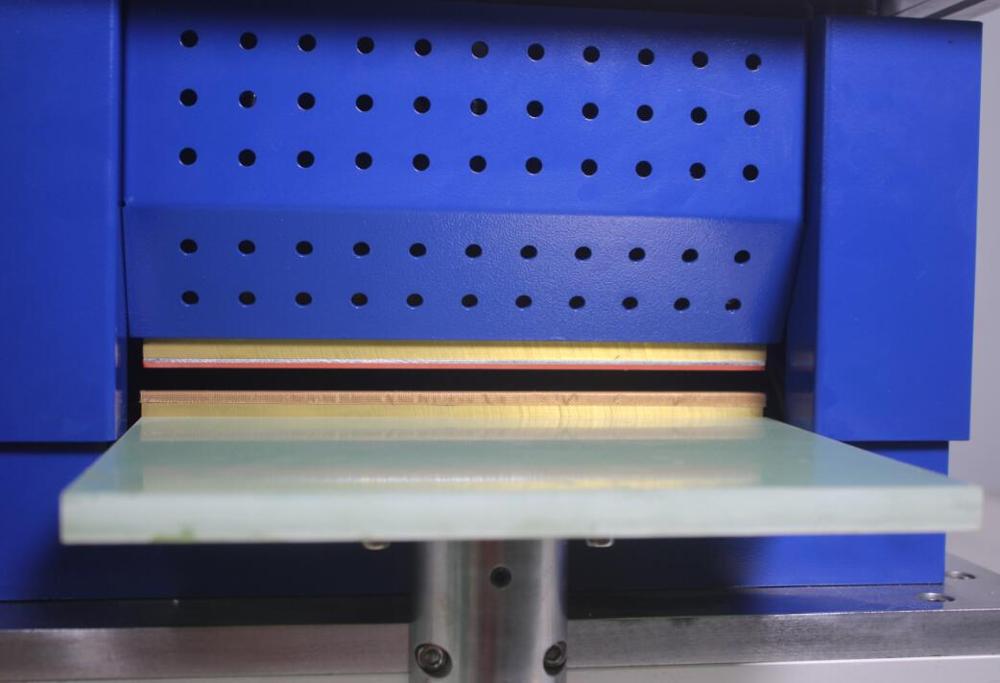

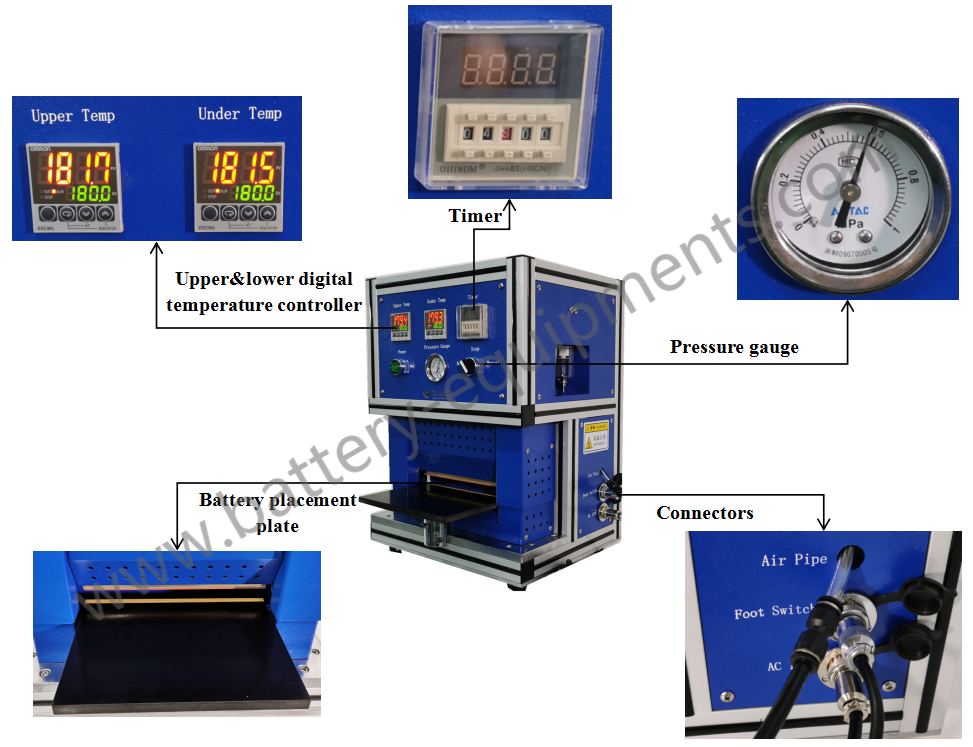

heat sealer
