30L Convection Drying Oven with Digital Temperature Controller
Model Number:
TMAX-DZF-6020Type:
Convection Drying OvenDimension(L*W*H):
300*300*275mm It can be customizedCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

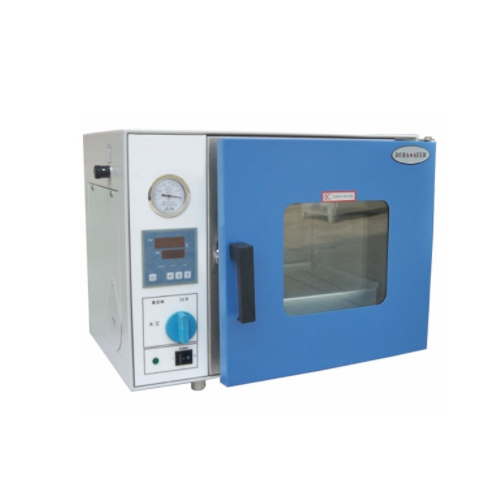

30L Convection Drying Oven with Digital Temperature Controller
1 The Vacuum Oven dzf 6020 Is a laboratory vacuum oven mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.
2 The Vacuum Oven dzf 6020 for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.
|
Model |
Convection Drying Oven DZF 6020 |
|
Source voltage |
AC 220V/110V, 50HZ |
|
Power |
600W |
|
Warranty |
Two Year Limited Manufacture Warranty with Life Time Support |
|
Temperature range |
RT+10-250℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Vacuum degree |
-0.1MPa |
|
Inner box size(L*W*H) |
300*300*280mm |
|
Dimension(L*W*H) |
600*450*450mm |
|
Temperature controller |
High precision microcomputer temperature controller, accurate temperature control, working temperature can be set, error alarm function |
|
Inner box material |
stainless steel |
|
Outside shell material |
High quality cold-rolled steel plate electrostatic spray |
|
Box door |
Toughened hulletproof double glass door |
|
Safety device |
With over temperature protection, grounding etc |
|
Shelf |
1pcs 1 Solid stainless steel shelf, guarantee the oven temperature 2 Mesh stainless steel shelf For air cycle |
|
Model |
DZF-6021 |
DZF-6051 |
DZF-6020 |
DZF-6050 |
DZF-6090 |
DZF-6210 |
DZF-6250 |
|
Temperature range |
RT+10-220℃ |
RT+10-250℃ |
|||||
|
Temperature fluctuation |
0.1℃/±0.5℃ |
||||||
|
Vacuum degree |
-0.1MPa |
||||||
|
Source voltage |
AC220V 50HZ |
AC380V 50HZ |
|||||
|
Power |
500w |
1000w |
500w |
1000w |
1400w |
2100w |
3000w |
|
Inner box size |
300x300 x280 |
410x380 x350 |
300x300 x280 |
415x370 X350 |
450x450 X450 |
560x640 X600 |
700x600 x600 |
|
Dimension |
580x450 x450 |
720x525 X535 |
580x450 x450 |
720x525 X535 |
615x590 X1470 |
720x820 X1750 |
1050x760 X910 |
|
Shelf |
1 |
2 |
1 |
2 |
2 |
3 |
4 |
|
Inner box material |
galvanized sheet |
stainless steel |
|||||
|
Temperature controller (standard) |
microcomputer digital display controller |
||||||
|
Ambient temperature |
+5~40℃ |
||||||
|
DZF-6090 & DZF-6210 equipped with vacuum pump.Rest models do not with vacuum pump . |
|||||||
