4 mm Width Nickel Tab with Adhesive Polymer Tape

  • Model Number:

    TMAX-Tab4
  • Dimension(L*W*H):

    0.1 mm and 0.2 mm Thickness
  • Compliance:

    CE certificate
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

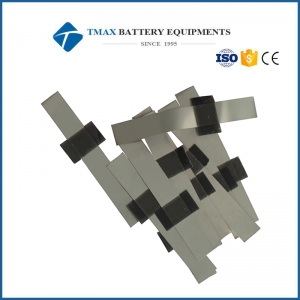

4 mm Width Nickel Tab with Adhesive Polymer Tape


SPECIFICATION

Material: Nickel 99.99%
Length: 48mm    Length can be customized
Width: 4mm   Width can be customized

Thickness: 0.09mm in Aluminum Tab      Thickness can be customized
                  0.28mm in Aluminum Tab with Adhesive Polymer Tape

Adhesive Polymer Tape is attached on the tab for immediate hot sealing



Application: Connect to anode current collector as polymer battery negative terminal


Net Weight: 160mg/pcs
Gross Weight: 18g (Tabs with Box)
Max. Loading Current: 3A



              Nickel Tab

              Nickel Tabs




 battery equipment
