50000m3/H NMP Solvent Recovery System For Cathode Coating System For Lithium Prismatic Battery Production
Model Number:
TMAX-YK-NMP-50000Compliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western Union
50000m3/H NMP Solvent Recovery System For Cathode Coating System For Lithium Prismatic Battery Production
Chapter I Equipment Introduction
1、NMP Working principle of recovery system
NMP recovery system uses the physical characteristics of NMP and adopts multi-stage condensation to fully condense and realize recovery. The temperature of the waste gas discharged from the coater is about 120 ℃. The temperature can be reduced to about 25 ℃ through the recovery system, which can cool and recover more than 95% of NMP.
2、System characteristics
2.1、The effect is good, and the solvent recovery can reach more than 95%; The purity of recovered NMP waste liquid reaches more than 80%;
2.2、Energy saving. The energy consumption of the system itself is only 4.0kw/h (taking 50000m3/h air volume and air duct length less than 20m as an example). So far, it is the equipment with the lowest power consumption in all NMP recovery systems, and the product is recommended by the national environmental protection department;
2.3、Long term stability: the NMP recovery system produced by our company can ensure that its performance (recovery rate, recovery concentration) will not be reduced within 3 years, and its stability will reach the best state;
2.4、The safety performance is good. The equipment has special fault handling settings. Even if there is a sudden fault, there will be no backflow, suffocation and other accidents that affect the normal operation of the coater.
3、Technical requirement
Item
Unit
Specification
1)Exhaust air volume
m3/h
50000(Exhaust air volume of coater)
2)Air outlet temperature
℃
120℃
3) NMP consumption
kg/h
Above 45
2、NMP Technical requirements for recycling
1)rate of recovery
≥95%
2) Recovery concentration
≥80%
3) NMP exhaust emission concentration after recovery
PPM
Below 200
3、Material of auxiliary facilities
1)Ventilation duct
White iron pipe
300mmx300mmx0.0.6mm
4、Process performance requirements
SN
Item
Specification
1
Energy saving performance
Use tube fin heat exchanger to save energy consumption.
2
Sealing performance
All connections in the unit are sealed with high-temperature silica gel and high-temperature glue. The air leakage rate at the connection of each functional section is less than 0.5%.
3
Linkage performance
Linked with the coater separately, the unit can operate under the best working conditions, and the recovered NMP concentration is more stable.
4
Others
After the equipment stops running, NMP cannot flow back to the air inlet pipe, and when the NMP recovery system fails, it will not affect the use of the coater.
Chapter II System Design
1、Design parameters
Exhaust temperature:120℃
Treatment air volume:50000m3/h
Rate of recovery:≥95%
Concentration of recovered waste liquid:≥ 80%
Exhaust emission concentration:Below 200 ppm
2、Technological process

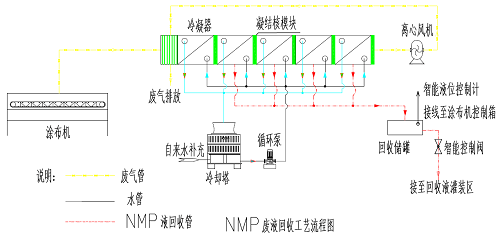

The process flow chart is as follows:
3、Process description
3.1、Heat exchange treatment
The temperature from the coater is about 120 ℃. After heat exchange, the waste gas of about 100 ℃ enters the NMP condenser to realize condensation and recovery of NMP.
3.2、Equipment size
The size of the main retractor is:2200mm x 1650mm x 2100mm (L*W*H);
Size of cooling water tower:Base diameter:1200mm, Height:1900mm;
Reservoir size:1400mm x 1200mm x6000mm(L*W*H)
(Note: subject to actual production); The total weight is about 1.2 tons, and the operating weight is about 3.0 tons.
The air duct of the recovery equipment adopts white iron leather pipe with the size of:300mm x300mm x 0.6mm(Thickness).
The connection between the pipe section and the pipe section is sealed with high-temperature silica gel.
PPR pipe is adopted for water pipe.

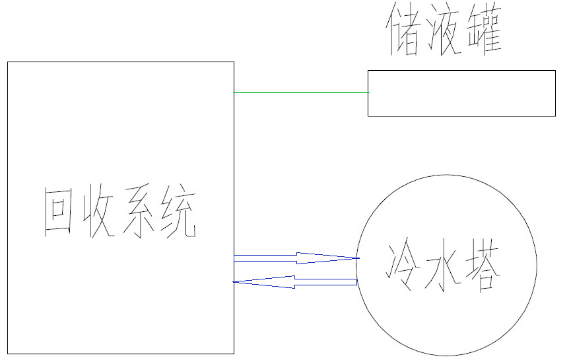

3.4、Layout plan of recycling system
3.5、Recovery process pipeline diagram

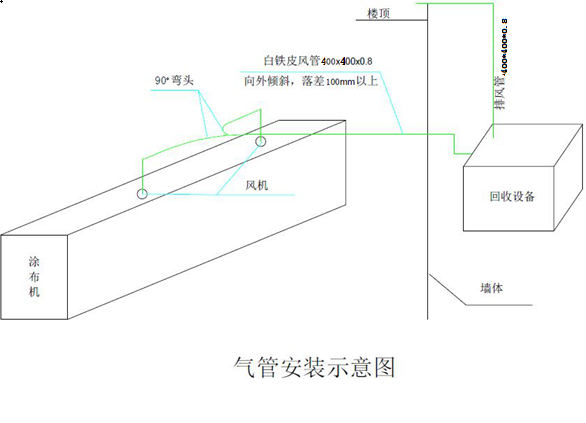

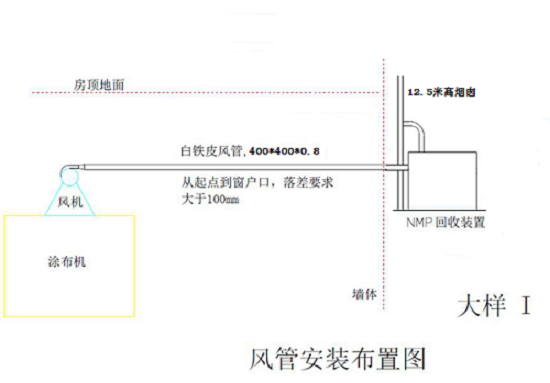

3.6 Air duct installation layout diagram
4、Main equipment of the system
SN
Organization name
Part name
Material
Specification
Manufacturer
1
Cooling solvent recovery section
(condenser)
Cooling coil 1
Aluminum wing & copper tube
XYZ-500-6
TMAX
2
Cooling coil 2
Aluminum wing & copper tube
XYZ-500-8
TMAX
3
TMAX
4
TMAX
5
Liquid blocking plate
Corrosion resistant stainless steel
TMAX
6
Effusion disk
Corrosion resistant stainless steel
TMAX
7
Recovery tank
Corrosion resistant stainless steel
TMAX
8
Liquid level pump
Anticorrosive materials
Xiaoyezi
9
Forced draft fan section
Manual air valve
Anticorrosive materials
Xiaoyezi
10
Centrifugal fan
Anticorrosive materials
7KW
Xinfeng
11
Water cooling circulation section
cooling tower
20T
Liangyuan
12
water circulating pump
2P
Chinese Trumpet Vine
13
5、Electrical design
5.1 electrical part (function and implementation mode)
Schneider air switch, AC contactor and thermal relay are adopted; Electric regulating air valve; Chint phase sequence protection relay and time relay.
5.2 Safety Control
(1) Design automatic control system and interlocking system, equipped with temperature alarm.
(2) NMP waste liquid transmission adopts the intelligent mode of liquid level detection and alarm. The liquid storage tank is placed on the roof, and the anti-corrosion aluminum-plastic pipe is connected to the place designated by the customer. The liquid level detection is used in the liquid storage tank, and the alarm is realized when the liquid level reaches the specified height. The alarm small electric box device is placed at the head position of the coater and the waste liquid filling position respectively, and then the waste liquid on the roof is transported to the downstairs filling barrel through the manual valve at the filling position.

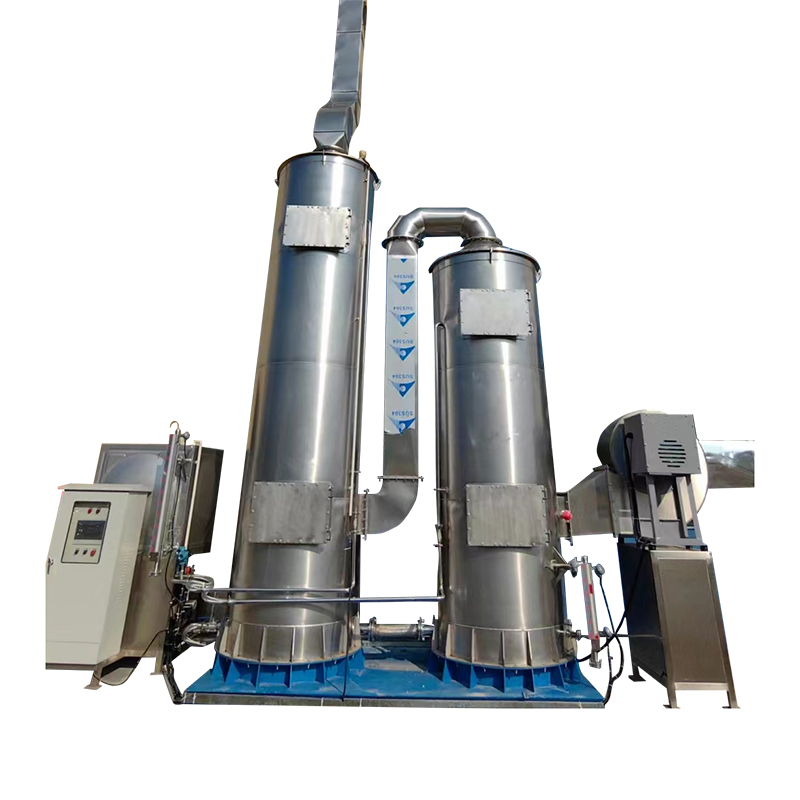

6. Product Images:
