5V2A High Precision 8 Channel Battery Capacity Tester Adjustable Cell Holders & Software
Model Number:
TMAX-5V2AInput Power:
200WDimension(L*W*H):
197D x 245W x 60HNet Weight:
About12kgCompliance:
CE certificateWarranty:
2 Years with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

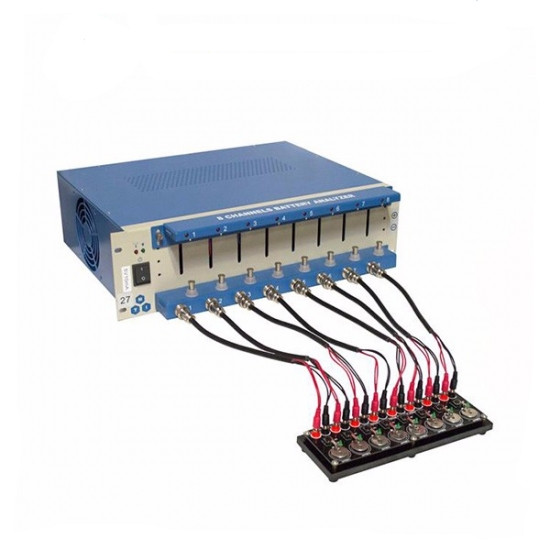

5V2A High Precision 8 Channels Battery Capacity Tester Adjustable Cell Holders & Software
Battery testing equipment function
1, TOB series BTS is suitable for high accuracy battery detection system:
the comprehensive performance of lithium polymer, lithium ion, nickel metal hydride, nickel cadmium,
lead acid battery test battery materials; research; the formation and separation of small batch
production capacity of battery; notebook computer battery test.
2, The hardware of the system is stable and reliable, each channel has independent
constant current and constant voltage source.
Battery testing equipment technical indicators
The input power |
220 V ±10% / 50 Hz |
Range of output current |
±2A |
Voltage measuring range |
5V |
Input impedance |
≥10mΩ |
Power |
200W |
Current measurement accuracy |
±(0.2% of reading + 0.1% of range) |
Voltage measurement accuracy |
±(0.1% of reading + 0.05% of range) |
Current/voltage/time resolution |
0.1mA /0.1mV/s |
Circulation measurement range |
1-9999times |
Data recording conditions |
TimeΔt (1 ~900s);VoltageΔV (5-5000mV); Electric current ΔI (1.5-3000mA) |
The number of channels per unit |
8 |
Volume |
197D x 245W x 60H (unit:mm) |
Weight |
About10kg |
