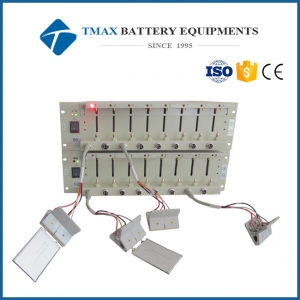

5V2A High Precision 8 Channel Battery Capacity Tester Adjustable Cell Holders & Software
Model Number:
TMAX-5V2AInput Power:
200WDimension(L*W*H):
197D x 245W x 60HNet Weight:
About12kgCompliance:
CE certificateWarranty:
2 Years with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
5V2A High Precision 8 Channels Battery Capacity Tester Adjustable Cell Holders & Software
Battery testing equipment function
1, TOB series BTS is suitable for high accuracy battery detection system:
the comprehensive performance of lithium polymer, lithium ion, nickel metal hydride, nickel cadmium,
lead acid battery test battery materials; research; the formation and separation of small batch
production capacity of battery; notebook computer battery test.
2, The hardware of the system is stable and reliable, each channel has independent
constant current and constant voltage source.
Battery testing equipment technical indicators
|
The input power |
220 V ±10% / 50 Hz |
|
Range of output current |
±2A |
|
Voltage measuring range |
5V |
|
Input impedance |
≥10mΩ |
|
Power |
200W |
|
Current measurement accuracy |
±(0.2% of reading + 0.1% of range) |
|
Voltage measurement accuracy |
±(0.1% of reading + 0.05% of range) |
|
Current/voltage/time resolution |
0.1mA /0.1mV/s |
|
Circulation measurement range |
1-9999times |
|
Data recording conditions |
TimeΔt (1 ~900s);VoltageΔV (5-5000mV); Electric current ΔI (1.5-3000mA) |
|
The number of channels per unit |
8 |
|
Volume |
197D x 245W x 60H (unit:mm) |
|
Weight |
About10kg |
