900mL Vacuum Planetary Centrifugal Mixer with Two Tanks & Independent Speed Controlled
Model Number:
TMAX-TP900SCompliance:
CE certificateWarranty:
2 years warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western Union

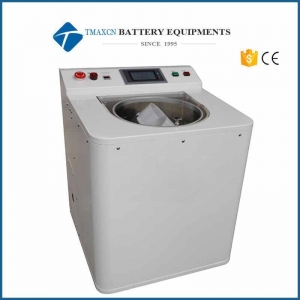

900mL Vacuum Planetary Centrifugal Mixer with Two Tanks & Independent Speed Controlled
The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.
Applicable industries: semiconductor lighting (LED), photovoltaic, lithium batteries, capacitors, fine chemicals, etc
Applicable materials: various particles (fluorescent powder, chemical powder, metal micro particle, etc.), liquid glue (silica gel, various adhesives, conductive adhesives, printing ink, etc.), metal paste (silver paste, aluminum paste, etc.).
Features
1. When the materials rotate in the container and vacuum at the same time, the high viscosity materials can be stirred, dispersed and defoaming in a few minutes.
2. Spiral bevel gear transmission: its stable and low noise mechanical transmission. The machine has low failure rate and long service life.
3. Overall, the swivel arm is easy to maintain. Our company can provide assembly parts to ensure that customers work 24 hours a day.
4. No pollution and no damage to material properties.
5: Standard machine 0 ~ 2000 rpm, high speed and high efficiency. Special requirements can be customized up to 3000 rpm machine.
6: According to the requirements of customers, we can customize all kinds of fixtures to meet the requirements of different containers.
Specifications
Model |
TMAX-TP900S |
Container Capacity |
900ml*2 |
The optimal capacity of mixing material |
30-550ml*2 |
Operation mode |
Touch screen controller |
Revolution Speed |
100-2000RPM(actual highest speed 3000RPM or 5000RPM optional) |
Rotation Speed |
Invariablenes |
Vacuum |
60L/minute, APROX.-98KPa |
Program storage |
5 storage programs (each program can be set to five steps) |
Protection |
Door cover, breakdown, overload |
Dimensiom(mm) |
690L*580W*620H |
Power |
0.5-1.0kW |
Voltage |
220V/110V, 50/60Hz |
Machine weight |
102KG |
Clamp |
Optional |
Syringe |
Max. 50CC |
Selectable models
For more model selection info, please check HERE
Types |
Model |
Single cup volume |
Total volume |
Single-cup mixer (fixed rotation and revolution speed ratio) |
TMAX-TP-300 |
150ML |
150ML |
TMAX-TP-900 |
450ML |
450ML |
|
Two cup mixer (fixed rotation and revolution speed ratio) |
TMAX-TP-300S |
150ML |
300ML |
TMAX-TP-900S |
540ML |
1080ML |
|
TMAX-TP-1500S |
1000ML |
2000ML |
|
TMAX-TP-3000S |
1800ML |
3600ML |
|
TMAX-TP-4000S |
2400ML |
4800ML |
|
TMAX-TP-6000S |
4000ML |
8000ML |
|
Two cup mixer (rotation and revolution speed ratio, 10~100 adjustable) |
TMAX-TP-300SS |
150ML |
300ML |
TMAX-TP-900SS |
540ML |
1080ML |
|
TMAX-TP-1500SS |
1000ML |
2000ML |
|
The above capacity is the capacity when the cup is placed in the machine and the material is 5mm away from the cup mouth Selection is mainly to see whether the maximum mixing capacity meets your requirements. We can provide various mixing cup smaller than the machine model to meet the requirements of large machine experiment and small capacity. We also accept custom-made cup and provide suitable fixture accordingly. |
In addition to the standard mixing cup, the machine can also customize fixtures for customers to use their own containers.
