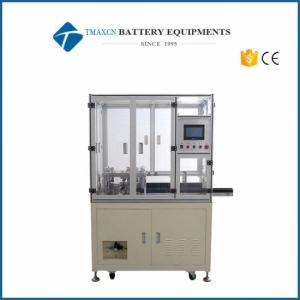

Auto Crimping Machine for Cylindrical Battery Production
Model Number:
TMAX-crimping003Dimension(L*W*H):
W1200mm*D690mm*H1765mmNet Weight:
800lbsCompliance:
CE certificateWarranty:
Two Years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Auto Crimping Machine for Cylindrical Battery Production
It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.
Advanced Features:
· Efficient batch loading/unloading mechanism with case feeding conveyor
· Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable & consistent sealing quality
· Crimping speed and pressure is adjustable
· User-friendly human-machine interface with PLC touch screen control
· Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment
SPECIFICATIONS:
|
Working Voltage |
110/220V AC, 50/60Hz, three Phase |
|
Max. Power Consumption |
4KW |
|
Driving Force |
Penumatic, 0.5 - 0.8 MPa compression gas is required |
|
Compatibility
|
Standard crimping capability for 18650 case |
|
Control
|
User-friendly HMI with PLC touch screen control ensures easy program setup
|
|
Crimping Force
|
Upto 6kgf/cm²
|
|
Productivity
|
· 30 pieces per minute · Material feeding conveyor is able to load upto 22 pcs per batch |
|
Warranty
|
· One year limited with lifetime support · Parts rusted without regular cleaning and maintenance are not covered |
|
Product Dimensions
|
W1200mm*D690mm*H1765mm |
|
Net Weight
|
800 lbs
|
