Automatic Roll to Roll Electrode Coating Machine

  • Model Number:

    TMAX-DYG-135
  • Input Power:

    4000W
  • Dimension(L*W*H):

    10 - 200 mm width
  • Net Weight:

    About 450kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

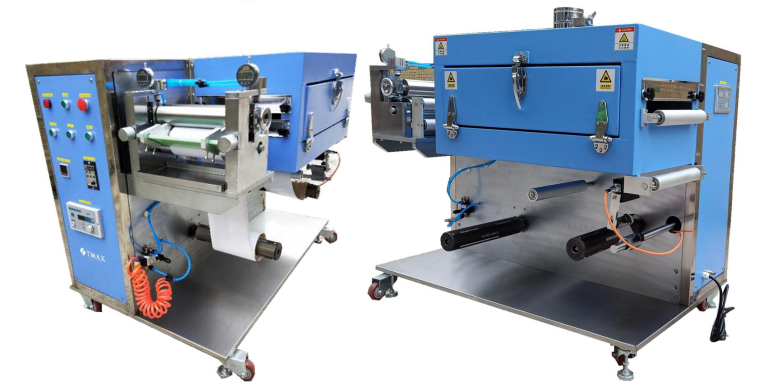

Automatic Roll to Roll Electrode Coating Machine


This experimental continuous coater is specially designed for the continuous coating process of positive and negative electrode of lithium-ion batteries, and is suitable for lithium battery test line and small batch production.


Main Structure

1. Coating drying control system, including: electric drive control system, PID drying temperature control system;

2. 1 set of circulating fan regulator, 1 set of air inlet regulator, 1 set of baffle and other accessories;

3. One set of coating device: including one coating steel roll and one comma knife;

4. One set of drying device: the length of drying box is 0.8m;

5. One set of winding device:


Specifications:

The thickness of the running substrate

 aluminum foil 11 ~ 30um; copper foil 8 ~ 30um;

The maximum width of coating

 280mm

The maximum speed of mechanical transport

 5m / min; Speed accuracy ± 0.1m / min

Coating speed

>5m/min

Suitable for slurry viscosity

 1500~15000 Cps Suitable for coating single-sided dry thickness 30~200μm

Coating accuracy

 dry and thick double-sided precision error : <±0.004mm; dry thickness single-sided precision <±0.002mm

Coating alignment error on the front and back sides

 <±0.5mm Average length error ≤±0.5mm

Coating roller accuracy

 <±0.001mm, scraper is comma knife

Core diameter

 3 inch shaft

Oven temperature control accuracy

 < ± 3 ° C, drying oven temperature independent PID adjustable

Power

 5.5 (KW)

Coating method

 continuous coating

Can move

 with 4 universal wheels

The weight

 450KG





continuous coating machine

coating machine

coating machine




 battery equipment
