Cryogenic Control Planetary Ball Mill Grinder

  • Model Number:

    TMAX-Mill-16
  • Type:

    Planetary Ball Mill
  • Dimension(L*W*H):

    950*600*710 mm
  • Net Weight:

    130KG
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

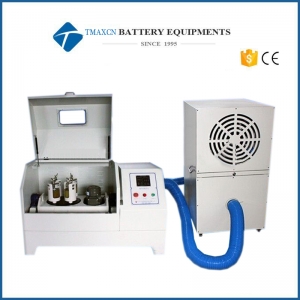

Cryogenic Control Planetary Ball Mill Grinder


The Cryogenic Control Planetary Ball Mill is composed of planetary ball mill and cold-air device. Cycling of cold air quickly takes away the heat generated by grinding by means of air conditioning refrigeration principle, and temperature inside the grinding space can be controlled at 2-10 ℃ according to temperature difference of working environment. Cold-air planetary ball mill is mainly applied to ultrafine grinding under condition of low-temperature requested by materials.Compared with the artificial injection of liquid nitrogen cooling, cold-air planetary ball mill is much easier and more convenient to be operated, it is also cost-saved, and low-energy consumed. Such a cold-air device can be also applied to assembly other models like vertical ball mill, horizontal ball mill, 360 degree ball mill and dual ball mill.


Parameter of cooling lab ball mills:

Type No.

Specificatio(L)

Volume of each matched pot

Remarks

Mill-0.4

0.4

50-100ml

Match with 50ml vacuum pot

Mill--1

1

50-250ml

Match with 50-100ml vacuum pot

Mill-2

2

50-500ml

Match with 50-250ml vacuum pot

Mill-4

4

250-1000ml

Match with 50-1000ml vacuum pot

Mill-8

8

1-2L

Match with 50-1500ml vacuum pot

Mill-12

12

1-3L

Match  wiht 1-2Lvacuum pot

Mill-16

16

2-4L

Match with 1-3Lvacuum pot

Mill-20

20

2-5L

Match with 2-4Lvacuum pot

Mill-40

40

5-10L

Match with 5Lvacuum pot

Mill-60

60

10-15L

Match with 10Lvacuum pot

Mill-100

100

20-25L

Match with 20Lvacuum pot


Material Data for Grinding Jars/Balls
