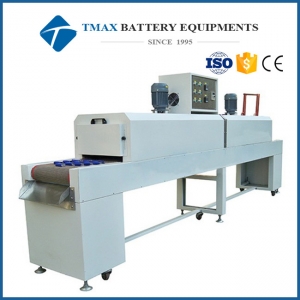

18650 Cylindrical Battery Automatic Shrinking Packing Machine with Combination Battery
Model Number:
TMAX-JK-280Type:
Shrink Packing MachineDimension(L*W*H):
Length 2200mm, Width 280mmNet Weight:
280 kgCompliance:
CE certificateWarranty:
Two Years Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
18650 Cylindrical Battery Automatic Shrinking Packing Machine with Combination Battery
TMAX-JK-280 heat shrink machine is Designed for cylindrical and combination battery heat shrinkable packaging process, using far infrared ray and cycle wind combination heating technology, ensure the battery plastic covers evenly heat shrinkage, famous and beautiful deformation, high consistency.
SPECIFICATIONS:
Model |
Heat Shrink Machine TMAX-JK-280 |
Source voltage |
AC 110V-380V, 50HZ |
Power |
12KW |
Warranty |
Two years limited warranty and lifetime support |
Heating mode |
Far infrared ray heat combined with circulating hot air |
Conveyor line specification |
Length 2200mm, Width 280mm, The revolution combined with the rotation |
Speed |
0.1-6M/min, Infinitely adjustable-speed |
Temperature range |
RT-180℃, With 1℃ accuracy, PID Electronic temperature control |
Battery out temperature |
<60℃ |
