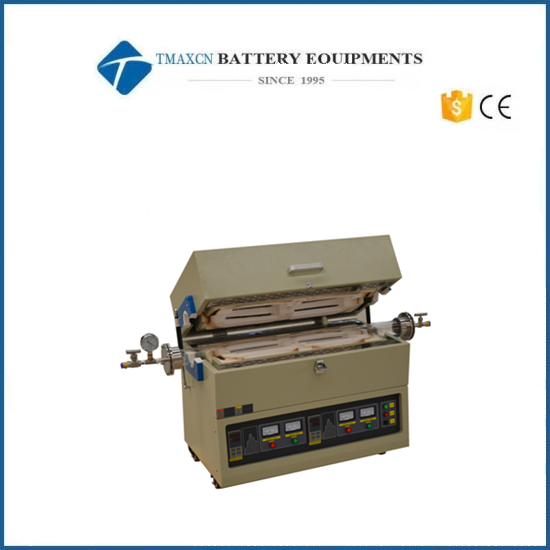

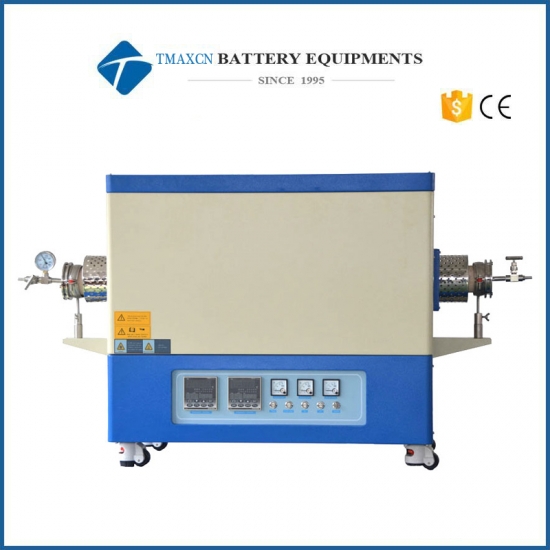

Double-Zone 1200°C Tube Furnace W/ Kanthal (Sweden) Heating Elements

Model Number:
TMAX-1200℃-double-fu
Dimension(L*W*H):
60mmOD x 1m L (Size Can Be Customized)
Net Weight:
300Lb
Compliance:
CE certificate
Warranty:
Two years limited warranty with lifetime technical support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Double-Zone 1200°C Tube Furnace W/ Kanthal (Sweden) Heating Elements

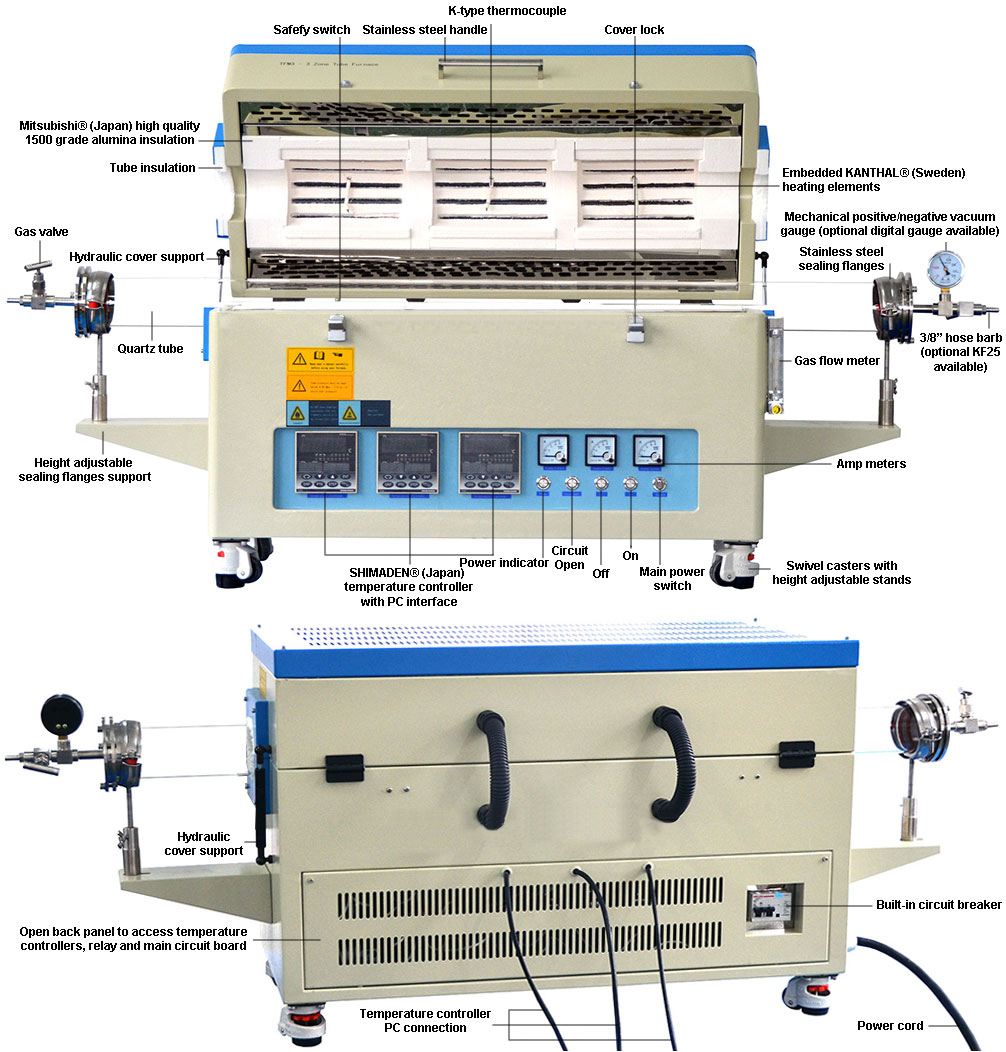

TMAX-1200℃ double furnace series dual-zone tube furnaces use the famous Kanthal (Sweden) coil wire as their heating elements. Furnace hearth is built with Mitsubishi (Japan) high quality fiber materials. Temperature of this furnace is controlled by high precision temperature controller (Shimaden fp93 from Japan) with +/-1 °C accuracy and 40 programmable segments. Furnace housing is built with double-layer steel and two cooling fans inside keep the furnace body temperature low. Furnace tube is sealed by stainless steel vacuum sealing flanges, it can be used under vacuum and other gases condition. This tube furnace is an ideal tool for sintering all types of materials/chemical. Great for labs or college scientific research use.

These furnaces have built-in interface to a computer. We provide connection cable, adaptor and software that can be used to control the temperature and parameters of the furnace, all from your PC! You can also save a temperature curve for record or study purposes. All our furnaces have CE cetificate.

Tube Furnaces

General specifications

Electrical requirements	208-240V, single phase, 50/60 Hz
Tube material	High purity quartz
Min. working temperature	Ambient
Max. working temperature	Zone1/Zone2: 1200°C
Max. constant working temperature	Zone1/Zone2: 1100°C
Constant working temperature under vacuum	1000°C
Rated vacuum pressure	0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Rated positive pressure	0.02 MPa / 150 torr / 3 psi
Refractory lining	Mitsubishi (Japan) high quality 1500 grade fiber alumina
Heating element type	Zone1/Zone2: Kanthal (Sweden) coil wire
Thermocouple type	Zone1/Zone2: K
Temperature controller	Shimaden fp93 (Japan) with 4 programs and 40 segments (i.e. 4 x 10 segments or 2 x 20 segments)
Max/recommended heating rate	20°C/min 10°C/min
Heating zone length	Zone1: 8 inches Zone2: 8 inches
Constant temp zone length	Zone1: 4 inches Zone2: 4 inches
Temperature controller precision	+/- 1°C
Vacuum level (cold)	0.1 Pa
Vacuum sealing flange kit	Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.
CE compliant	Yes
Download	Product brochure

Size comparison

Tube size (OD x length)	60mm x 1m	100mm x 1m	150mm x 1m
Maximum output	3 kW	4 kW	5.5 kW
Furnace dimensions (LxWxH)	24x16x24"	25x17x25"	26x18x26"

Standard Package

Part description	Quantity	Part image
tube furnace	1 pc
Stainless steel vacuum sealing flange set w/ pressure meter	1 set
Alumina tube 1000mm length	1 pc
Flow meter	1 pc
Stainless steel hook	1 pc
Alumina ceramic thermal block	4 pcs
Thermal gloves	1 pair
Spare fuse	2 pcs
USB/RS485 computer interface kit	1 set
Furnace and Shimaden controller manual	1 pc
