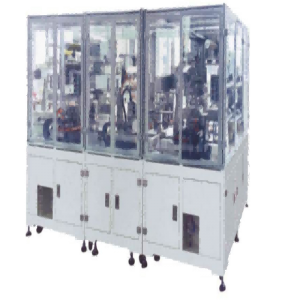

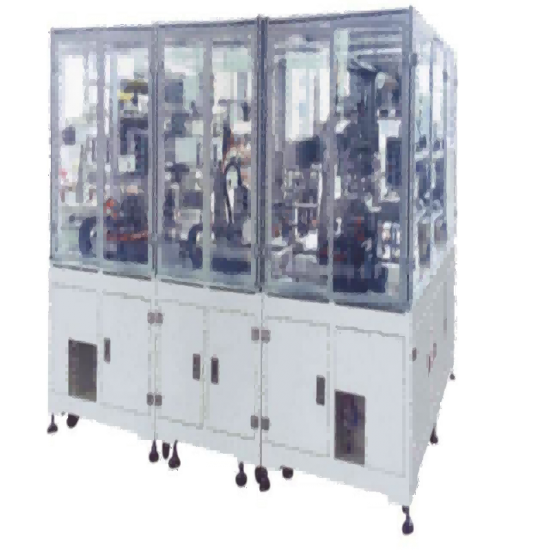

Dual-Station Fully Automatic Lithium-Ion Battery Production Pouch Cell Stacking Machine

Dual-Station Fully Automatic Lithium-Ion Battery Production Prouch Cell Stacking Machine

Feature

1.High precision: By accurately positioning the electrode plates, the overall position accuracy of the electrode plates during lamination is ensured to be ± 0.3mm

2.Diaphragm accuracy: active unwinding, floating wheel tensioning of the diaphragm, overall module correction, electrostatic removal of the diaphragm, and diaphragm alignment accuracy of ± 0.2mm,

3.Dust control: material box and secondary positioning are equipped with effective dust suction mechanism; The suction cup and rod are made of non-metallic materials; Positive and negative electrode material boxes, secondary positioning, and 4.intermediate isolation treatment to prevent cross contamination of positive and negative electrode materials.

5.Multiple sheet leakage measures: material box swing, sheet separation brush, robotic arm servo shaking plate separation pole plate, ultrasonic sensor detection of multiple sheet leakage.

6.Corner detection of electrode lug: four Corner detection detection and lug detection of electrode lug to prevent the electrode lug from missing angle or folded angle from overlapping into the electric core.

Specification

Locate mode	Mechanical positioning or CCD positioning
Stacking efficiency	Single station 1.0-1.2 (complete machine 0.5-0.6) s/pcs
Auxiliary time	<10s
Alignment accuracy between electrode and diaphragm	Center deviation ± 0.3mm
Diaphragm end face alignment accuracy	±0.3mm
Adjacent pole alignment accuracy	±0.2mm
Overall alignment accuracy of polar plates	±0.3mm
Number of laminations	Can be set within the thickness adaptation range
Outer diaphragm	Tail roll/no tail roll
Pass rate	≥99.5%
Utilization rate	≥98%
Overall dimensions	W4000mm x L2000mmx H2350mm
Weight/bearing capacity	About 5000Kg ; >650Kg/M2
Power	AC220V single-phase; 10% voltage wave induced soil disturbance; Power: 8KW; Frequency: 50Hz
Compressed air	0.5~0.7Mpa (5~7kgf/cm2 ）, dosage 400L/min

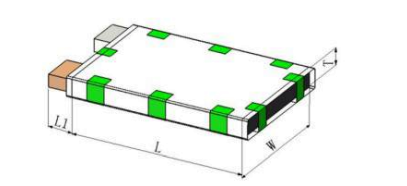

Thickness	5~20mm
Width	80~200mm
Length	120~300mm
Pole length	10~30mm
Polar direction	On the same/opposite side
