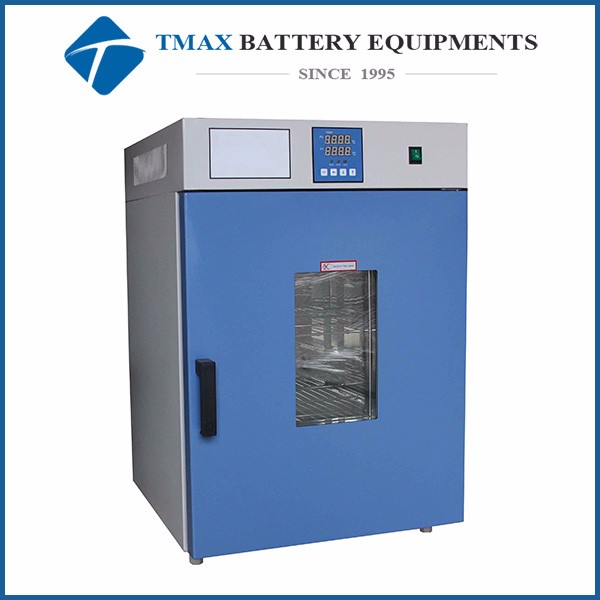

Hot Air Circulating Vacuum Electrode Drying Oven For Battery Lab Research

Model

Electric Blast Drying Oven  TMAX-DSP

Source voltage

220V 50HZ

Power

1500W

Warranty

Two Year limited warranty with lifetime support

Work box size

450*550*550(mm)

Oven size

600*710*845(mm)

Temperature range

RT+10~250℃,

Temperature resolution

±0.1℃

Temperature fluctuation

±0.5℃

Temperature controller

30 segment programmable temperature controller.
Self tuning function. The timing time can up to 9999 minutes

Inner box material

High quality mirror stainless steel plate,  smooth surface, easy to clean

Outside material

High quality cold-rolled steel plate, the surface electrostatic spray, hard and firm coat, with strong anti rust ability

Sensor

A grade PT100 Platinum resistance

Heat pressure layer

High quality insulation system, inner box, inner shell,ultra-fine glass fiber,
Aluminum foil aluminum reflector, air - interlayer from inside to outside.

Observe window

The box door are provided with double-layer tempered glass observation window,
can observe the test result easily

Heating mode

Electric heating. Nickel chromium alloy electric heater

Safety installation

With over temperature protection, grounding etc.

Wind duct

Forced air circulation channel, ensure that the studio uniform temperature;
air duct provided with a heater, temperature sensor

Adjustable air intake

The control box and outlet air quantity, the casing is provided with an exhaust
can close or adjust discharge mouth to change wind effect.

Shelf

2pcs

Timing range

1-9999mins

Ambient temperature

+5~40℃
