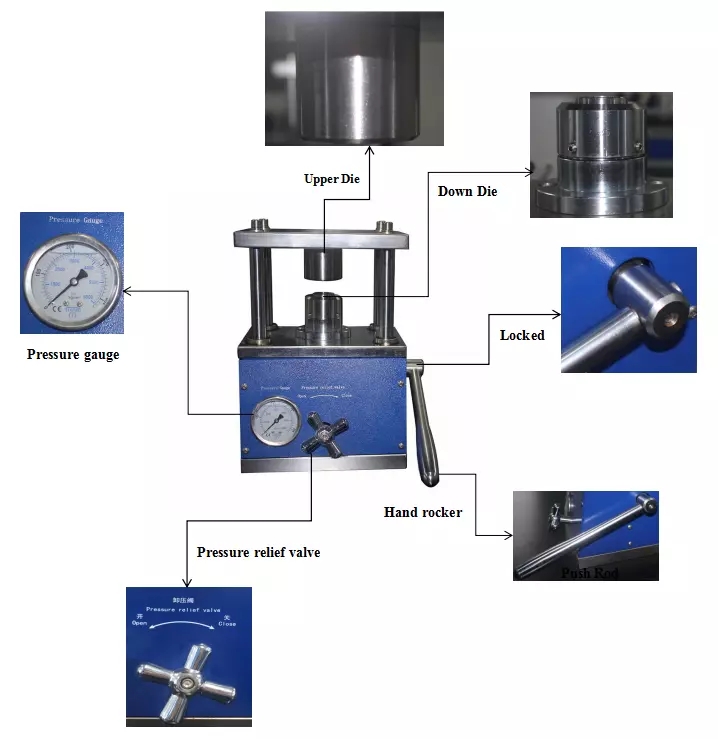

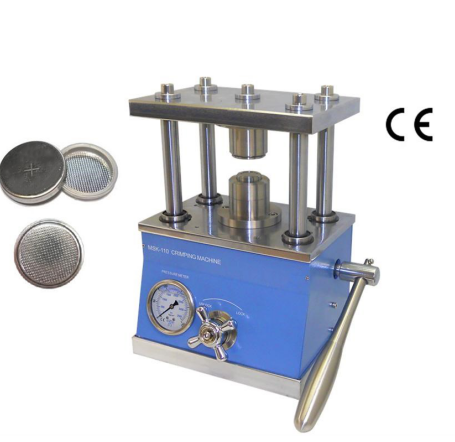

Hydraulic Coin Cell Crimping Machine for Coin Cell Research

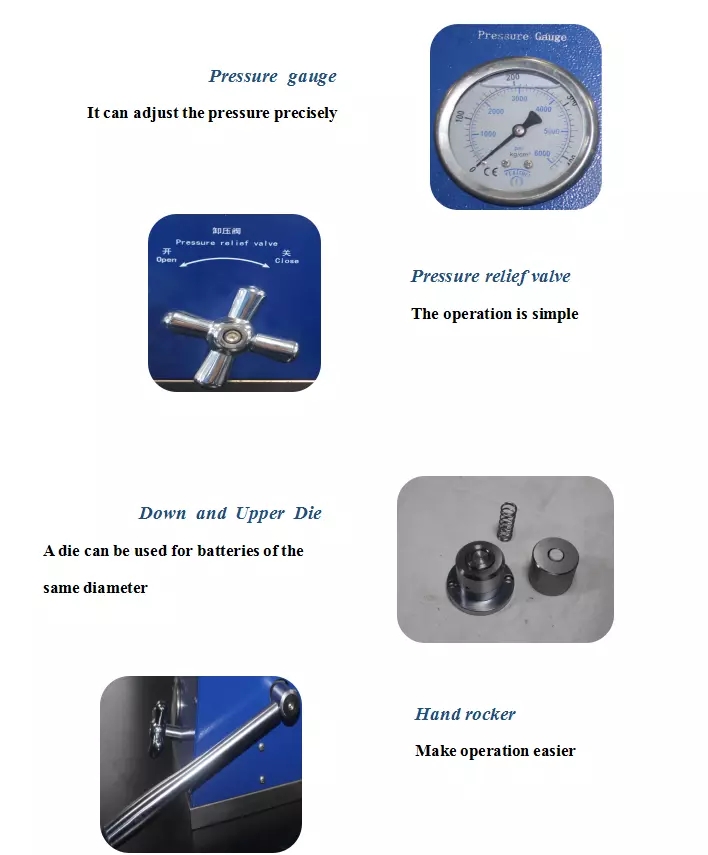

Standard Crimping Die

• One set of crimping die for CR2032, CR2025, and CR2016
• Optional die available from product option for crimping CR2325, CR2450, AG3, AG5
• PTFE Anti-Corrosion Core prevents coin cells from being short circuited

Structure

Heavy Duty Steel Platform

Pressure

Max. 8 metric Tons hydraulic pump with automatic pressure relief

Product Dimensions

With handle positioned horizontally: 300mm(L) x 300mm(W) x 330mm(H)

Without handle: 230mm(L) x 180mm(W) x 330mm(H)

Warranty

Two Years limited warranty with lifetime support (Rusted and damaged parts due to improper

storage condition or maintenance are not covered by warranty)

Application Notes

• Attention: The built-in small hydraulic pump is not designed for holding high pressure. Pressure inside will
• be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling
• the coin cell).
• Access to the Over-pressure limit screw by removing the front panel
• Please see instructions below about changing the upper and lower die for converting the unit to MSK-110D, which disassembles crimped coin cells - How to Install the Disassembling Die on MSK-110 Crimper

Net Weight

32 kg

Shipping Weight

50 kg
