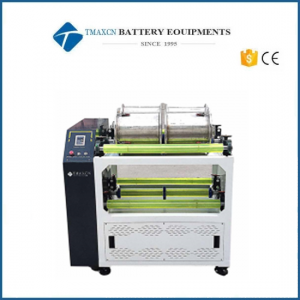

Lab 8 Working Stations Jar Mill Ball Mill
Model Number:
TMAX-PM-8-5Type:
Planetary Ball Mill MachineCompliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lab 8 Working Stations Jar Mill Ball Mill
Working principle:
The ball mill of pot mill is driven by a main shaft which is wrapped with wear-resistant rubber parts and connected with the motor pulley through a belt pulley. Relative motion occurs between the outer wear-resistant rubber part on the main shaft and the tank body, that is, friction with the surface of the ball mill pot to drive another driven shaft to realize rolling, The grinding media and materials in the ball mill pot are lifted to a certain height with the rotation of the cylinder body, and are separated from the cylinder wall due to gravity and fall along a parabola. The materials are crushed under the impact of the grinding medium and the friction and shear caused by the rolling and sliding of the grinding medium. The equipment has novel appearance design, simple structure and convenient use.
Application:
The ball mill of pot mill is driven by a main shaft which is wrapped with wear-resistant rubber parts and connected with the motor pulley through a belt pulley. Relative motion occurs between the outer wear-resistant rubber part on the main shaft and the tank body, that is, friction with the surface of the ball mill pot to drive another driven shaft to realize rolling, The grinding media and materials in the ball mill pot are lifted to a certain height with the rotation of the cylinder body, and are separated from the cylinder wall due to gravity and fall along a parabola. The materials are crushed under the impact of the grinding medium and the friction and shear caused by the rolling and sliding of the grinding medium. The equipment has novel appearance design, simple structure and convenient use.
Features:
1. It can be used in single or multiple tanks at the same time, and multiple samples can be ground at the same time;
2. It can stop the machine regularly, intermittently or continuously;
3. The wear-resistant rubber parts are coated on the shaft roller, which are made of special materials and are durable;
4. It is suitable for material fine grinding, crushing, mixing, anti precipitation and other process requirements, with high efficiency;
5. Can be customized according to customer requirements (multi station customization, multi-stage power output customization, etc.); proofing machine.
Specification
Name |
PM-8-5 |
PM-8-15 |
Reference dimension (mm) |
960*670*960 |
1130*800*960 |
Weight (kg) |
110KG |
150Kg |
Motor specifications |
Y1.5-4B3 |
Y2.2-4B3 |
Frequency converter specification |
1.5kw/single phase 220V |
2.2kw/three-phase 380V |
Main roller speed (R / min) |
50-450 |
40-420 |
Maximum load of single tank (kg) |
35kg |
80kg |
Hand crank / protective cover |
Matching |
Matching
|
