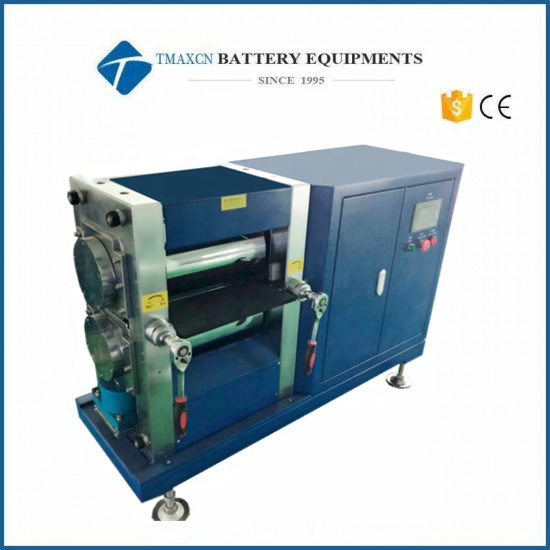

Lab Heat Hydraulic Rolling Press Machine
Model Number:
TMAX-Roll4Dimension(L*W*H):
Roller Diameter: Ф100-300 mmNet Weight:
680KGCompliance:
CE certificateWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lab Heat Hydraulic Rolling Press Machine
Rolling force: Max40t.
Mechanical speed Max.6m/min

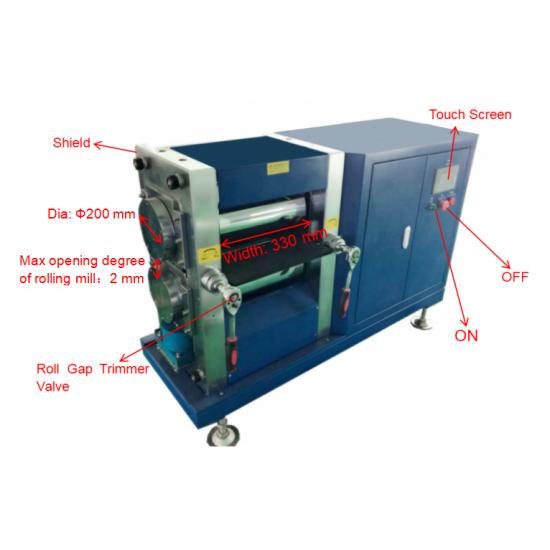

Working roller: Diameter: Ф200 mm; Material: 9Cr3Mo
Surface hardness HRC65~68, internal hardness HRC60-62, roughness Ra≤0.4, round jitters better than ±2μm
Roller width: 330 mm
Under type: hydraulic
Rolling accuracy: ±1.5μm
Maximum opening degree of rolling mill: 2 mm
Reducer and split gear box: combined
Rolling mill motor: AC variable frequency motor
Lithium electrode sheet has a single reduction of 20% to 30%. If it is thinner, it needs to be rolled several times (5μm/time).
Usage environment: Recommended ambient temperature 25±3°C, humidity 30~90RH, no vibration and electromagnetic interference
Outline installation size: length 1400mm width 500mmX height 1300mm
Voltage: 220V 2KW
0.5-0.8MPa compressed air
Weight: about 680KG
