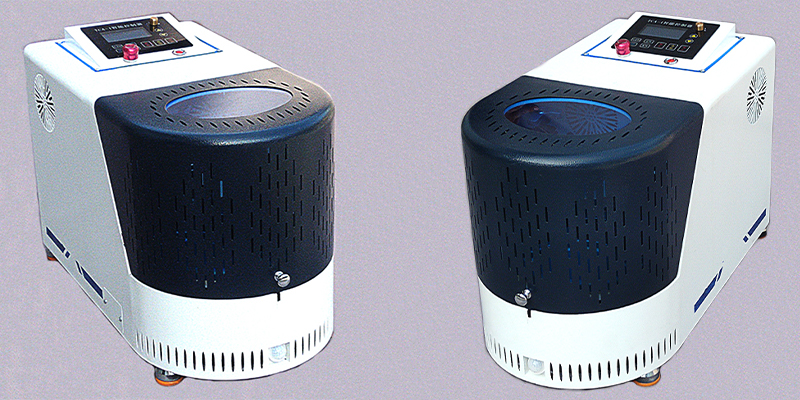

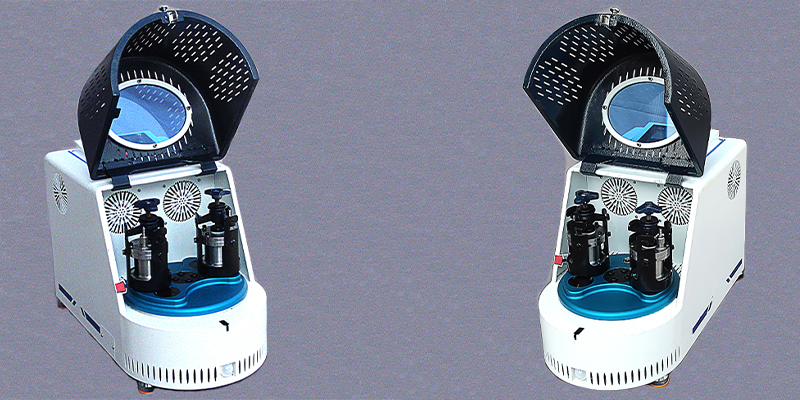

Lab High Energy Ball Mill Machine
Model Number:
TMAX-PBM-H-0.4AType:
High Energy Ball Mill MachineCompliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lab High Energy Ball Mill Machine
Introduction
The high-energy ball mill mainly adopts the principle of planetary ball mill. The high-speed centrifugal force drives the collision, shear and dispersion between the medium in the tank and the material. The speed of the inner wall of the tank and the ball is different, and the friction and impact force between the material and the medium are different. The energy is different. The rotation speed of 1630 revolutions produces high energy (equivalent to 60 times the acceleration of gravity), and reliable and repeatable nano-level grinding results can be obtained in a very short time. This equipment is highly efficient for sample mixing and homogenization or Ideal equipment for mechanical activation and alloying, suitable for geology and minerals, pharmacy, mechanical alloying, chemistry, nanotechnology, metallurgy, materials research, ceramics, biology, sample preparation for analysis, etc.
Performance
|
Transfer method |
Gear drive |
|
Way of working |
Two or four ball milling tanks work simultaneously |
|
Maximum sample volume |
Two-thirds of the volume of the ball mill |
|
Ball mill tank volume |
0.05-100ml per jar, total volume 0.2L-0.4L |
|
Feed size |
Soil material≤10mm, other materials≤3mm |
|
Discharge size |
Min.0.1um |
|
Speed ratio (revolution: rotation) |
The rotation speed of the equipment is 47-815r/min, and the rotation is 94-1630r/min |
|
Speed (rotation) |
94-1630r/min |
|
Speed mode |
Brand inverter stepless speed regulation |

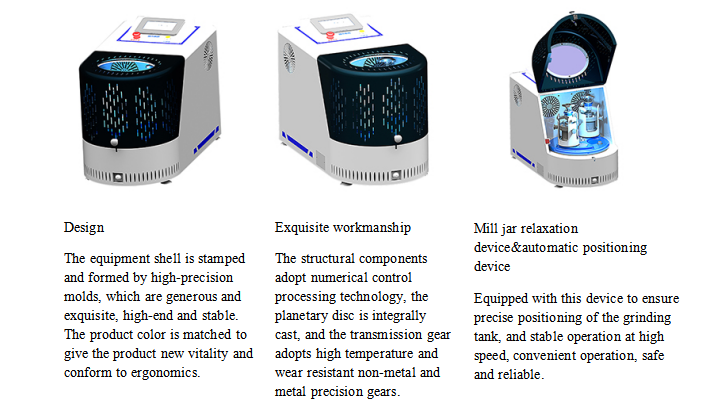

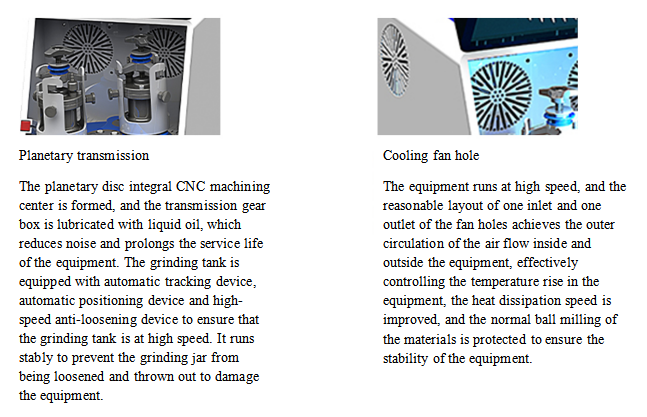

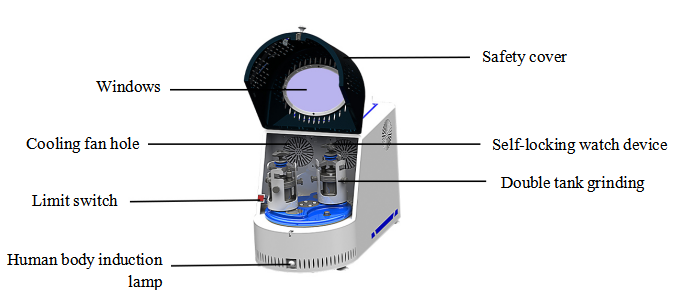

Characteristic
Technical parameters
|
Model number |
PBM-H-0.4A |
|
Specification(L) |
0.4 |
|
Can be equipped with ball mill tank specifications |
50-100ml |
|
Number |
2 |
|
Matching ball mill tank |
Can be equipped with 50ml vacuum ball mill tank |
|
Standard ball mill tank fixation and anti-loosening device |
Self-locking |
|
Power |
Single phase 220V,50Hz |
|
Motor Power(kW) |
0.37 |
|
Total running time(min) |
1-9999 |
|
Positive and negative alternate running time(min) |
1-999 |
|
Adjustable speed revolution(rpm) |
47-815 |
|
Adjustable speed rotation(rpm) |
94-1630 |
|
Standard panel (optional smart, touch screen) |
Normal |
|
Lubrication method |
lubricating oil |
|
Speed mode |
Frequency |
|
Weight(KG) |
35 |
|
Dimension(L*W*H) |
570*300*450mm |
|
Noise≤db |
55±5 |
