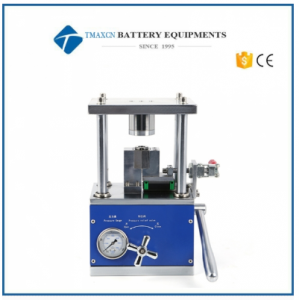

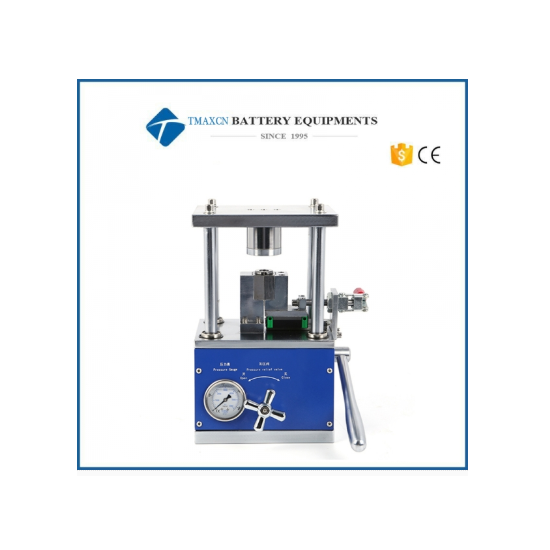

Lab Hydraulic Crimping Machine for 32650, 26650, 21700, 18650, AA and AAA Cylindrical Cases
Model Number:
TMAX-CF650Type:
Hydraulic Crimping MachineDimension(L*W*H):
300L x 200 W x 350H mmNet Weight:
50 kg (100 lbs)Compliance:
CE certificateWarranty:
Two Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
DESCRIPTION
Lab Hydraulic Crimping Machine for 32650, 26650, 21700, 18650, AA and AAA Cylindrical Cases
Overview
It is mainly used for the sample production of battery material research and development in laboratory, for the scientific research and sealing of cylindrical battery and cylindrical capacitor, and can also be used for small batch trial production in factories.
Configuration mold:
1 set of 18650 cylindrical battery crimping die is provided as standard, which can be sealed twice (other cylindrical battery sealing mold can be selected).
Features
*The built-in safety overflow oil valve can adjust the pressure according to the needs, and set the upper pressure limit to prevent the damage caused by excessive pressure caused by misoperation, so as to ensure the safety of the machine.
*Embedded pressure gauge, can observe and accurately control the size of sealing pressure.
*Hydraulic drive, pressure up to 8t, battery seal no vibration, no leakage.
*Special designed hydraulic structure, easy to operate.
*The precise mold design ensures the accuracy and reliability of sealing and forming. The firm steel structure design ensures stable and safe use.
*Small size, easy to operate, can be placed in glove box operation.
*It has the advantages of small volume, convenient operation and accurate molding.
Specifications
