Lab Split Type Test Cell For 26650 Cylindrical Cell
Model Number:
EQ-SC-26650Compliance:
CE certificateWarranty:
2 Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

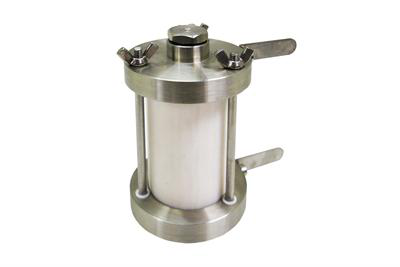

Lab Split Type Test Cell For 26650 Cylindrical Cell
EQ-SC-26650 Split Type Testing Cell is designed for testing 26650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.
|
specifications |
|
|
Dimensions (Dia. x Height) |
1 ID of PTFE Body: 26mm 2 Height of PTFE Body: 65mm |
|
Material |

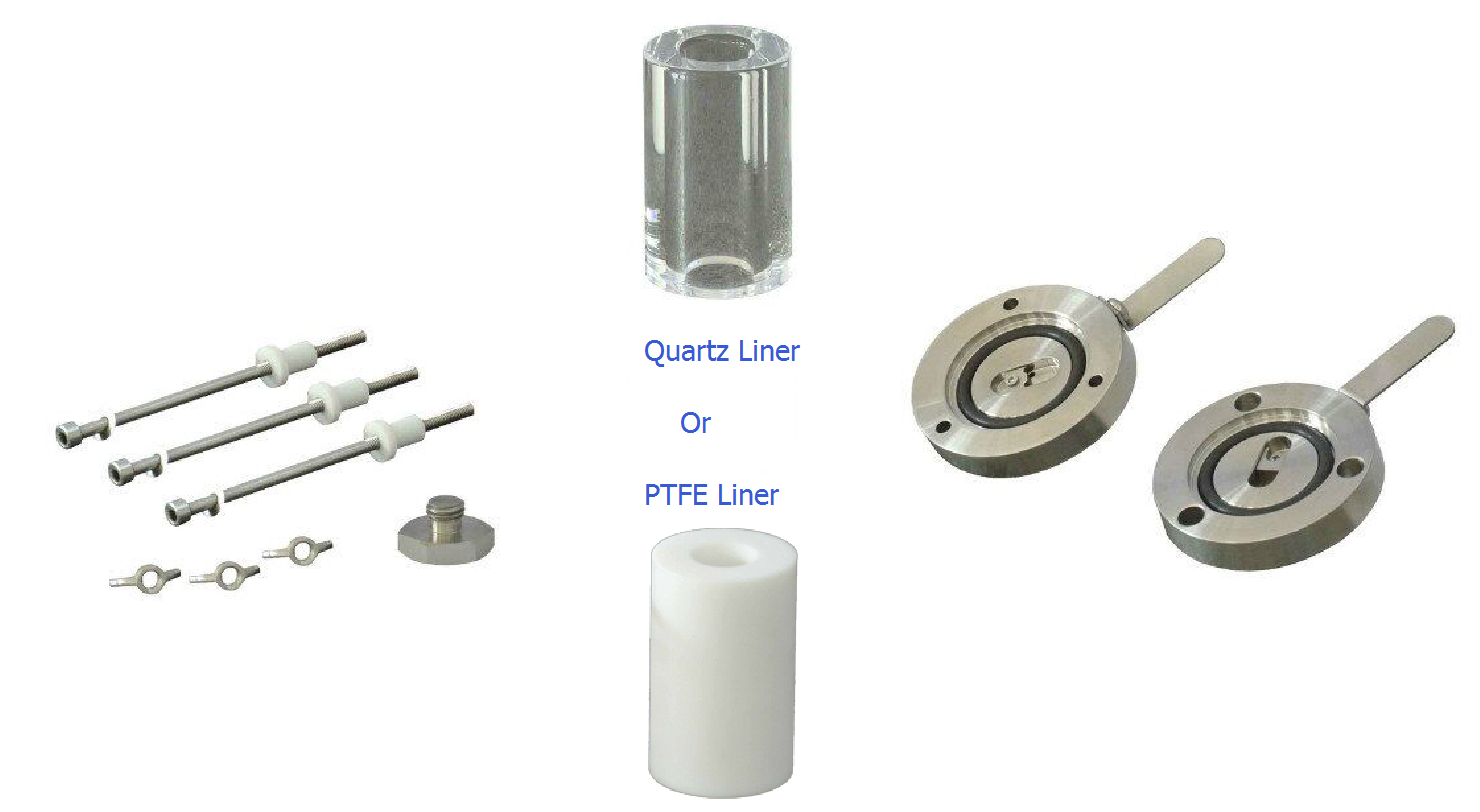

1 Caps: Full Stainless steel end caps 2 Body: Eletrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC 3 O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings |
|
Design |

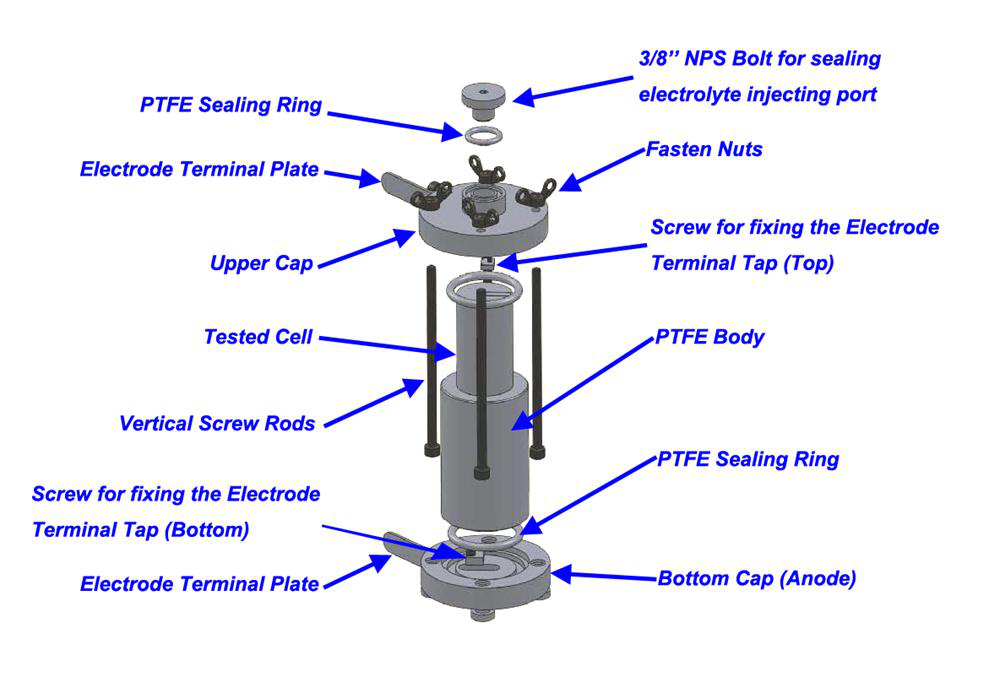

1 Easy assembling by only four cap mounting screws 2 Easy to separate after test for cleaning 3 Space saving, compact design allows you put it into the glove box 4 Click the image left for the detailed illustration of this cell |
|
Option |
1 Anti-corrosive Au coating on the top & bottom stainless steel caps is an option. Surcharge will apply. |
