Lab Vacuum Film Coating Machine For Battery Electrode Coating

  • Model Number:

    TMAX-VFC-150
  • Input Power:

    650W
  • Dimension(L*W*H):

    10 - 250 mm adjustable
  • Net Weight:

    About 40kg
  • Compliance:

    CE certificate
  • Warranty:

    One Year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

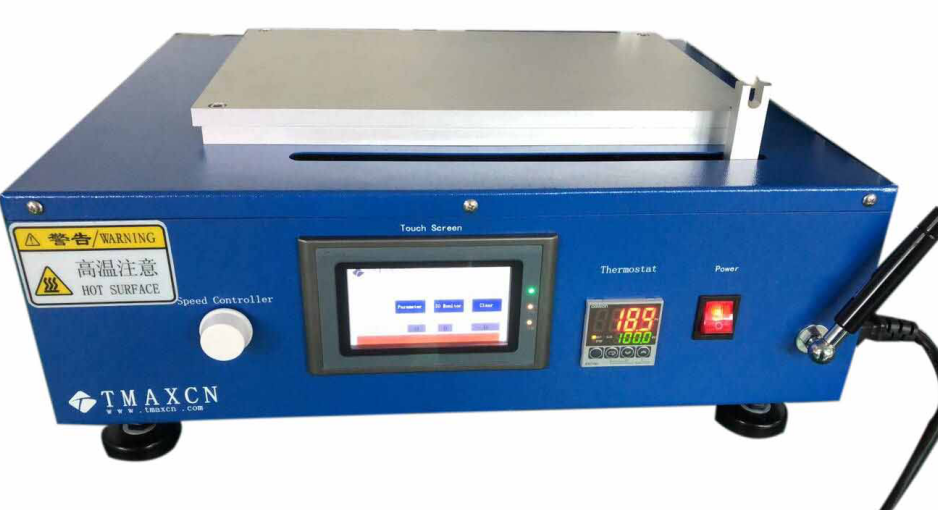

Lab Vacuum Film Coating Machine For Battery Electrode Coating


DESCRIPTION

The TMAX-VFC-150 Film coating machine with dryer is used for varies kinds of materials coating.

It is supplied with vacuum pump and heating system, having an precision heating temperature up to 200°C.

The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.


Machine model

Automatic film coating machine with dryer

TMAX-VFC-150

Source voltage

AC110V-240V, 50/60HZ

Power

650W

Coating speed

0-100mm/s, Step-less transmission   Accuracy: 10mm/sec

Advantages

Supply with dry function, vacuum pump

Stroke length

10 - 250 mm adjustable by using Adjustable Position Switch

Platform

Aluminum alloy flat vacuum chuck

Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T)

Slicker width

0-150mm

 Slicker adjustable range

0.01-3.5mm

Heating dry system

RT-200°C, Digital temperature controller

Temperature control accuracy

±1°C

Dimension

550*310*330mm

Weight

About 40kg

Warranty

One Year limited warranty with lifetime support

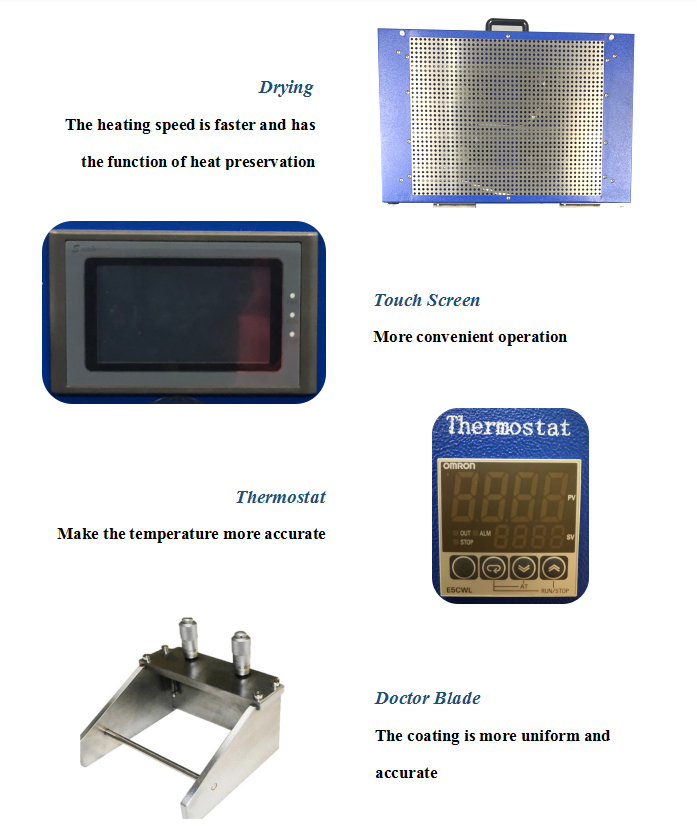

Reference Pictures

1 One oil-less vacuum pump is included for immediate use

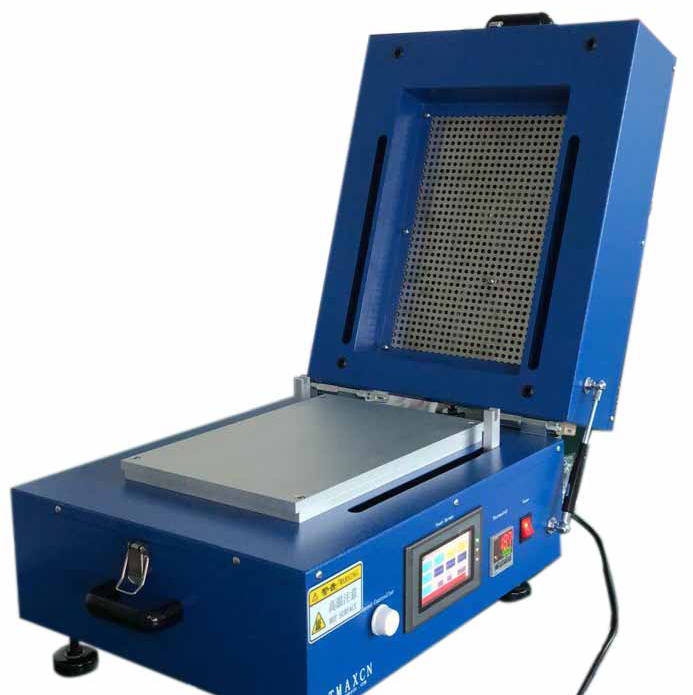

2 Heating system : Installed on the top cover

Built in digital temperature controller with accuracy of +/-1°C

Suspension support helps open cover easily and safely.

Max. Heating Rate:10°C/min

Max. Heating Temp.:200°C

3 One 150mm width micrometer adjustable film applicator is included

Traverse Pusher is included for pushing the Film Applicator to ensure the constant

coating speed
