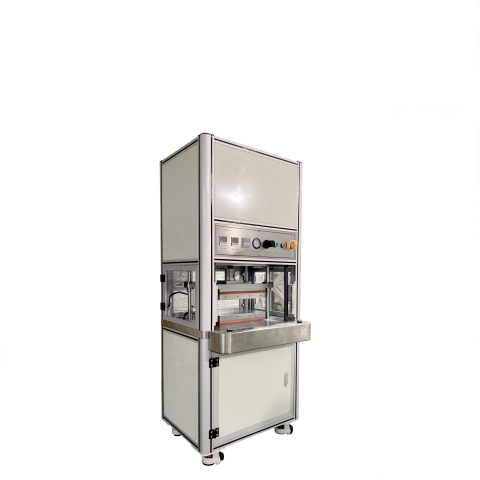

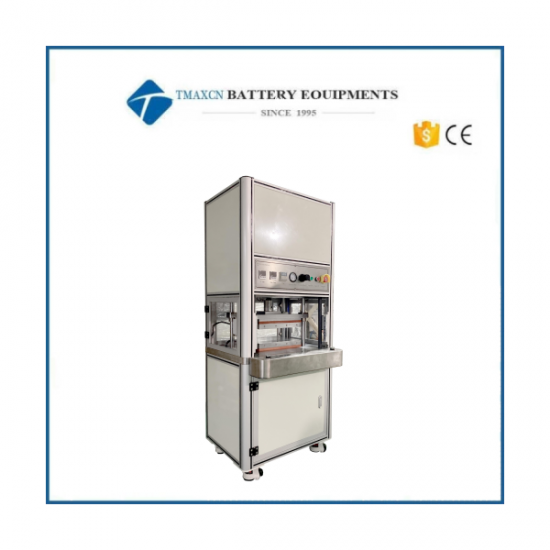

Laboratory Battery Heat Pressing Machine For Prismatic Cell Assemble

Model

TMAX-RY400

Press plate size

400*300mm

Plate material

Copper plate

Max press pressure

5T

Parallelism of upper and lower hot plates

≤0.1mm(Tolerance as shown below)

Control temperature

RT-200℃,adjustable, With temperature error ±2°

Air supply

0.4-0.65MPa, compressed air connect tube outer diameter 10mm

Source voltage

Single-phase: 220V/60Hz

Power

≤4KW

Dimension(L*W*H)

About 800*760*1900mm

Weight

≤280Kg

Appearance colour

International warm grey 1C

Advantage

Equipment with universal wheel design , convenient handling, movement; Designed with load-bearing adjustable foot, upper and lower adjustable range ≥8cm, foot diameter ≥80mm

Basic configuration

* 5 ton gas-liquid pressure cylinder

* Upper and lower copper heating plate

* Upper and lower working plate thickness 30MM

* Panasonic/Omron temperature controller

* Omron time relay adjustable between 0.01S -99H

* FOTEK solid state relay

* Device is provided with emergency stop and an

emergency stop protective cover;

* Personnel working station is equipped with safety grating to prevent personal safety problems.

* Adopts double button start, button spacing ≥260mm;
