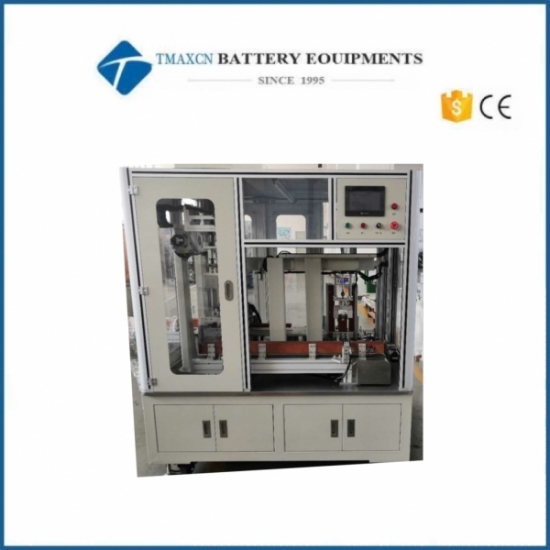

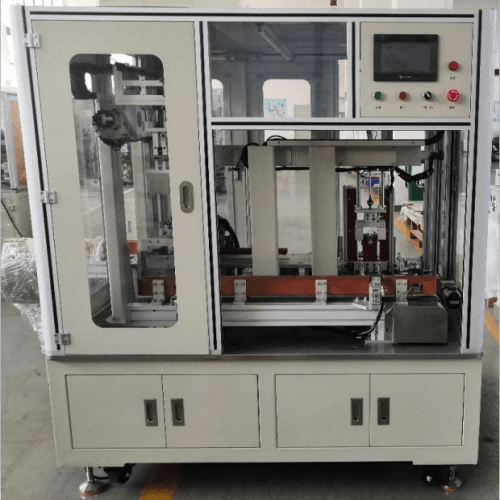

Laboratory Battery Prismatic Cell Semi-Automatic Shell Feeder Feeding Machine

1、 Device Functions

Equipment function: By manually installing the battery cell and battery casing, the casing and battery cell are first dust removed in the dust removal mechanism, and then transported to the shell feeding station. The mechanism achieves semi-automatic shell entry between the battery cell and the casing.

Overview of workflow:

Manually place the aluminum shell into the clamp - manually place the battery cell into the mechanism - position the shell after dust removal - automatically push the aluminum shell - automatically unloading the material.

2、 Technical parameters

3、 Main component configuration

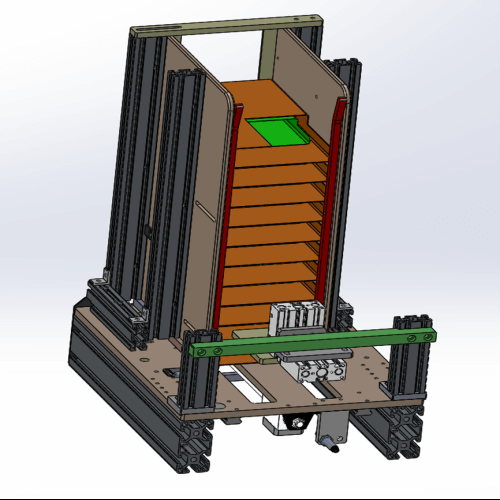

1. Shell placement mechanism

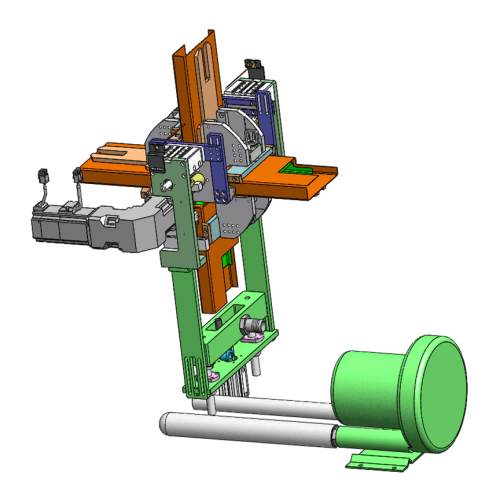

2. Aluminum shell positioning dust removal mechanism

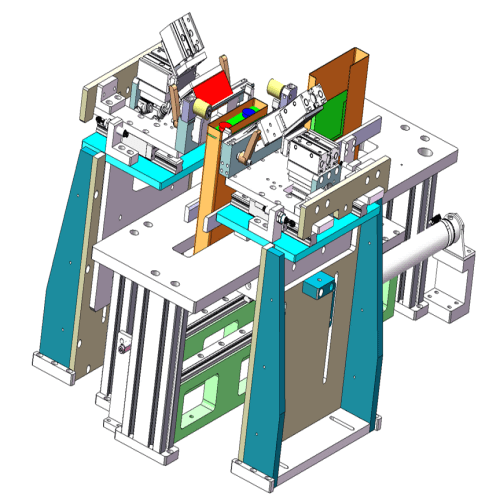

3. Shell feeding mechanism

4、 Component brand

1. Main device configuration

5、 Installation environment requirements

1. Configuration power supply: AC380V, 50Hz, voltage fluctuation range:+10%~-10%;

2. Total power of the equipment: approximately 2KW;

3. Compressed air: 0.25~0.8Mpa; Pressure fluctuation ± 1%

4. Equipment specifications:

1) Equipment weight: approximately 1 ton;

2) Overall dimensions: approximately 2100x1320x1970mm (length x width x height);

3) Appearance color: light gray or customer specified.

5. Environmental requirements:

1) Environmental temperature: 25 ± 5 ℃;

2) Relative humidity: 30% to 75% RCH, ensuring that the on-site air is dry and unobstructed, without acid or alkali corrosion;

3) Ground wire: protective grounding.
