Laboratory High Speed Vibrating Ball Mill Machine

  • Model Number:

    TMAX-Mill01
  • Type:

    Planetary Ball Mill Machine
  • Net Weight:

    62kg (135 lbs)
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

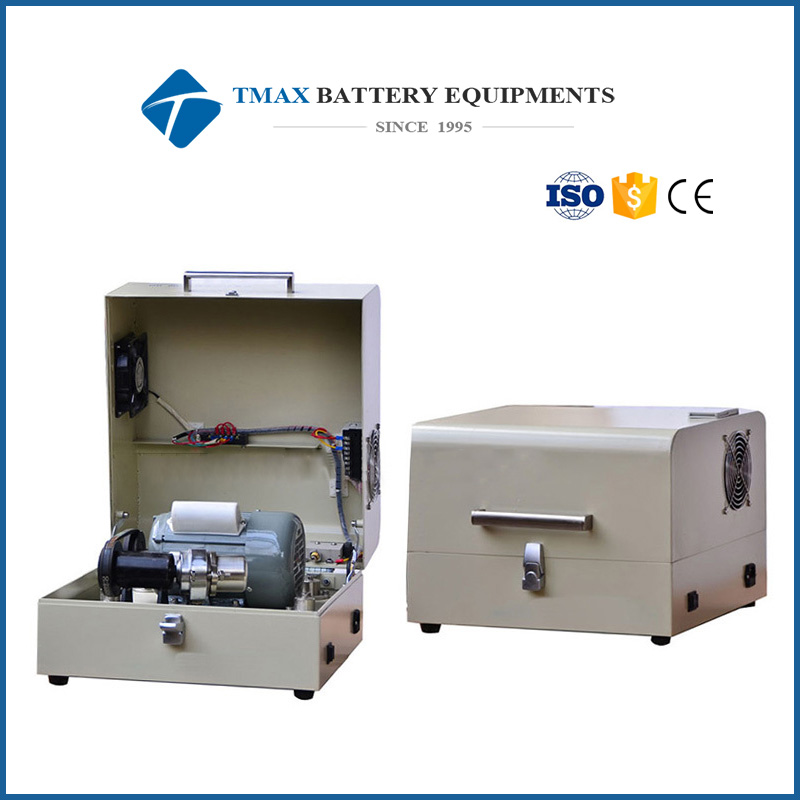

Laboratory High Speed Vibrating Ball Mill Machine


SPECIFICATION

TMAX-DSP-GB80 ball milling machine is a compact high speed vibrating ball mill for making small quantity of powder samples at easy and fast with improved vibration design.

It can be used for both dry and wet mill method to mill different material of solid, suspended liquid, and paste in laboratory.

It has higher impact energy created by three dimensional movement, e.g. rotation, vibration and oscillation with frequency up to 1200 cycles per minute.


Model

TMAX-DSP-GB80 High Speed Vibrating Ball Mill

Voltage Supply

110V/220V, 50/60HZ Customized

Power

180W

Oscillation Frequency

1,200 rounds/min

Timing Range

0 to 120 minutes for built in mechanical timer

Volume

Stainless steel tank 80ml

Maximum Feeding Capacity

1/3 of the capacity of the ball milling tank

Feeding Granularity

<1mm

Discharging Granularity

0.1 micron minimum

Overall Dimensions

405mm(L) x 365mm(W) x 260mm(H)

Net Weight

40 kg (88 lbs)

Warranty

one years limited warranty with life time support

Shipping Dimensions

26"(L) x 26"(W) x 24"(H)

Shipping Weight

62kg. (135 lbs)


Accessories List

TMAX-DSP-GB80 Ball Mill Machine

 1 set

Power Line

 1 Pcs

Stainless Steel Tank 80ml

 1 pcs (Can customize to 100ml)

Stainless Steel Ball

 1 set (Or other required materials ball)

Operating Manual

 1 book
