Large Lithium Polymer Battery Assembly Line

  • Model Number:

    TMAX-BAP-H
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

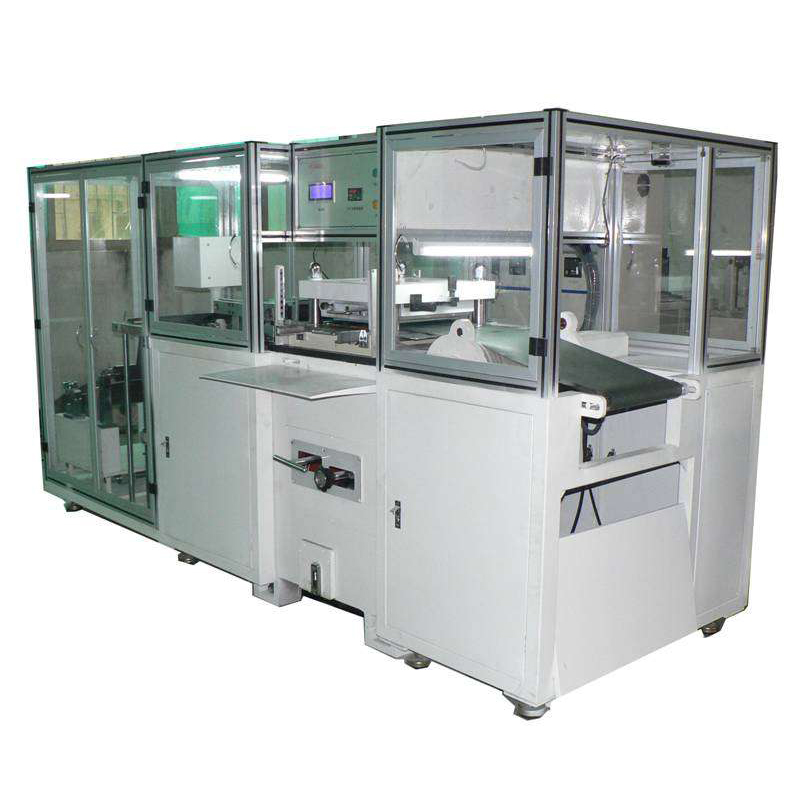

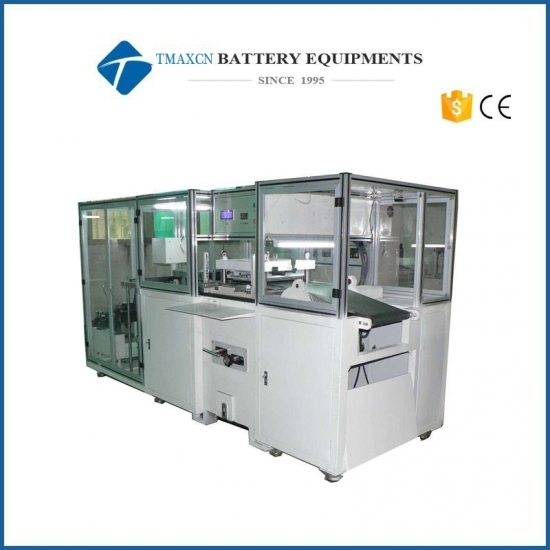

Large Lithium Polymer Battery Assembly Line


Product Description

Main technical parameters

Performance

Battery length

55-140mm (±0.2mm)

Battery width

30-70mm

Total battery length

60-155mm

Battery thickness

2-10mm

Aluminum-plastic composite film

diameter

φ450mm

Aluminum-plastic composite film

thickness

0.11-0.2mm

Gas-liquid pressurized cylinder

10T

Punching servo

15KW

Source voltage

AC220V 9KW

Capacity

4-14pcs/min

Air supply

0.5-0.7Mpa 20L/S

Size (L*W*H)

3600*3200*2000mm
