Large Rack Gap Coater Machine
Model Number:
TMAX-Rack-Gap3Dimension(L*W*H):
300mm/400mm/500mm/650mmCompliance:
CE certificateWarranty:
2 yearPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

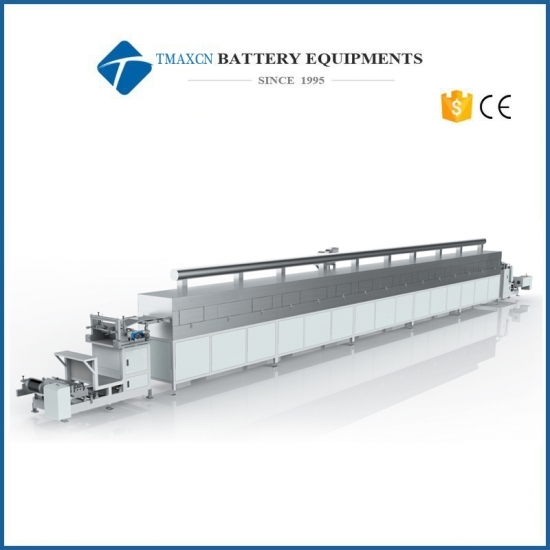

Large Rack Gap Coater Machine
Advantage
1. Steel roller, rubber roller, scraper installation structure is simple, easy to maintain and maintain.
2. Control system is easy to operate, the touch screen interface is simple and easy to understand.
3. Stable performance and high economy.
|
No. |
Project |
Technical Parameters |
|
1 |
Process adaptability |
Lithium battery pole piece coating |
|
2 |
Coating method |
Continuous coating / gap coating |
|
3 |
Rewinding volume configuration |
Single-axis manual change |
|
4 |
Heating method |
Electric heating / steam heating / oil heating |
|
5 |
Oven configuration |
Passive over roller horizontal distribution, length optional |
|
6 |
Mechanical speed |
Coating speed +10% |
|
7 |
Coating speed |
3~10m/min (depending on the model) |
|
8 |
Coating width |
300mm、400mm、500mm、650mm |
|
9 |
Coating thickness |
60~150um |
|
10 |
Thickness accuracy |
±0.5μm (when the coating thickness is greater than 1um) |
