large Vertical Plate Gap Coating Machine
Model Number:
TMAX-Vertical-Plate3Dimension(L*W*H):
500mm/600mm /650mmCompliance:
CE compliantWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

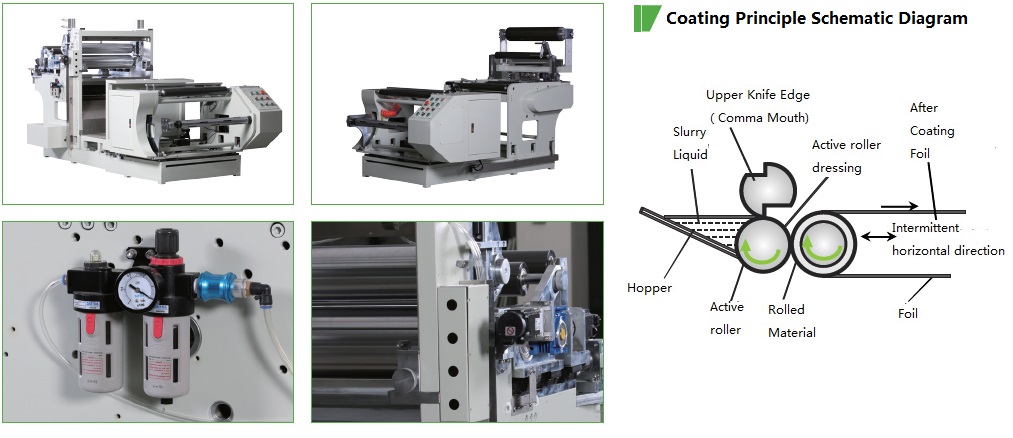

large Vertical plate gap coating machine
|
No. |
Project |
Technical Parameters |
|
1 |
Process adaptability |
Lithium battery pole piece coating |
|
2 |
Coating method |
Continuous coating / gap coating |
|
3 |
Rewinding volume configuration |
Single-axis/two-axis manual roll change, automatic roll change |
|
4 |
Heating method |
Electric heating / steam heating / oil heating |
|
5 |
Oven configuration |
Active over roller + suspension oven, length optional |
|
6 |
Mechanical speed |
Coating speed +10% |
|
7 |
Coating speed |
1~15m/min (depending on the model) |
|
8 |
Coating width |
500mm,600mm,650mm |
|
9 |
Coating thickness |
50um |
|
10 |
Thickness accuracy |
±0.5μm (when the coating thickness is greater than 1um) |
Advantage
1. Steel roller, rubber roller, scraper installation structure is simple, easy to maintain and maintain
2. Control system is easy to operate, the touch screen interface is simple and easy to understand
3. Having a thickness head and tail thickness adjustment, automatic knife gap adjustment closed loop tension control system applied length-measuring function (optional), and negative face of homogeneous systems, the oven temperature protection system, online defect inspection system (optional)
