Linimncoo2 Powder For Battery Cathode Material
Model Number:
TMAX-NCM-111Compliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

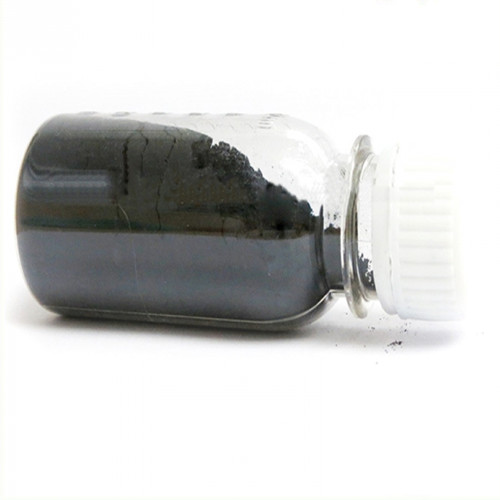

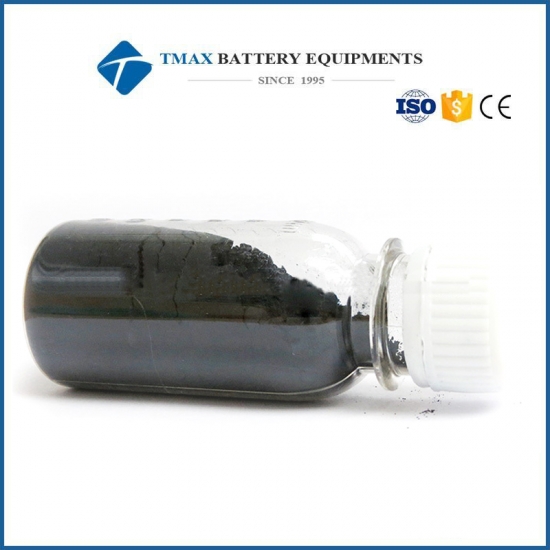

Linimncoo2 Powder For Battery Cathode Material
Appearance is black powder
Usage:
It is cathode active material of the lithium ion battery.The nickel cobalt manganese three yuan battery material as positive pole of battery are more safety than lithium cobalt oxide battery.Mainly used for small electric equipment.
MOQ: 500g
Product Name: |
LiNiMnCoO2 |
Type: |
TMAX-NCM-111 |
Application: |
Suitable for square aluminum,polymer,cylindrical battery |
||
Chemical Property |
|||
English Name: |
Lithium Nickel Cobalt Manganese Oxide |
||
Appearance: |
Black brown powder, stable under normal temperature and pressure |
||
Ni+Mn+Cu |
≥57.5 |
58.79 |
Consult GB/T1287-94.GB/T15899-1995.HG/T2631-2005: Volumetry |
Li |
7~8 |
7.29 |
Consult JY/T 015-1996: Inductively coupled plasma atomic emission spectrometry |
Na |
≤0.03 |
0.0036 |
|
Fe |
≤0.01 |
0.0032 |
|
Cu |
≤0.005 |
0.0001 |
|
H2O |
≤0.05 |
0.01875 |
Consult.GB/T606-2003 C30 Carle Fischer coulometric instrument |
Physical Characteristics |
|||
d10 |
≥5 |
6.66 |
Consult.GB/T19077.1-2008 Mastersizer2000 laser particle analyzer |
d50 |
9~12 |
10.11 |
|
d90 |
≤20 |
18.1 |
|
PH |
≤11 |
|
|
Tape Density: |
≥2.30 |
2.5 |
Consult GB/T5162-2006/ISO3953:1993; FZS4-4B Jolt density meter |
BET(m2/g): |
0.20-0.40 |
0.33 |
Consult GBT 13390-200Tristar specific surface area |
Electrical chemical performance |
|||
First discharge efficiency(%) |
≥85 |
87 |
Consult GB/T20252-2006 Appendix C Button half cell 0.2C 4.2v-2.7v |
First discharge capacity(mAh/g) |
≥148 |
145~150 |
