Cylindrical Battery Vacuum Electrolyte Filling Machine

  • Model Number:

    TMAX-JK-ZYJ-02
  • Type:

    Electrolyte Filling Machine
  • Max. Loading Capacity:

    0-7g
  • Net Weight:

    500KG
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

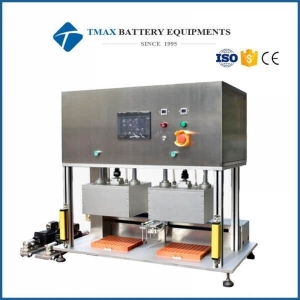

Cylindrical Battery Vacuum Electrolyte Filling Machine

1 TMAX-JK-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.

2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.


Specification

Source voltage

110V-220V AC, 50/60Hz Single Phase

Power

1500W

Warranty

One year limited and lifetime support

Suitable battery model

18650 / 26650 / 32650, For all kinds of cylindrical battery

Advantages

1. Customized die for all kinds of cylindrical cell types is available according to request

2. Adopt PLC and man-machine interface centralized control, easy operation.

3. Filling speed and times can be set

4. All the parameters such as vacuum time, air input time,

filling quantity and battery distance can be adjusted freely.

5. Vacuum box for static control independently

Vacuum filling accuracy

±0.02g

Vacuum filing time

1-10times adjustable

Vacuum filling quantity

0-7g

Vacuum degree

-0.1Mpa

Air supply

0.3-0.6MPa

Working clamps

18650 clamps battery tray 6 rows 8 columns(standard)

The clamps can be customized upon request
