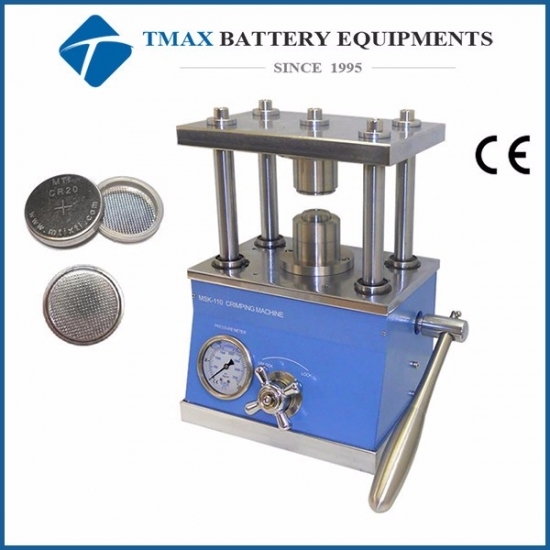

Manual Coin Cell Sealing Machine For Sealing Various Types Of Coin Cells

Standard Crimping Die

• One set of crimping die for CR2032, CR2025, and CR2016
• Optional die available from product option for crimping CR2325, CR2450, AG3, AG5
• PTFE Anti-Corrosion Core prevents coin cells from being short-circuited
• Die is consumable,  please click picture below to order replacement
• An Aluminum tray is included to put at the bottom of crimper for avoiding
• oil leakage by accident

Structure

Heavy Duty Steel Platform

Pressure

• Max. 8 metric Tons hydraulic pump with automatic pressure relief
• Max.200 Kg/cm2 on CR20XX series coin cell

Product Dimensions

• With handle positioned horizontally: 280mm(L) x 280mm(W)  x 333mm(H)
• Without handle: 228mm(L) x 176.8mm(W) x 333mm(H)
• Tray: 330mm(L) x 230mm(W) (See section Maintenance & Equipment Care below for more)

Compliance

CE Certified

Warranty

One Year limited warranty with lifetime support

(Rusted and damaged parts due to improper storage condition or

maintenance are not covered by warranty)

Application Notes

Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell)

Maintenance & Equipment Care

• Electrolytes are highly corrosive materials, therefore, the die set must be cleaned with ethanol after the completion of each experiment in order to avoid any corrosion damages. Also turn the hydraulic valve to Lock position when not in use.

Net Weight

26 kg (58 lbs)

Shipping Weight & Dimension

45 kg (100 lbs)  40" x 30" x 21"
