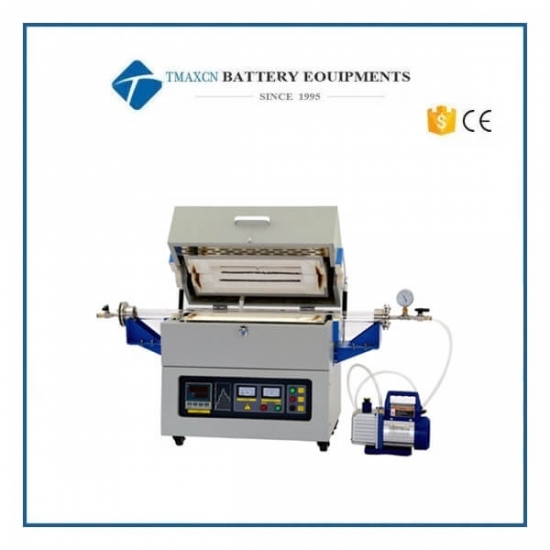

One-Zone 1800°C OD80mm Small Vacuum Tube Furnace

Model Number:
TMAX-1800Cfurnace
Dimension(L*W*H):
60mmOD x 1000mm L (Size can be customized)
Net Weight:
300Lb
Compliance:
CE certificate
Warranty:
Two years limited warranty with lifetime technical support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

One-Zone 1800°C OD80mm Small Vacuum Tube Furnace

TMAX-1800Cfurnace tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant..

Features

· Compact, portable and lightweight design.

· Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

· Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

· Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

· Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

· Built-in computer interface.

· Long life type S thermocouple.

Safety

1. Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2. Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

Specifications

Electrical requirements	110-240VAC, 50/60 Hz, single phase
Tube material	High purity (99%) Al2O3 alumina
Minimum working temperature	300°C (572°F)
Max. working temperature	1800°C (3272°F) for less than 5 hours
Constant working temperature	1750°C (3182°F)
Rated vacuum pressure	0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Rated positive pressure	0.02 MPa / 150 torr / 3 psi
Refractory lining	Mitsubishi (Japan) high quality 1900 grade fiber alumina
Heating element type	Kanthal (Sweden) 1900 grade Molybdenum Silicide (MoSi2)
Thermocouple type	B
Temperature controller	Shimaden fp93 (Japan) with 4 programs and 40 segments (i.e. 4 x 10 segments or 2 x 20 segments).
Max heating & cooling rate	5°C/min above 1200°C and 10°C/min below 1200°C (2192°F)
Heating/constant zone length	11" / 4"
Temperature controller precision	+/- 1°C
Vacuum sealing flange kit	Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.
CE compliance	Yes

80mm OD furnace detail specs

Tube size	80mmOD x 1m L
Installed heating element	8
Maximum output	5.5 KW
Furnace dimensions (LxWxH)	25 x 19 x 27"
Shipping dimensions (LxWxH)	47 x 35 x 39"
Shipping weight (Lb)	570

Standard Package

Part description	Quantity	Part image
tube furnace	1 pc
Stainless steel vacuum sealing flange set w/ pressure meter	1 set
Alumina tube 1000mm length	1 pc
Flow meter	1 pc
Spare heating element	2 pcs
Stainless steel hook	1 pc
Alumina ceramic thermal block	4 pcs
Thermal gloves	1 pair
Spare fuse	2 pcs
