Pouch Cell Electrode Die Cutter Machine for battery lab

  • Model Number:

    TMAX-MQ300
  • Type:

    Electrode Die Cutter
  • Dimension(L*W*H):

    Max.300mm(L) x 250mm(W)
  • Net Weight:

    120kg (265 lbs)
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION


Pouch Cell Electrode Die Cutter Machine for battery lab


TMAX-MQ300 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

High speed, high accuracy,long lifetime to make cut electrode without burr, to get a good consistency.


Specifications

Model

Battery Electrode Die Cutter Machine  TMAX-MQ300

Work voltage

AC110V/220V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Cutting Die

Customized according to customer's request

Safety Protection

Built in Safety Curtain to protect against hand injuires during electrode feeding

Double start press button

Cutting Accuracy

±0.1mm

Air Cylinder

5 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Cutting stroke

250mm

Feeding

Manually

 Yield

800 - 2000 pieces of electrodes per hour

Air Pressure

0.5-0.8Mpa

Dimension

(L*W*H)

580*455* 900mm

Net Weight

120kg (265 lbs)

Shipping Dimensions

47*75*109cm

Recommendation

For the pouch cell assembly, we also recommend you the following items:

forming machine             hot sealer     vacuum sealer

    Forming machine             Hot sealer with tab            Vacuuming sealer

ultrasonic welder           stacking machine    aluminium laminated film

  Ultrasonic tab welder        Stacking machine         Aluminum Laminated Film

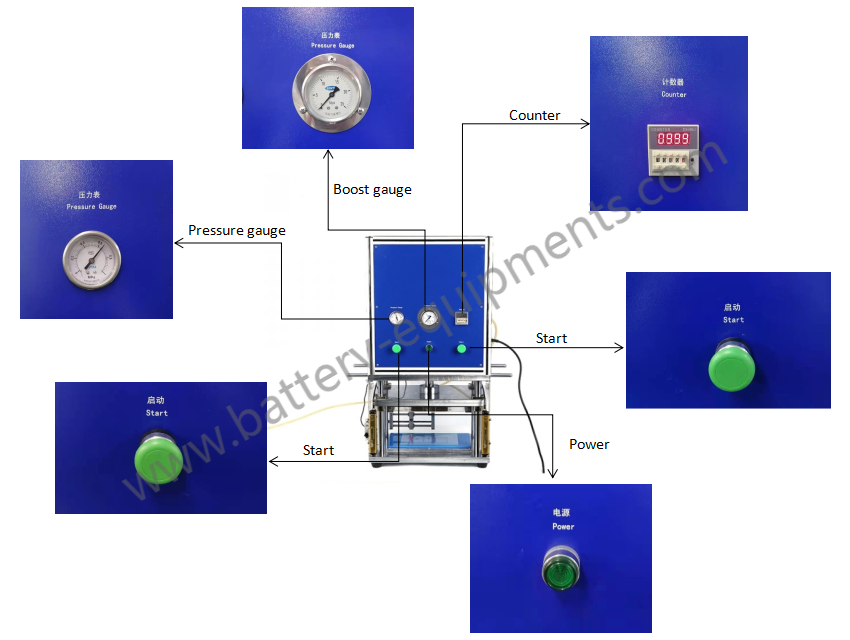

battery die cutter

battery die cutter

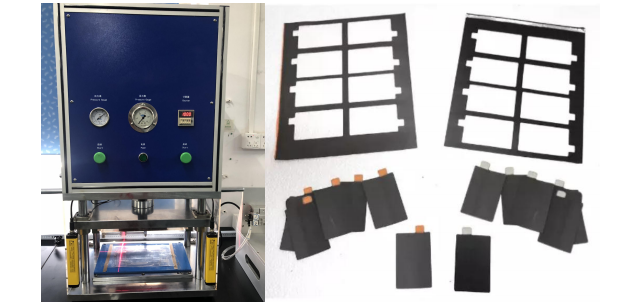

Semi-automatic Pouch Cell Battery Electrode Die Cutting Machine
