Separator Soaking And Coating Machine For Lithium Ion Battery Production
Model Number:
TMAX-PE-battery-sepaCompliance:
CE certificateWarranty:
Two Years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

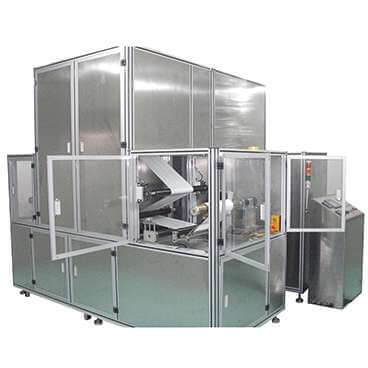

Separator Soaking And Coating Machine For Lithium Ion Battery Production
1.Applicable to lithium ion battery separator soaking and coating process.
2.Air shaft retractable reel, automatic tension control.
3.Adopt steam or heating tube heating method do dry the diaphragm.
4.Rolling motor adopts imported explosion-proof motor.
5.Photoelectric sensor corrects the reel double edge.
6.The machine outside adopts stainless steel material.
Technical parameters
|
Main technical parameters |
Performance |
|
Applicable roller width |
100mm-600mm |
|
Roller inner diameter |
Φ75mm |
|
Machine speed |
0-8 m/min |
|
Correction accuracy |
±0.2mm |
|
Depth of parallelism |
±0.2mm |
|
Air supply |
0.5-0.7MPa |
|
Source voltage |
AC110V-220V |
|
Power |
23KW |
|
Dimension(L*W*H) |
3000mm*1200mm*2500mm |
|
Weight |
680kg |
