Single Head Battery Electrolyte Filling Machine

  • Model Number:

    TMAX-JLB-10
  • Type:

    Electrolyte Filling Machine
  • Max. Loading Capacity:

    0-2.4ml adjustable
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

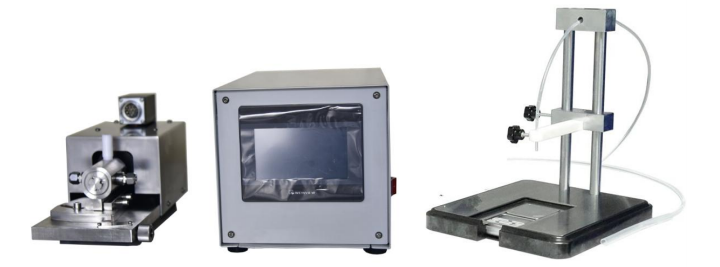

Single Head Battery Electrolyte Filling Machine


1. Working principle of injection pump

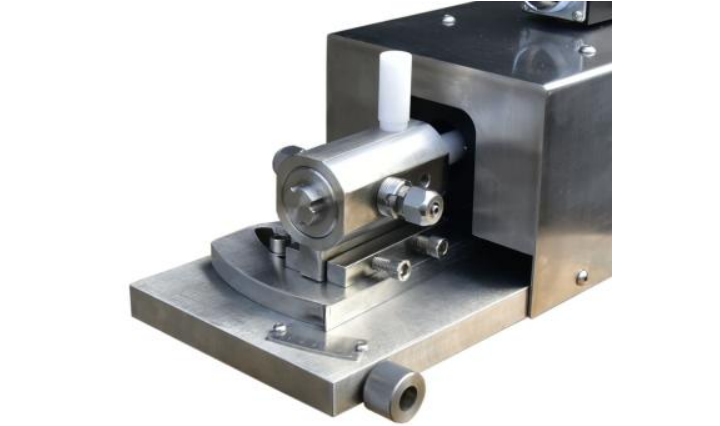

Rotary valve type liquid injection pump is a kind of power transmission device which converts electric energy into liquid kinetic energy. The ceramic plunger is driven by the stepper motor to rotate and reciprocate. The liquid is quantitatively pumped into the chamber through the liquid inlet, and then the liquid is pushed out of the chamber through the liquid outlet, and then injected into the equipment or product required by the user through the pipeline.


2. Characteristics of injection pump

2.1 high measurement accuracy:

After repeated tests with water, oil, electrolyte and other fluids, the repeatability accuracy of our injection pump is within ± 0.25%.

2.2 the control function is perfect and the operation is simple

The touch screen has a man-machine interface with digital buttons, which is convenient for parameter setting and state monitoring; it has perfect application functions, such as single-step or continuous operation, interval times and stop functions of the injection pump, as well as emergency stop, positive and reverse rotation, fault detection and other equipment control operation functions. The perfect function can meet the needs of customers and improve the utilization efficiency of injection pump.


Precision Ceramic Electric Liquid Injection Pump


Precision Ceramic Electric Liquid Injection Pump

Precision Ceramic Electric Liquid Injection Pump

Precision Ceramic Electric Liquid Injection Pump
