Single Point Spot Inverter Welder Machine
Model Number:
TMAX-BR320Input Power:
37kwCompliance:
CE certificateWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

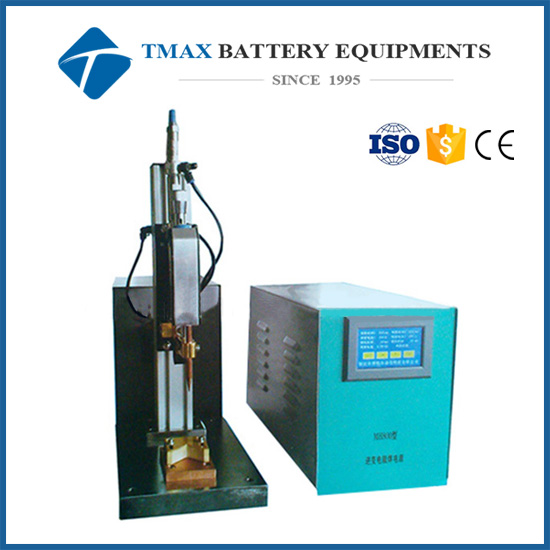

Single Point Spot Inverter Welder Machine
TMAX-BR320 inverter welding machine is a single point spot welding machine used for lithium battery cylinder cell Ni tab welding with stainless steel shell and Al tab welding with aluminum shell/can for inner side welding.
SPECIFICATIONS:
|
Model |
TMAX-BR320 |
|
Source voltage |
AC110/220V, 50/60HZ |
|
Welding current |
3000A |
|
Welding time |
5-1000ms adjustable |
|
Warranty |
Two years limited warranty with lifetime technical support |
|
Power |
35KW |
|
Air supply |
0.5-0.7MPa |
|
Welding ability |
Single/multi-layers Ni strap or copper strap welding with stainless steel shell bottom. Single/multi-layers Al strap welding with aluminum can bottom. |
