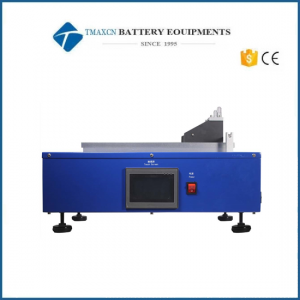

Tape Casting Electrode Film Coating Machine with Vacuum Chuck and Adjustable Film Applicator

  • Model Number:

    TMAX-AFA-III
  • Input Power:

    600W
  • Dimension(L*W*H):

    10 - 800 mm adjustable
  • Net Weight:

    About 80kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
DESCRIPTION



Tape Casting Electrode  Film Coating Machine with Vacuum Chuck and Adjustable Film Applicator


Electric doctor blade coater is widely used in various coating researches, such as ceramic film, crystal film, battery material film, special nano film. The working plate is a flat vacuum chuck, with a thickness adjustable analog film applicator. Please noted that this coater without heating function.


*The coating speed is adjustable within the range of 0~120mm/sec;

*Vacuum aluminum plate, which can quickly place or remove the substrate;

*The effective coating area can be customized;

*With a micron-level adjustable film applicator (scale 10um), a scraper with a width of 100mm;

*Small size, can save space;

*The appearance is exquisite, and the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;



Model

100-250

150-250

250-300

250-350

250-500

250-800

Effective coating

area(mm, size can be customized)

100 x 250

150 x 250

250 x 300

250 x 350

250 x 500

250 x 800

Stroke length

(mm, length adjustable)

10 - 250

10 - 250

10 - 300

10 - 350

10 - 550

10 - 800

Vacuum chuck

dimensions

(mm, W*L, , size can be customized)

100 x 365

150 x 365

250 x 400

250 x 450

250 x 650

250 x 900

Power supply

220V/50Hz

Coating speed

0 - 120 mm/sec variable; accuracy: 10mm/sec

(The coating speed range can be customized)

Vacuum pump

(Optional)

One oil free vacuum pump

Film applicator

One standard film applicator is included as below:

*Analog film applicator with fix coating width

*0~3mm gap/coating thickness adjustable

*Coating accuracy: ±3μm

Optional parts:

Digital micrometer

Adjustable width

Different gap/coating thickness

Surface finish

10

Surface roughness

Ra0.1

Vacuum board

material

5052 Aluminum alloy

Compliance

CE Certificate

Warranty

One year limited warranty with lifetime support
