Three-Zone 1200°C Tube Furnace W/ Kanthal (Sweden) Heating Elements

  • Model Number:

    TMAX-1200℃-three-fur
  • Dimension(L*W*H):

    60mmOD x 1300mm L (Size Can Be Customized)
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

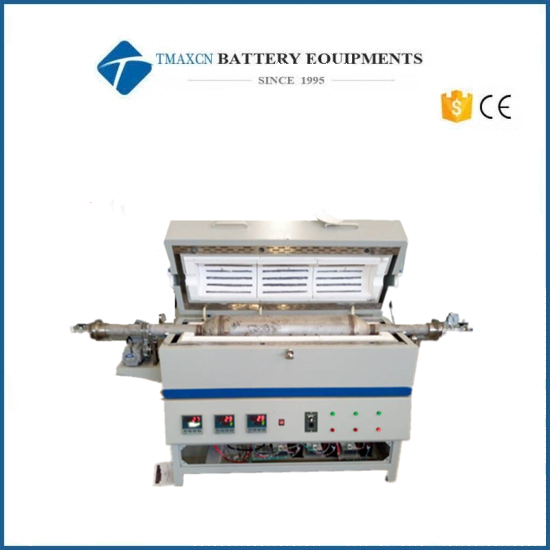

Three-Zone 1200°C Tube Furnace W/ Kanthal (Sweden) Heating Elements




TMAX-1200℃ three furnace series 3-zone tube furnaces feature the famous Kanthal (Sweden) resistance wire as their heating elements. Furnace hearth is built with Mitsubishi (Japan) high quality fiber materials. Temperature of this furnace is controlled by high precision temperature controller (Shimaden fp93 from Japan) with +/-1 °C accuracy and 40 programmable segments. Furnace housing is built with double-layer steel and two cooling fans inside keep the furnace body temperature low. Furnace tube is sealed by stainless steel vacuum sealing flanges, it can be used under vacuum and other gases condition. This tube furnace is an ideal tool for sintering all types of materials/chemical. Great for labs or college scientific research use.

These furnaces have built-in interface to a computer. We provide connection cable, adaptor and software that can be used to control the temperature and parameters of the furnace, all from your PC! You can also save a temperature curve for record or study purposes. All our furnaces have CE certificate.

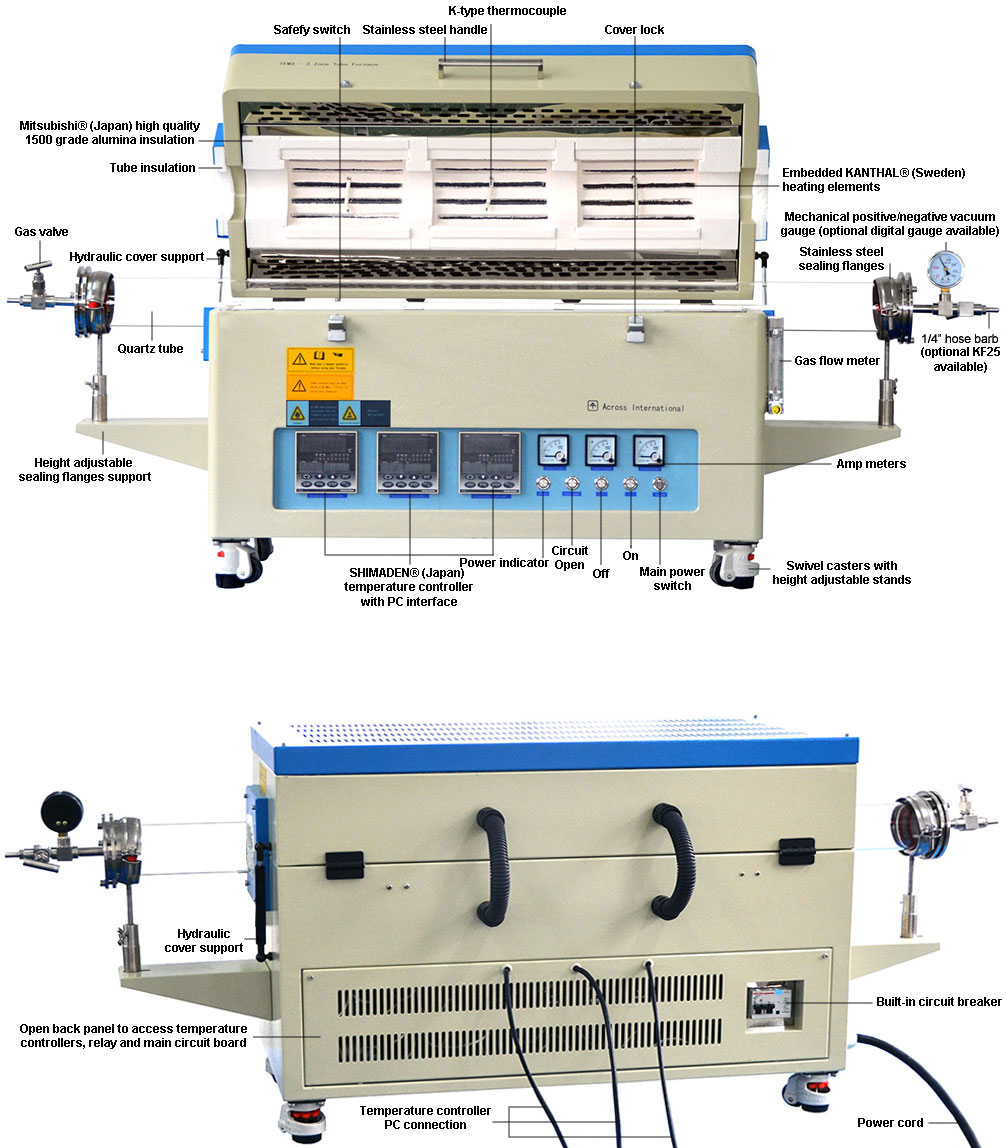

Tube Furnace

General specifications

 Electrical requirements

 208-240VAC, 50/60 Hz, single phase

 Tube material

 Quartz

 Min. working temperature

 Ambient

 Max. working temperature

 Zone1/Zone2/Zone3: 1200°C

 Max. constant working temperature

 Zone1/Zone2/Zone3: 1100°C

 Constant working temperature under vacuum

 Zone1/Zone2/Zone3: 1000°C

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Refractory lining

 Mitsubishi (Japan) high quality 1600 grade fiber alumina

 Heating element type

 Zone1/Zone2/Zone3: Kanthal (Sweden) resistance coil wire

 Thermocouple type

 Zone1/Zone2/Zone3: K

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (i.e. 4 x 10 segments or 2 x 20 segments)

 Max heating rate

 20°C/min

 Recommended heating rate

 10°C/min

 Heating zone length

 Zone1: 8 inches Zone2: 8 inches Zone3: 8 inches

 Constant temperature zone length

 Zone1: 4 inches Zone2: 4 inches Zone3: 4 inches

 Temperature controller precision

 +/- 1°C

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one vacuum gauge,
 two valves and four thermal ceramic blocks.

 CE compliance

 Yes


Size comparison


 Tube size (OD x length)



 60mm x 1300mm



 100mm x 1300mm



 150mm x 1300mm


 Maximum output




1.5 kW x 3





2 kW x 3


 2.5 kW x 3




Standard Package


Part description




  Quantity




Part image



  tube furnace

 1 pc


 Stainless steel vacuum sealing flange set w/ pressure meter

 1 set


 Quartz tube

1 pc


 Flow meter

 1 pc


 Stainless steel hook

 1 pc



 Alumina ceramic thermal block

 4 pcs


 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set

 Furnace and Shimaden controller manual

1 pc


tube furnace
