0-15T Manual Hydraulic Press Heatable Die For Cold Sintering Process (CSP)

  • Model Number:

    YLJ-CSP-15
  • Dimension(L*W*H):

    340 mm L x 200 mm W x 420 mm H
  • Net Weight:

    44 lbs
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

0-15T Manual Hydraulic Press Heatable Die For Cold Sintering Process (CSP)

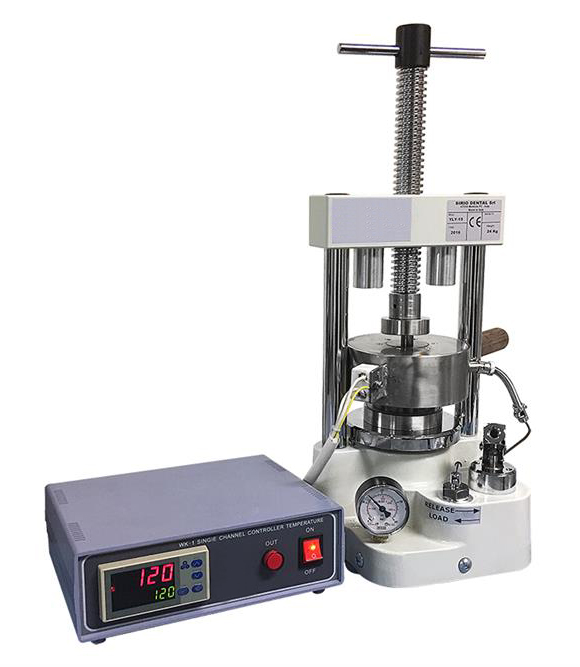

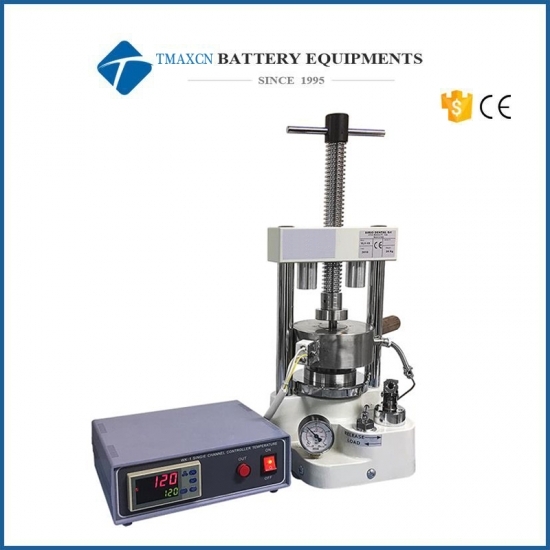

YLJ-CSP-15 is a 15T Max. manual hydraulic press with heatable uniaxial die (0.5" ID) upto 250 ºC max. It is designed for cold sintering process (CSP) of ceramic, polymer, or ceramic-polymer composite materials for applications such as microwave dielectric materials, solid state electrolyte, and semiconductor. The compact design of the press makes it well-suited for inside glove box operation with an inert gas environment.

SPECIFICATIONS:

Working Pressure Range

·         0~15 Metric Tons

Gauge Pressure Value to Force Conversion



Gauge Displayed Pressure Value (Bar)

50

100

150

200

250

300

350

400

Actual Force Applied on the Hydraulic Cylinder (Ton)

1.9

3.8

5.8

7.7

9.6

11.5

13.3

15.4

Actual Pressure Applied on 0.5" ID Die (MPa)

147

294

441

588

735

882

1029

1176

Notes:

·         Displayed Pressure Value to Actual Applied Force Conversion: 26 bar = 1 Ton

·         The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece

·         For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:

          P = T/(πr^2) x g x 10


o    P: Pressure (MPa) applied on your working piece

o    T: Force (Ton) applied on the Hydraulic Cylinder

o    g: Standard gravity. g ≈ 9.8 m/s2

o    π: ~3.14

o    r: Radius (cm) of the working piece

o    *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2

Pressure Stability

·         <1 MPa /10 min

Heatable Dies

·         0.5" ID heatable dies with high strength tool steel of hardness >RC60

·         Optional: Die with electric insulating BN liner is available at extra cost for researching sample's conductivity vs pressure

·         For larger heatable dies such as 1.5" ID, please choose the 40T electric hydraulic CSP press

Working Temperature Range

·         50 - 250 ºC

Temperature Control


·         30 segments programmable digital temperature controller with overheating protection

·         PID auto-tune function with +/- 1 ºC stability

Power

·         Standard: 208  VAC (single phase)

·         Optional: Please order a 1000W 110V-220V transformer for using under 110 V

Bottom Hydraulic Cylinder Travel Distance

·         0 - 13 mm

Top Support Screw Adjustable Height

·         215 mm

Dimension of Working Space Under Frame

·         D1: 120 mm  D2: 70 mm  D3: 124 mm  H1: 180 mm   H2: 155 mm

Press Dimensions

·           340 mm L x 200 mm W x 420 mm H

Net Weight

·         20 kg (44 lbs)

Warranty

·         Two years limited warranty with lifetime support

Compliance

·         CE Certified

Application Notes

·         Thoroughly clean the die pieces immediately after the use to avoid corrosion from the cold sintering process!

·         To avoid pressing die cracking, assemble all the pressing die pieces without the sample before the CSP experiment and pre-heat them without applying pressure.

·

·         Warning: Customers must always wear protection goggles during operation !!!

·         Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (13 mm)

·         This compact press can be placed inside various glove boxes for cold sintering process of air sensitive materials under inert gas
