0-50T Electric Hydraulic Cold Isostatic Pressing (CIP)

  • Model Number:

    YLJ-CIP-50A
  • Net Weight:

    200 Kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

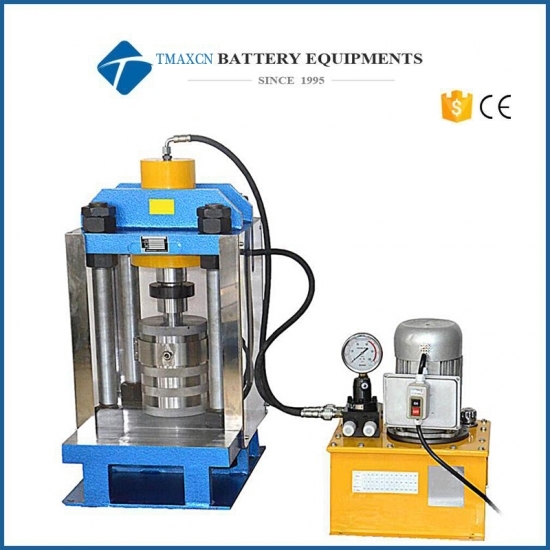

0-50T Electric Hydraulic Cold Isostatic Pressing (CIP)

YLJ-CIP-50A is a electric cold isostatic pressing (CIP) machine operated via electric motor  with 50mm ID x 150mm H chamber up to 250 Mpa. It is an excellent tool for preparing much high-density ceramic rod, disk or target. compared to dry die pressing.

Specifications:

Voltage

AC 208~240V, 50/60Hz

Power

330W

Hydraulic Cylinder Pressure

0 - 50 T

Bottom Cylinder (Piston) Traveling Distance

50 mm Maximum

CIP Vessel Size

50 I.D. x 150H, mm

Vessel Pressure


·         0 - 250 Mpa

·         1 Mpa  / 5 min

Gauge Displayed Pressure Value (Mpa)

Actual Force Applied on the Hydraulic Cylinder (Ton)

15

30

50

CIP Die Pressure (Mpa) vs 5 CM ID Vessel

76

153

255

Dimension of Working Space



D1: 180mm
D2: 210mm
D3: 150mm
H1: 450mm
H2: 400mm

Dimension of Machine

450 (L) X 430(W) X 1020 (H), mm

Net Weight

200 Kg

Compliance

CE Certified

Warranty

Two years limited warranty with lifetime support

Warning

·         Never let the press holding the target pressure for more than 8 minutes,

·         It's normal that the target pressure decreases a little bit during the pressure holding time, do not press the red nor the green button in this period.

·         Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing

·         Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (50mm)



Packing List:

Name

Qty

1

Main machine (50T Electric hydraulic pressing machine)

1 unit

2

CIP pressing die

1 set

3

Seal kit

1 set

4

Black Rubber Rings O.D 2"

5 pcs

5

Holding bar (for carrying the CIP pressing die)

2 pc

6

Pressing oil

1 bottle

7

Hex-socket wrench (for top pressing die and degassing)

1 pc

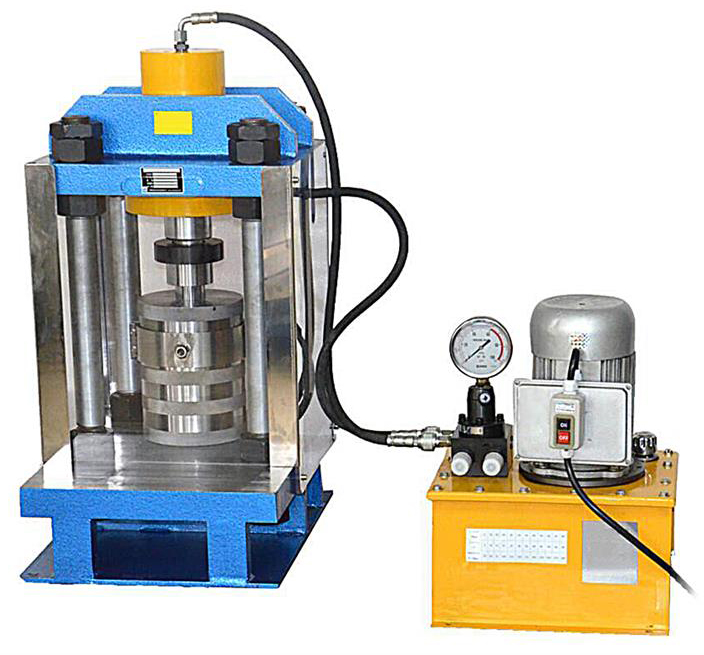

Hydraulic Cold Press



 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
