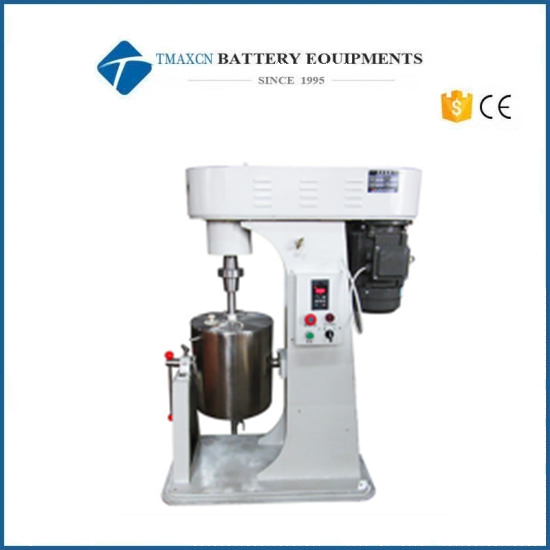

0.5L-500L Electric Lifting And Stirring Ball Mill

  • Model Number:

    TMAX-SFM-8
  • Type:

    Planetary Ball Mill
  • Input Power:

    150W
  • Dimension(L*W*H):

    460 x 460 x 610mm
  • Net Weight:

    22KG
  • Compliance:

    CE certificate
  • Warranty:

    1 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

0.5L-500L Electric Lifting And Stirring Ball Mill


Working Principle:

The spindle driven the agitator do high speed rotating, make the grinding medium to do irregular movement. The grinding medium

would be collided, extruded, friction and sheared because of the disorderly movement, so pulverized, finely grounded the material.

Further, if the size, shape and ratio of the grinding media is different, the grinding effect would also different . Under normal circumstances,

the greater the specifications of the grinding medium,the more coarse material crushing; Conversely, the smaller the grinding media,

the finer the grinding materials. The abrasive effective would be better with appropriate ratio of different grinding media’s specifications,

coupled with the appropriately adjusting for speed.


Product Features:

1.High energy utilization, and can get a very high power density, so saving energy;

2.Product size is easy to be adjusted,ensure the final degree of fineness by adjusting the

residence time of material in the barrel;

3.Small vibration, low noise;

4.Simple structure, easy to operate;

5.It can achieve various of process parameters requirement, product continuously or intermittently

according to the need;

6. It can be well controlled grinding temperature because the milling cylinder has a jacket;

7. Can produce devices with a variety of special features according to the need, such as: the timer,

speed control mode, circulation method, temperature regulator etc;

8. Can select grinding cylinder with different materials (stainless steel, corundum ceramics, polyurethanes, zirconium, etc.) and stirring device.


The electric lifting and stirring ball mill is mainly composed of a stationary grinding cylinder filled with small diameter grinding medium, a stirring device and other auxiliary devices (such as circulation device, cooling device, timing, speed control, etc.), with high grinding efficiency and small grinding particle size, which can well meet the requirements of various process parameters, simulate various indicators in production, and at the same time, because of its small batch, low power consumption and low price Its advantages are that school, research unit and company are the first choice equipment for grinding technology, new materials and coating research. It is widely used in the production of zirconium silicate, zirconium, alumina, ceramics, chemical industry, electronic materials, magnetic materials, paper-making, coatings, non-metallic minerals, new materials, paints, graphite, calcium carbonate, pharmaceutical and other ultra-fine powders.


Specification


Experimental mini type

Experimental light type

Production configuration

Volume (L)

0.5~3

5~20

30~500

Jar Material

Stainless steel,

ceramic,corundum,

zirconia,polyurethane etc.

Stainless steel, ceramic,corundum,

zirconia,polyurethane etc.

Stainless steel,ceramic,corundum,

zirconia,polyurethane etc.

Feed size

Less than 5mm

Less than 20mm

Less than 20mm

Discharging size

Less than 1um

Less than 1um

Less than 1um

Rotate speed (r/min)

1400,2800 and adjustable

50~500

50~500

Speed adjustment mode

Electronic speed control

Fixed speed or frequency control

Fixed speed or frequency control

Power

120~550W

1000~5500W

1000~7500W

applications


stirring ball mill1

stirring ball mill2

stirring ball mill3
