1-380mm Width Positioning Color Tracing Slicer Cutting Machine
Model Number:
TMAX-HZX-100S1Type:
AutomaticNet Weight:
30-60KGCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

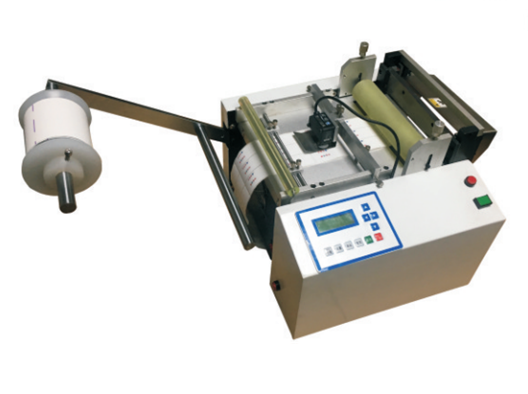

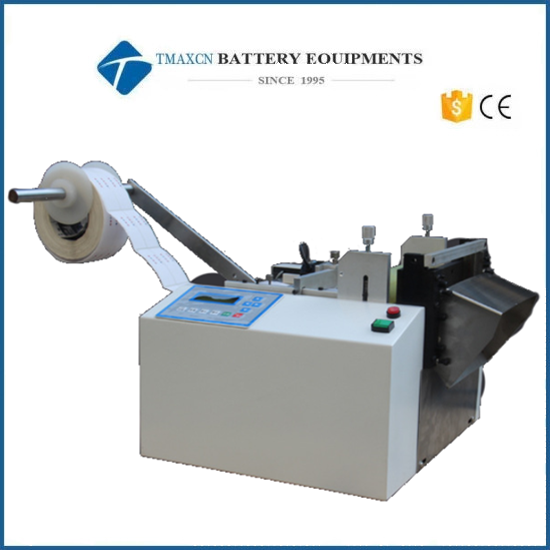

1-380mm Width Positioning Color Tracing Slicer Cutting Machine
Features

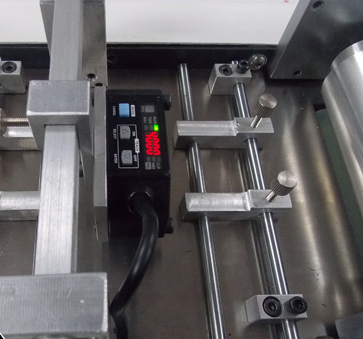

TMAX-HZX-100S1 positioning color tracing slicer adopts imported optical fiber as electronic eye detection tool, with high sensitivity and fast response, and can accurately detect materials in high-speed operation;
Equipped with liquid crystal display, simple and intuitive, so that the operation becomes more simple, clear key instructions, let people at a glance. Novices can also get started quickly;
Automatic cutting, only need to input the distance between the two marks can be fully automatic processing;
Cutting speed : 100 times per minute ( 50mm length , for example)

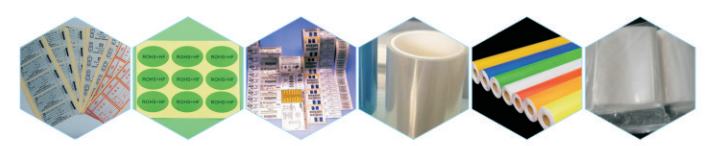

Cuttable materials: Non drying adhesive , label film , reflective film , plastic film , protectivefilm , mobile phone film , flat film , etc .
Specification
|
Model |
Cutting Tool |
Speed (mm) |
Weight (kg) |
Cutting Width (mm) |
Cutting Length (mm) |
Precision (mm) |
Cutting Thickness (mm) |
|
HZX-100S |
Upper and lower knives |
34 |
30 |
1-95 |
0-9999.9 |
0.1 |
0.5 |
|
HZX-200S |
Upper and lower knives |
34 |
38 |
1-180 |
0-9999.9 |
0.1 |
0.5 |
|
HZX-300S |
Upper and lower knives |
34 |
45 |
1-280 |
0-9999.9 |
0.1 |
0.7 |
|
HZX-400S |
Upper and lower knives |
34 |
60 |
1-380 |
0-9999.9 |
0.1 |
0.8 |
