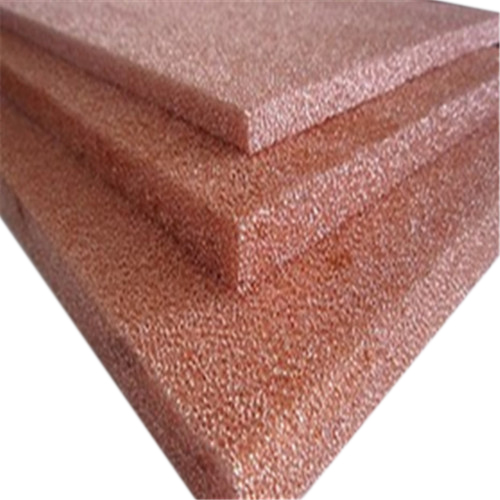

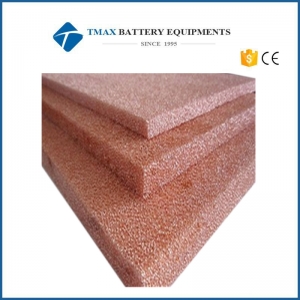

1-6 mm Thickness Copper Foam For Lithium battery and Capacitor
Model Number:
TMAX-copperfoam1Dimension(L*W*H):
1-6 Mm ThicknessCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
1-6 mm Thickness Copper Foam For Lithium battery and Capacitor
1 Copper foam has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.
2 The copper foam can be also used as Heat sink materials, heat absorption materials, chemical catalyst carrier, electromagnetic shielding materials, filtration materials, damping materials, battery electrode materials, deadening, high-grade decorative materials.
Specifications
Model : TMAX-copperfoam1
Material : Copper foam, Purity> 99.99%, Sold in roll or sheet.
The aperture : 0.2mm
Porosity : ≥98%, (110 Pores per Inch, or customized as request )
Through Hole Rate:≥98%
Bulk density : 0.1-1.5g/cm3
Dimension (Thickness* Length*Width)
|
3mm*300mm*200mm |
2mm*500mm*500mm |
2mm*100mm*100mm |
|
1.6mm*200mm*300mm |
1.6mm*100mm*100mm |
1.5mm*200mm*300mm |
|
1.0mm*300mm*200mm |
1mm*500mm*500mm |
0.5mm*100mm*100mm |
|
0.3mm*100mm*100mm |
0.2mm*100mm*100mm |
0.1mm* 100mm*100mm |
|
80um*100mm*100mm |
30um*100mm*100mm |
The size can be customized |
