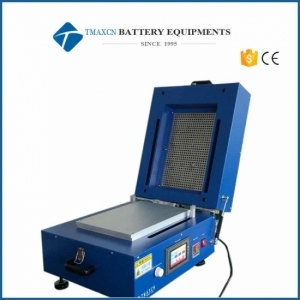

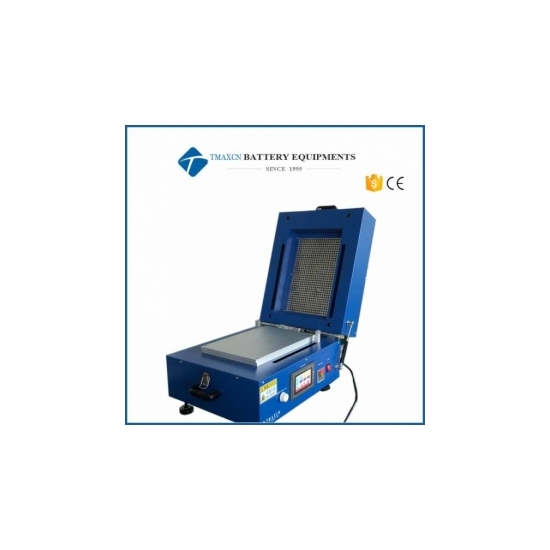

10 - 800 mm adjustable Heat Coating Machine with Vacuum Chuck and Adjustable Doctor Blade

  • Model Number:

  • Input Power:

  • Dimension(L*W*H):

    10 - 800 mm adjustable
  • Net Weight:

    About 80kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Year limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now

10 - 800 mm adjustable Heat Coating Machine with Vacuum Chuck and Adjustable Doctor Blade

TMAX-AFA-II is a compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on various types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin film coatings. This product is widely used in various high temperature film research, such as ceramic film, crystal film, battery material film, special nano film.

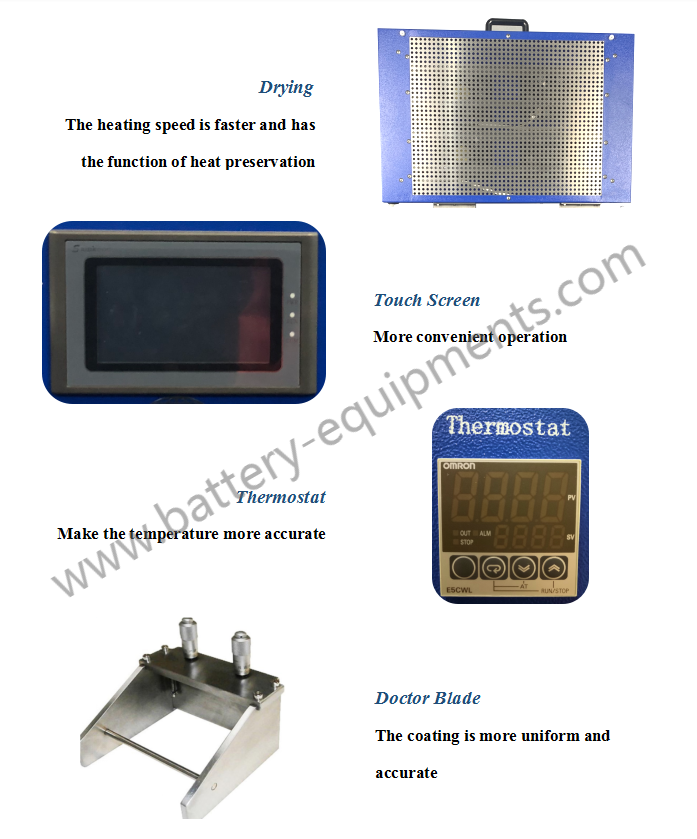

*Large area uniform heating is adopted to ensure high precision and uniform temperature in the cavity;

*Plate coating, motor driven scraper/film applicator coating, coating speed is stable and adjustable;

*The film coating speed is adjustable, the vacuum aluminum plate can quickly fix or remove copper foil, aluminum foil, etc., and the vacuum pump is included for your immediate use;

*One film applicator is included, high precision and coating thickness adjustable;

*It can be used in glove box, easy to operate, small size and space saving;

*Upgraded PLC touch screen control, easy to set parameters.









Effective coating

area(mm, size can be customized)

100 x 250

150 x 250

250 x 300

250 x 350

250 x 500

250 x 800

Stroke length

(mm, length adjustable)

10 - 250

10 - 250

10 - 300

10 - 350

10 - 550

10 - 800

Vacuum chuck


(mm, W*L, , size can be customized)

100 x 365

150 x 365

250 x 400

250 x 450

250 x 650

250 x 900

Power supply

110VAC or 220VAC

Coating speed

0 - 120 mm/sec variable; accuracy: 10mm/sec

(The coating speed range can be customized)

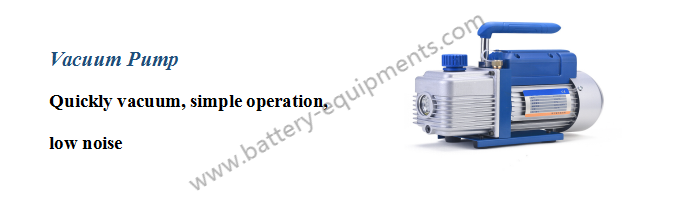

Vacuum pump


One oil free vacuum pump

Film applicator

One standard film applicator is included as below:

*Analog film applicator with fix coating width

*0~3mm gap/coating thickness adjustable

*Coating accuracy: ±3μm

Optional parts:

Digital micrometer

Adjustable width

Different gap/coating thickness

Heating function


Platen heating(standard)

1. Heating on the vacuum chuck/coating plate
2. Built in digital temperature controller with accuracy of +/-1°C
3. Max. Heating Temp: 120°C

4. You can choose to have the cover or not, with cover, it will faster the drying speed as it will keep the

Top cover heating

1. Heater pre-installed on the top cover

2. Built in digital temperature controller with accuracy of +/-1°C

3. Suspension support helps open cover easily and safely

4. Max. Heating Temp: 200°C

Surface finish


Surface roughness


Vacuum board


5052 Aluminum alloy


CE Certificate


One year limited warranty with lifetime support

pouch cell machine

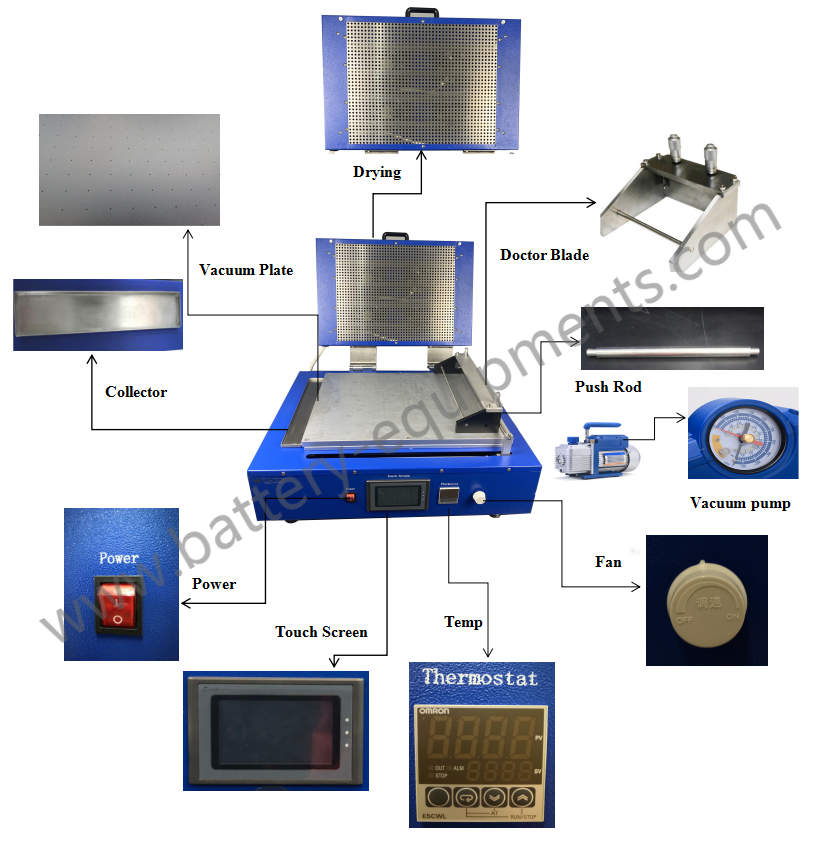

heat coater

battery coater

battery coater

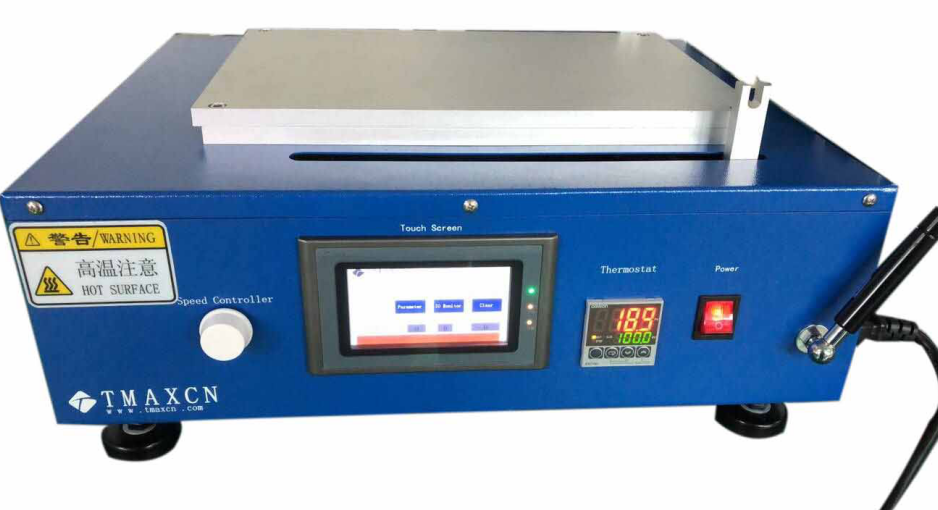

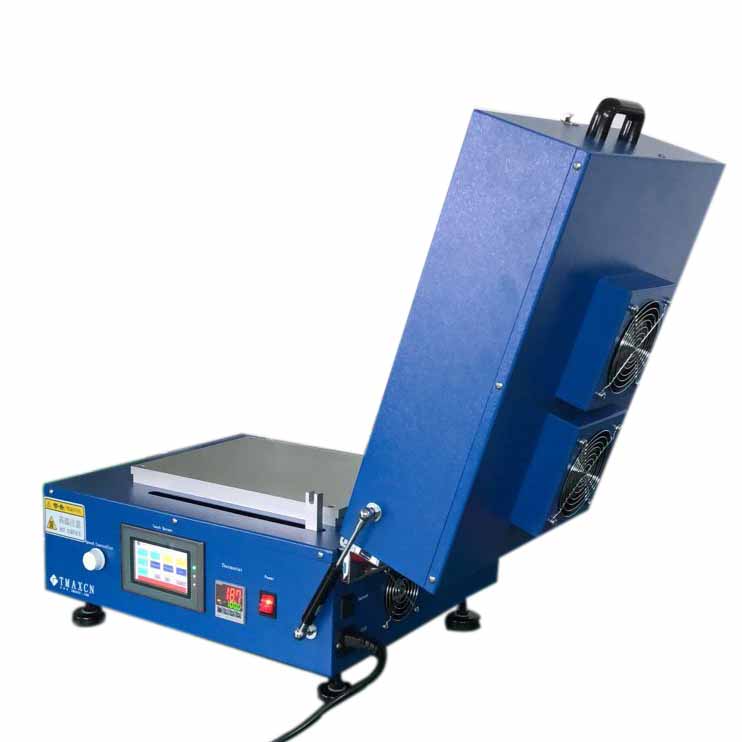

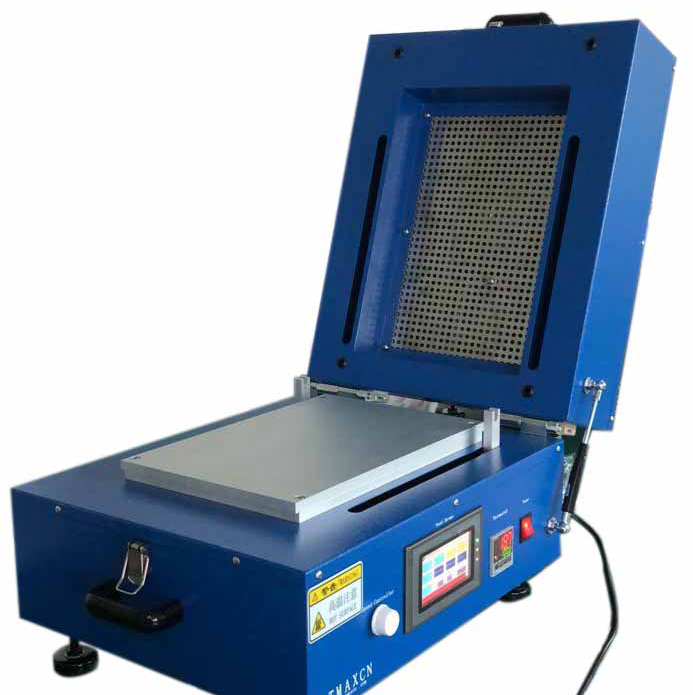

film coating machine

film coating machine

film coating machine


 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
