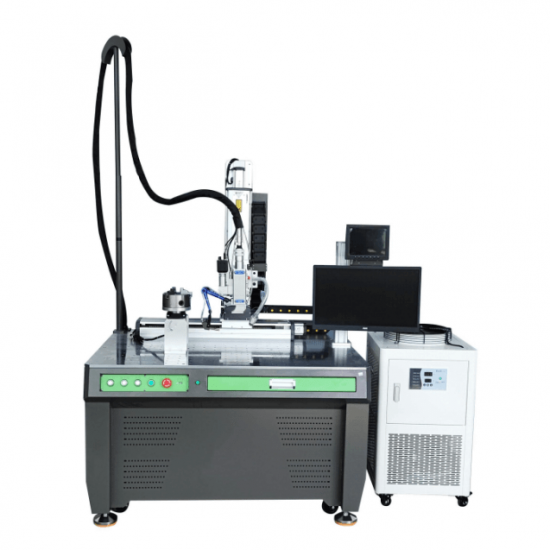

1000W-3000W Fiber Continuous Laser Welder for Prismatic Battery Connector Welding
Model Number:
TMAX-DPH-1000ZD3-CWCompliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western Union
1000W-3000W Fiber Continuous Laser Welder for Prismatic Battery Connector Welding
Principle Of Laser Welding:
After a series of processing, the laser emitted by the laser generator highly concentrates the energy in a very small range after focusing by the lens. If the processed material absorbs the laser better, the material in the irradiated area will rise rapidly because it absorbs the laser energy. According to different material properties(such as melting point, boiling point and temperature of chemical change), the workpiece will undergo a series of physical or chemical changes, such as melting, gasification, oxide formation, discoloration and so on.
Main Configuration Table:
|
Name |
Qty |
DPH-1000ZD3-CW-CX- W-533 |
DPH-1500ZD3-CW- CX-W-533 |
DPH-2000ZD3-CW-CX- W-533 |
DPH-3000ZD3- CW-CX- W-533
|
|
Laser (W) |
1 set |
TMAX1000 |
TMAX1500
|
TMAX2000
|
TMAX3000
|
|
Cooling-Water Machine |
1 set |
HL-1000 |
HL-1500 |
HL-2000
|
HL-3000
|
|
Welding Head (Including CCD + Monitor) |
1 set |
ND26/ND15(Optional) |
ND26/ND15(Optional)
|
ND26/ND24(Optional)
|
ND40/ND24(Optional)
|
|
XYZ Axis Stroke mm (Stroke can be customized) |
1 set |
500*300*300 |
500*300*300
|
500*300*300
|
500*300*300
|
|
Control System (Optional) |
1 set |
C6L Four Axis/C6S Six Axis |
C6L Four Axis/C6S Six Axis
|
C6L Four Axis/C6S Six Axis
|
C6L Four Axis/C6S Six Axis
|
|
Industrial Computer
|
1 set
|
PCI Computer keyboard and mouse with display
|
|||
|
Servo (XY Axis)
|
2 sets
|
Panasonic 400W large inertia (including driver), 1 set of XY
|
|||
|
Servo (Z Axis)
|
1 set
|
Panasonic 400W large inertia belt brake (including driver)
|
|||
Model Description:
555 means the stroke is 500 * 500 * 500
ZD3 is 3-axis and ZD4 is 4-axis. It is customized according to customer requirements. Non standard fixtures are made by our professional engineers and teams
