100T Electric Isostatic Press For Lab Research
Model Number:
TMAX-DTJ-TZCompliance:
CEWarranty:
One year warranty,one stop service,provide full solutionsPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

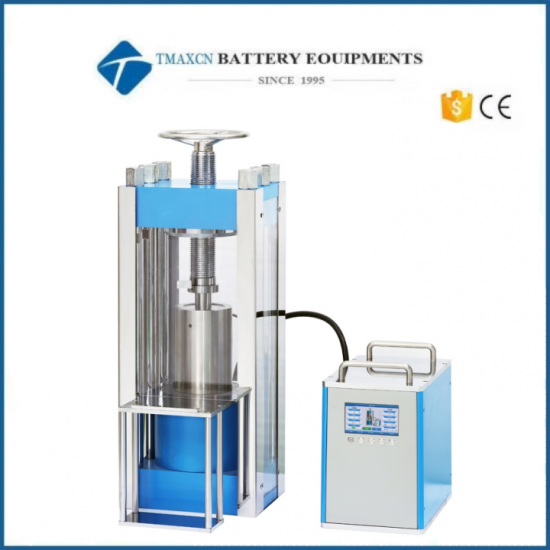

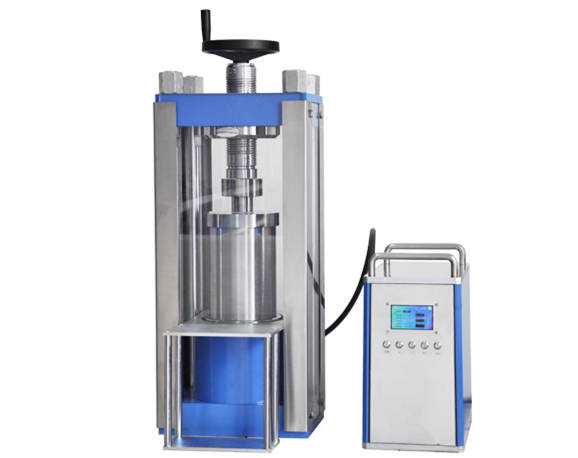

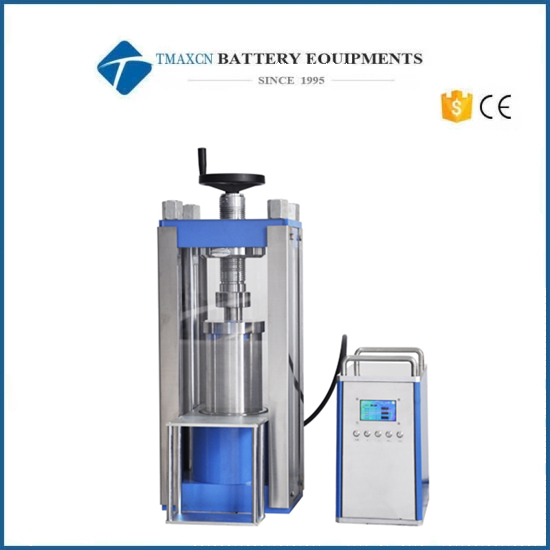

100T Electric Isostatic Press For Lab Research

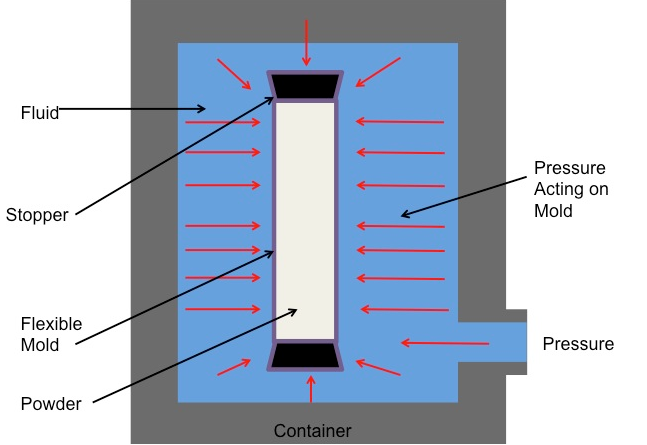

The isostatic press is suitable for users who have strict requirements on the uniformity / density of sample forming. It can directly shape the powder through the isostatic pressure chamber, or it can make the density of the formed sample more uniform by the secondary pressure forming. It has been widely used in various industries such as scientific research, teaching, testing, pharmaceutical, catalysis, chemical and other laboratories.
DYJ-TZ series electric dynamic and static press adopts the split structure, which has the characteristics of large tonnage, large working space, etc. it meets the needs of users who need large-scale sample test. The full-automatic programmed intelligent operation: program pressurization/slow pressurization - pressure maintaining - pressure supplement - timing pressure relief, etc. the steel plate protection is equipped with plexiglass protection door, which makes the operation and production safer, more stable and convenient.
Specifications
|
Model |
DJY-100TZ |
DJY-150TZ |
|
Pressure range |
1-100T/0.1t |
1-150T/0.1t |
|
Piston diameter |
Φ200mm Chrome cylinder |
Φ250mm Chrome cylinder |
|
Maximum cylinder stroke |
50mm |
|
|
Pressurization mode |
Electric pressurization |
|
|
Pressurization process |
Intelligent full-automatic, program pressurization / slow pressurization - program pressure maintaining - program pressure supplement - timed pressure relief |
|
|
display |
4.3 "LCD |
|
|
Pressure holding time |
0-999.59（min.sec） |
|
|
Pressure conversion |
Program automatic conversion of die sample pressure (MPA) |
|
|
Equipment protection |
Steel plate protection with plexiglass door |
|
|
Equipment structure |
Split structure |
|
|
Equipment power supply |
220V（50Hz/60Hz） |
|
|
Isostatic pressure chamber size |
Φ60×150mm |
Φ80×150mm |
|
Isostatic chamber pressure |
0-300Mpa |
0-300Mpa |
|
working space |
260×400mm（W/H） |
280×400mm（W/H） |
|
Boundary dimension |
850×500×1100mm |
950×550×1150mm |
|
Equipment weight |
580kg |
680kg |

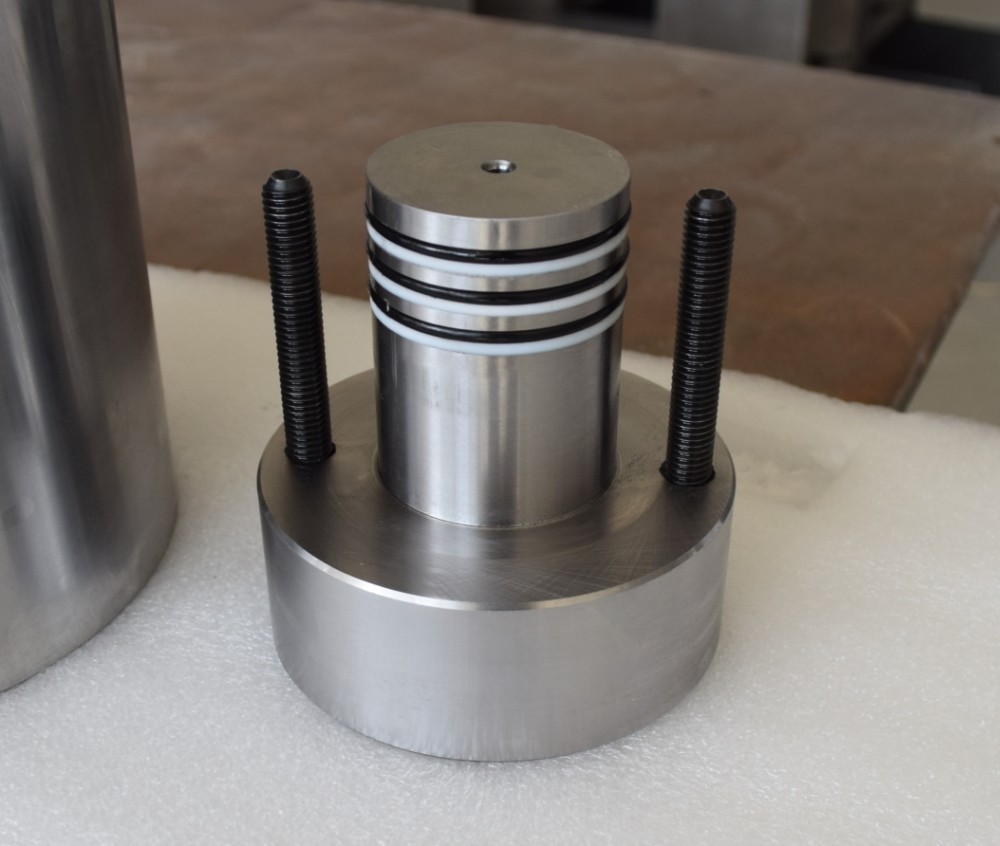

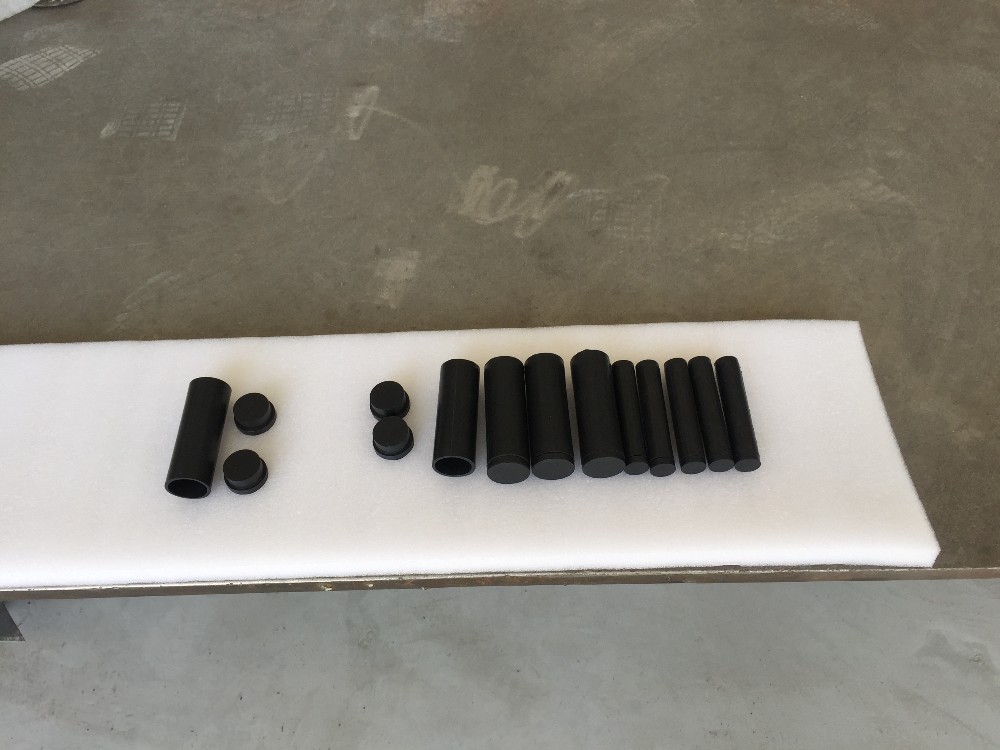

Optional parts: Rubber Mold

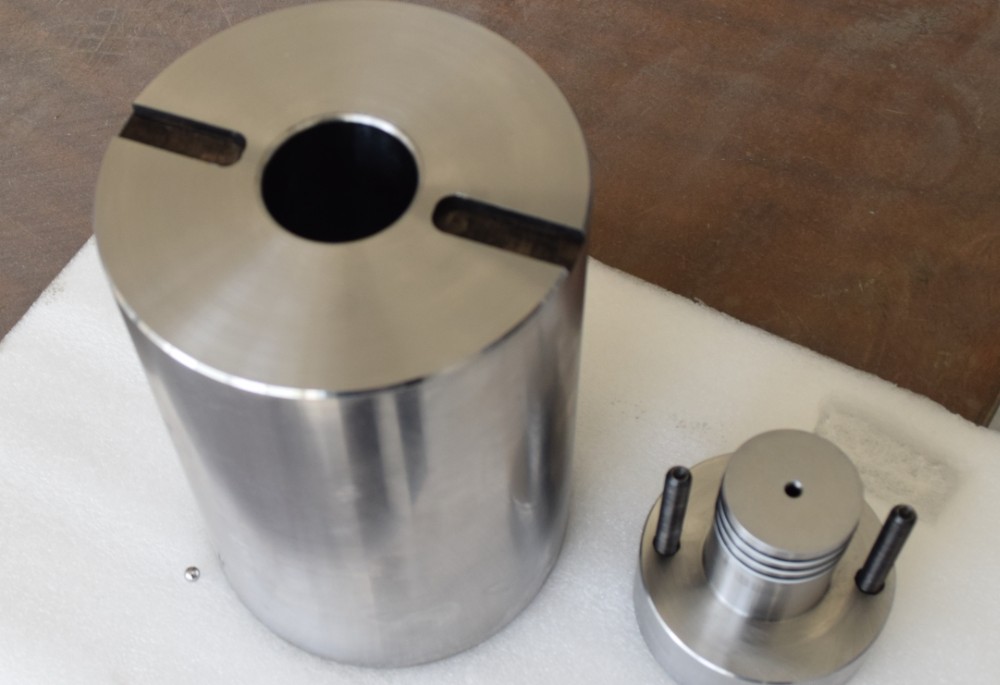

CIP Stainless steel tank
Sealing cap
