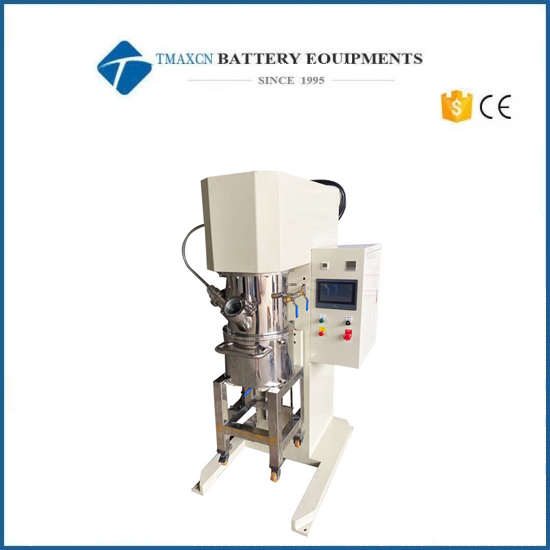

10L Laboratory Vacuum Planetary Mixing Mixer Machine

  • Model Number:

    TMAX-SXJ-10L
  • Type:

    Planetary Mixer Machine
  • Compliance:

    CE certificate
  • Warranty:

    2 Years with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

10L Laboratory Vacuum Planetary Mixing Mixer Machine


Technical parameters

1.Basic parameters:

1-1 Name and Model

A. Vacuum planetary mixer; B. Model Number: SXJ-10L

1-2 Basic structure

A. Electric pot body lifting type; B. Mixing + scraping

1-3 Barrel(Mixing barrel)

A. Specification: 380mm×280mm; B. Design volume: 13L

A. Material: SUS304. Three layers, electric heating with insulation layer

B. Mirror polished after turning of the inner wall to ensure good roundness;

C. The upper flange plane of the mixing tank and the upper tank body are sealed by a sealing ring;

Pure fixture direct cooling/heating

The water inlet and outlet ports are G1/4"

1-4 Upper barrel body (kettle cover)

A. Material: SUS304.

B. A Φ63 powder/liquid hopper, which can be quickly switched on and off; 1 spotlight; with 2 small windows (a spotlight port and an observation hole), a vacuum pressure gauge, and other necessary connections (vacuum/venting) /spare).

1-5 Mixing principle

The low-gap design of the double agitating paddles, no dead ends, and the strong kneading interference movement and the up-down/left-right cyclical movement of the low-speed paddles ensure that the materials are fully mixed.

1-6-1 Revolution/mixing motor and frequency converter, reducer

A. Quantity: one set;

B. Motor power: 1.1Kw/4P;

C. With a 2.2KW frequency converter matched with the motor.

D. The matching worm gear reducer RV090, the reduction ratio is about I=40.26, and the use coefficient fa=1.55.

1-6-2a Planetary revolution speed

Speed: 0~37 rpm, adjustable.

1-6-2b Scraper

Quantity: 1 set; wall scraping material: SUS304 and Teflon; consistent with the planetary revolution speed. ------- Based on design

1-7-1 Stirring shaft/stirring paddle speed

Speed: 0~95rpm, adjustable.

1-7-2 Stirring paddle

A. Material: SUS304; B. Quantity: two (groups).

1-7-3 Selection of stirring paddle form

A. Standard configuration: standard straight frame type;

B. spiral twist type;

C. multi-leaf staggered type; (configured according to customer process)

1-8-1 Dispersion motor

A. Quantity: one set;

B. Motor power: 2.2Kw/2P;

1-8-2 Dispersion rotating speed

A. Speed: 0~1450 rpm;

B. Linear speed: 0~23.5m/s.

1-8-3 Dispersing shaft and dispersing disc

A. Material: SUS304.

B. One to ensure better dispersion/stirring.

C. Diameter of the dispersion plate: Φ50mm.

1-9 Lifting

Electric lifting: lifting motor power 0.37KW; equipped with positioning device; positioning is safe and reliable.

Lifting height: ≤350.

1-10 Vacuum system

A. The stirring and dispersing process can be carried out under vacuum; vacuum degree: ≤-0.08Mpa.

B. Vacuum pump 2A, 0.37kw/4P motor.

C. With vacuum buffer tank and switch.

D-1. Dynamic seal: adopt mechanical seal; D-2. Static seal: adopt O-ring seal.

1-11 GPS

A. With positioning adjustment device and locking device, it can accurately position the mixing barrel and the upper barrel and prevent rotation.

B. The positioning stop of the lower flange of the upper barrel body is precisely matched with the mixing barrel to ensure that the position of the mixing barrel is reasonable and the positioning is accurate.

1-12 Distribution Cabinet

The function display and operation of the vacuum device, frequency conversion speed regulation, temperature display (control), spotlight, lifting, and emergency stop during the operation of the equipment are all carried out on the power distribution cabinet.

Remarks: Both dispersion and stirring have timing functions.

1-13 Safery operation

A. Relying on the frequency converter and the limit travel switch, through the specially designed control route, it is guaranteed that the pot body will stop automatically after it rises to the specified position.

B. During the ascending process of the pot body, the stirring and dispersing part of the equipment cannot start operation; similarly, when the machine is running the mixture, the upper barrel body cannot be raised, and the mixing barrel cannot be opened.

C. The special vacuum buffer tank design can effectively prevent the vacuum pump oil from returning to the mixing barrel.

1-14 Temperature measurement method

0-199℃, the temperature probe is located on the wall of the barrel near the bottom of the barrel, and is in direct contact with the material.

1-15 Total power of host: 5KW

Working voltage: three-phase 380V

1-16 Dimensions: L1100*W700*H1750

Weight: about 320KG
