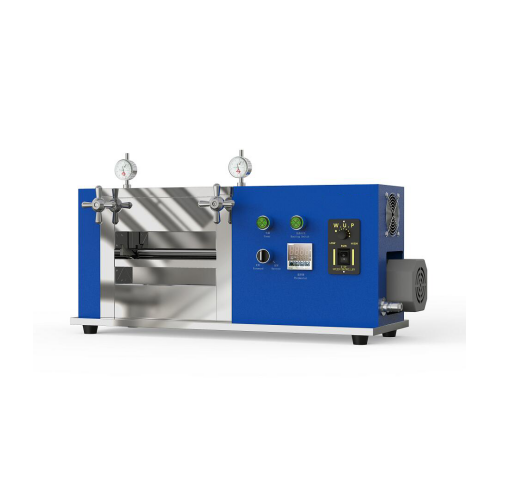

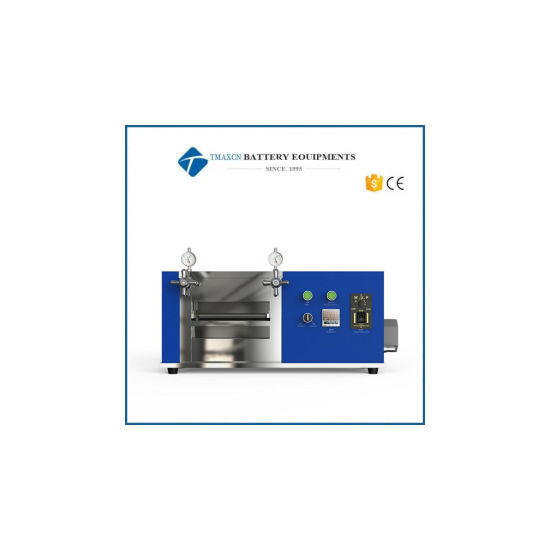

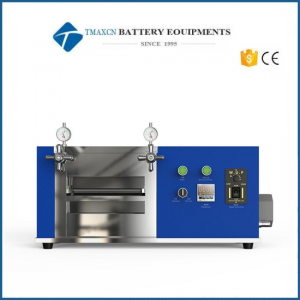

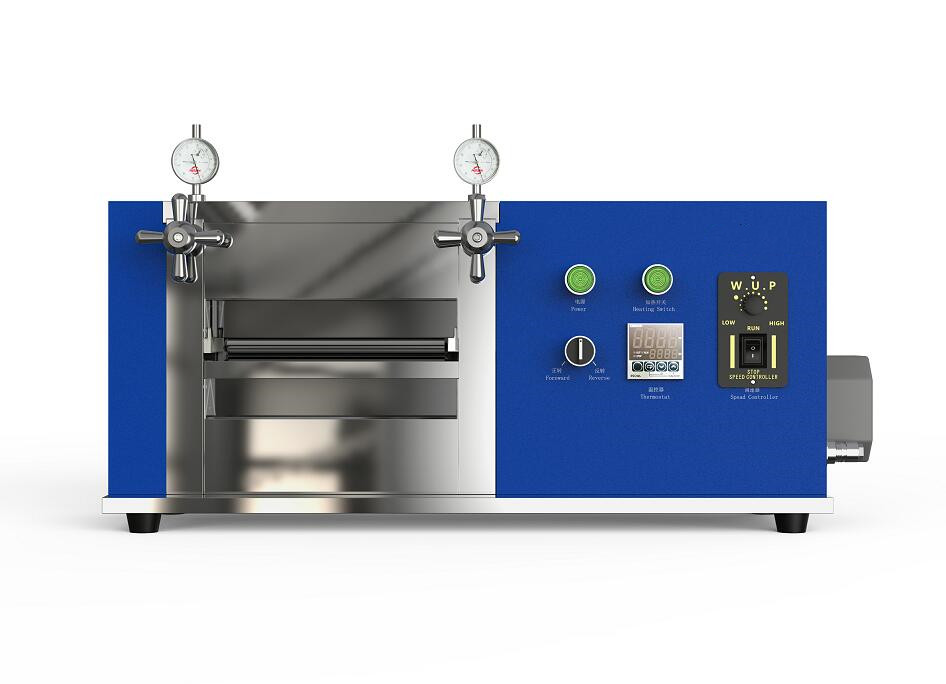

130'C Hot rolling press machine for coin cell laboratory researching

  • Model Number:

    TMAX-JS
  • Dimension(L*W*H):

    390*250*356mm(L*W*H)
  • Net Weight:

    55kg(180lbs)
  • Warranty:

    One year warranty,one stop service,provide full solutions
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Small Hot Rolling press machine for lithium ion battery laboratory


1.Used in lithium battery material,metal in Lab

2.Easy to operate

3.One year warranty,one stop service,provide full solutions


TMAX-JS Hot rolling machine is mainly applied to laboratory battery materials, a small amount of gold and silver and other precious metals, copper and other nonferrous materials at a certain temperature, electric hot rolling, rolling thickness adjustable, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.



 SPECIFICATIONS:

 Hot press machine for lithium ion battery

ITEM

Unit

Data

Size(L*W*H)

mm

390x250x356

Weight

kg

55

Roll Width

mm

100

Hot rolling width

mm

100

Calendering thickness

mm

0~2

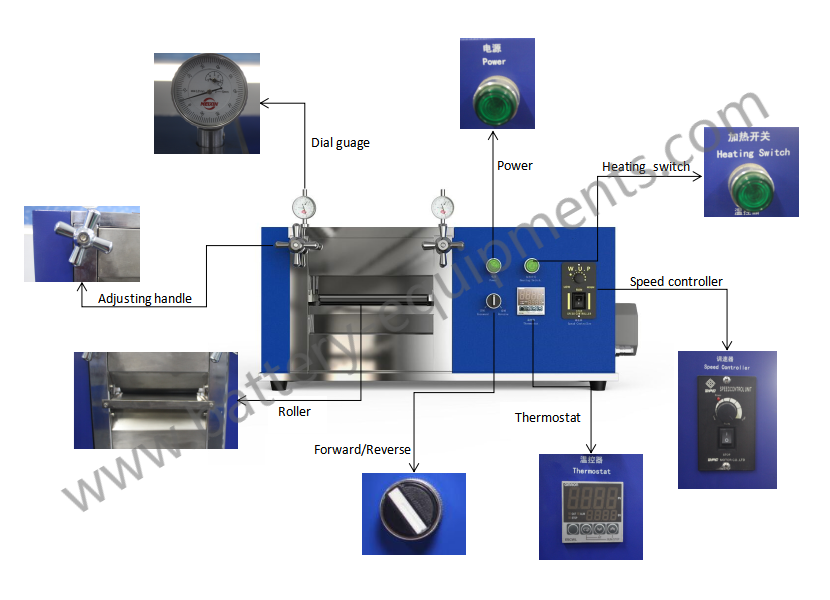

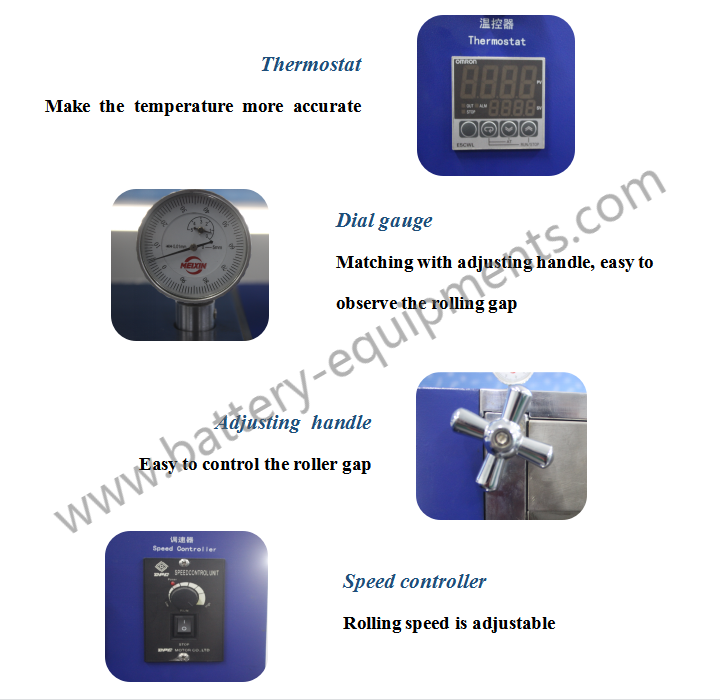

Dial Gauge Accuracy

mm

0.01

Rolling Speed

mm/sec

0~10

Roller Surface Max. Tem

°C

130

Surface hardness of rollers



HRC60-62

Total Power



AC220V,720W
